SIP 06537 RS22-10-500BD/FF Rotary Screw Compressor | Poolewood
Original price was: $301.00.$99.99Current price is: $99.99.
Technical Description:
| ITEM NO. | 06537 |
| Input Supply: | 400v (50A) 3-PHASE |
| Motor Power: | 22kW (29.50hp) |
| Receiver Size: | 500ltr |
| Free Air Delivery (FAD): | 106.00CFM (3002ltr/min) |
| Max. Air Pressure: | 145psi (10bar) |
| Filtration Level: | 10µm particulate 1µm oil filter |
| Refrigeration Dryer: | 3°C Dew Point |
| Air Quality Level: | 2-4-2 (ISO 8573-1*) |
| Noise Level: | 71dB(A) |
| Net Weight: | 599.00kg |
| Gross Weight: | 613.50kg |
| Product Dimensions: | 1670(H) x 700(W) x 1980mm(D) |
| Packaged Dimensions: | 1800(H) x 775(W) x 2000mm(D) |
- No Compromise on Quality
- The home of quality products.
- Shop with confidence, we guarantee quality.
- Safe Transactions, Happy Customers

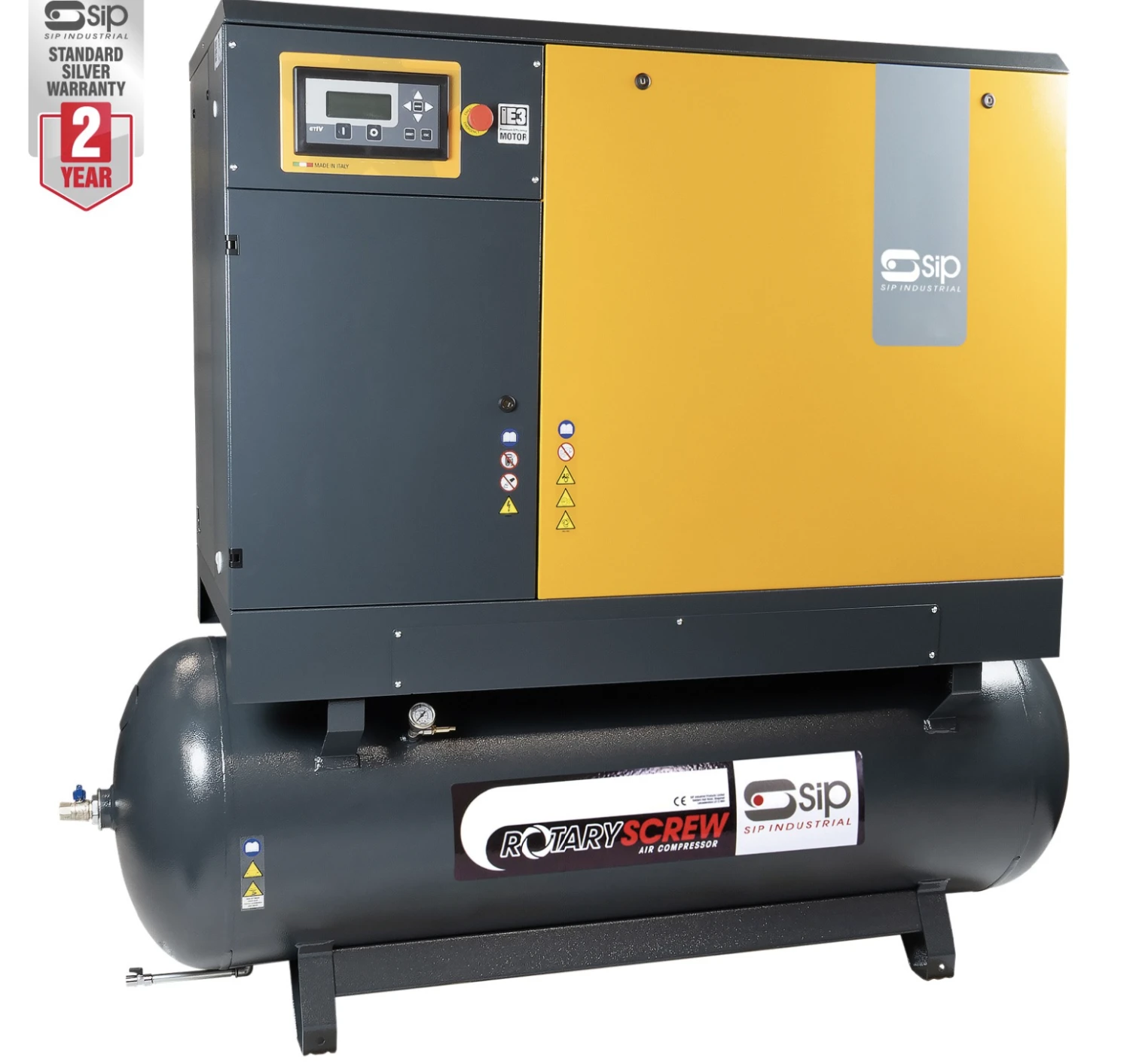

SIP 06537 RS22-10-500BD/FF Rotary Screw Compressor
The SIP 06537 RS22-10-500BD/FF Rotary Screw Compressor is an all-in-one and space-saving workstation that offers very high-quality, clean, and dry compressed air via a generously-sized dryer.
- 400v (50A) 3-PHASE input supply
- 500ltr large receiver; 145psi (10bar) max. pressure
- 106.00CFM (3002ltr/min) max. free air delivery (FAD)
- Powerful 22kW (29.50hp) motor for high performance
- High-quality and dry air provided by a generous dryer
- All-in-one and easy-to-use workstation; quiet operation,
compact and modern design; ideal for continuous use - Air end, dryer, filters, controller, and receiver housed
in a single modular unit; an easy space-saving solution - Dry tank technology; constant airflow, reduced corrosion
- Automatic condensate discharge and status via panel
- Offers easy access for servicing and maintenance
- Drastically reduced installation time and cost
- Fully automatic, integrated, self-monitoring
- Made in Italy / 2 year warranty
Don’t forget your Anti-Vibration Mounts!
The installation of this item has to be right. SIP have produced Site Survey Self Assessment Installation Guidelines, these include maintenance options. If interested in a screw compressor, please contact us via telephone or email us at [email protected] and we can send you these guidelines or you can click on the link to the PDF below.
SITE SURVEY SELF ASSESSMENT FORM. Version 4 (June 2019)
SIP are machinery specialists with product ranges featuring welding, metalwork, air compressors and tools, battery chargers, lifting, heating, power, woodworking, and cleaning equipment.
