Technical Description:


ITEM NO.	06337
Input Supply	400v (40A) 3-PHASE
Motor Power:	20hp (15kW) IE3
Receiver Size:	500ltr
Controller Type:	ETM II
Starter System Type:	Star Delta
Free Air Delivery (FAD):	53.00CFM (1501ltr/min)
Max. Air Pressure:	189psi (13bar)
Connection Size:	3/4″
Noise Level:	70dB(A)
Net Weight:
Gross Weight:	397.00kg
Product Dimensions:
Packaged Dimensions:	1850(H) x 2065(W) x 800mm(D)

No Compromise on Quality

The home of quality products.

Shop with confidence, we guarantee quality.

Safe Transactions, Happy Customers

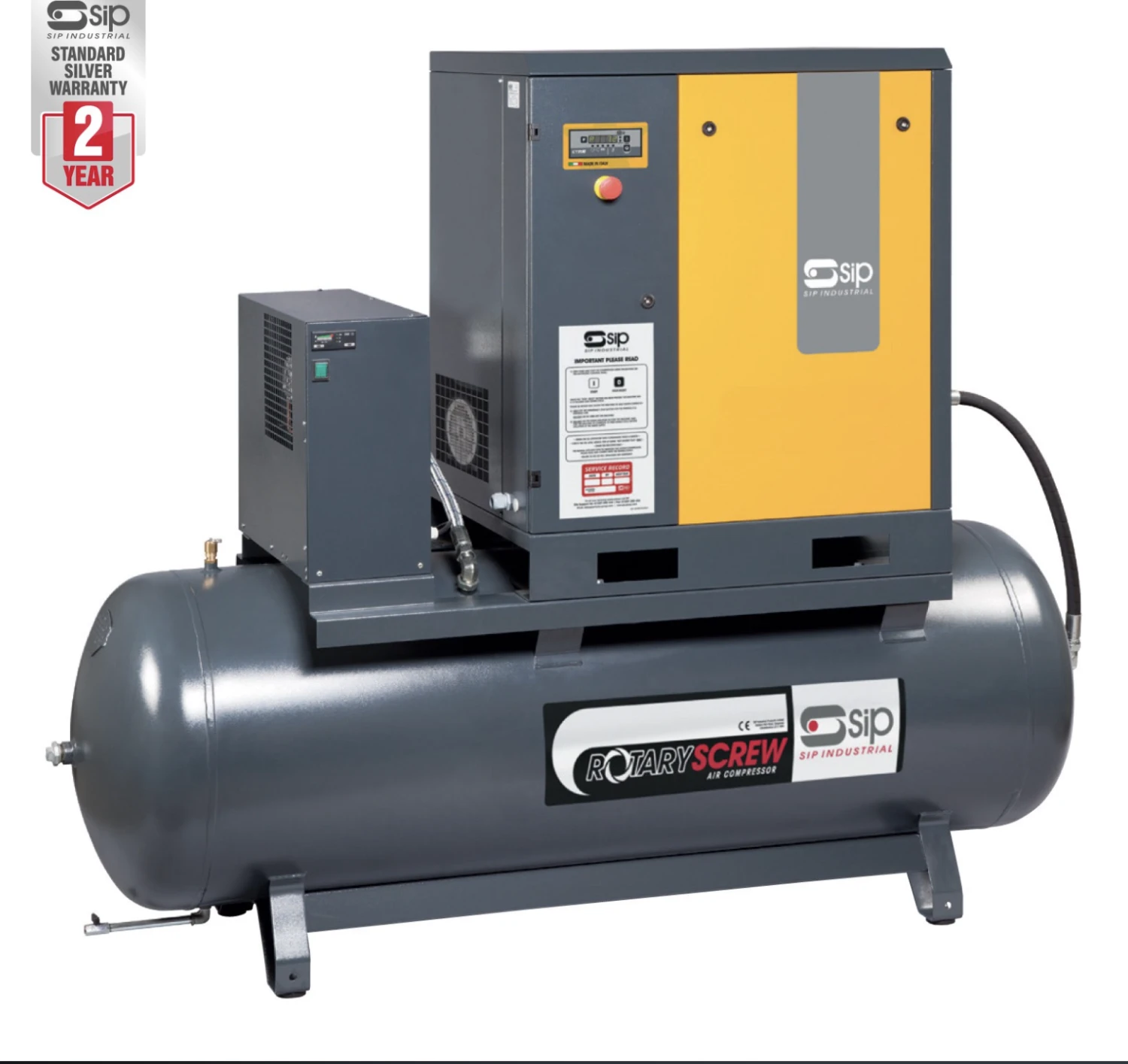

SIP 06337 RS15-13-500BD Rotary Screw Compressor

The SIP 06337 RS15-13-500BD Rotary Screw Compressor has an IE3 motor for reduced costs and lower CO2 emissions, offering high performance whilst having 95% efficiency and 100% duty cycle.

400v (40A) 3-phase input supply
500ltr receiver; 189psi (13bar) max. pressure
53CFM (1501ltr/min) max. free air delivery (FAD)
20hp (15kW) IE3 motor with Italian-made air ends
for constant airflow, reduced costs and CO2 emissions
Electronic control; digital display showing main unit
measurement, including hours, pressure, temperature
POLY-V belt-driven transmission for lower power losses
Silenced cabinet enclosure; helps maintain the internal
temperature and reduce overall noise levels; 70dB(A)
Heavy-duty cooling fan; maintains 100% duty cycle
Front and rear access panels for easy maintenance
High 95% efficiency and 100% duty cycle
100% UK tested before dispatch
Made in Italy / 2 year warranty

Don’t forget your Anti-Vibration Mounts!

The installation of this item has to be right. SIP have produced Site Survey Self Assessment Installation Guidelines, these include maintenance options. If interested in a screw compressor, please contact us via telephone or email us at [email protected] and we can send you these guidelines or you can click on the link to the PDF below.

SITE SURVEY SELF ASSESSMENT FORM. Version 4 (June 2019)
