Technical Information

ITEM NO.	05815
Input Supply:	230v (13A)
Motor Power:	1.1kW (1.5hp)
Max. Flow Rate:	163mtr³/hr
Filtration Level:	99.5%
Hose Length:	2mtr
Noise Level:	73dB(A)
Net Weight:	18kg
Gross Weight:	19kg
Product Dimensions:	310(H) x 300(W) x 570mm(D)
Packaged Dimensions:	360(H) x 360(W) x 710mm(D)

No Compromise on Quality

The home of quality products.

Shop with confidence, we guarantee quality.

Safe Transactions, Happy Customers

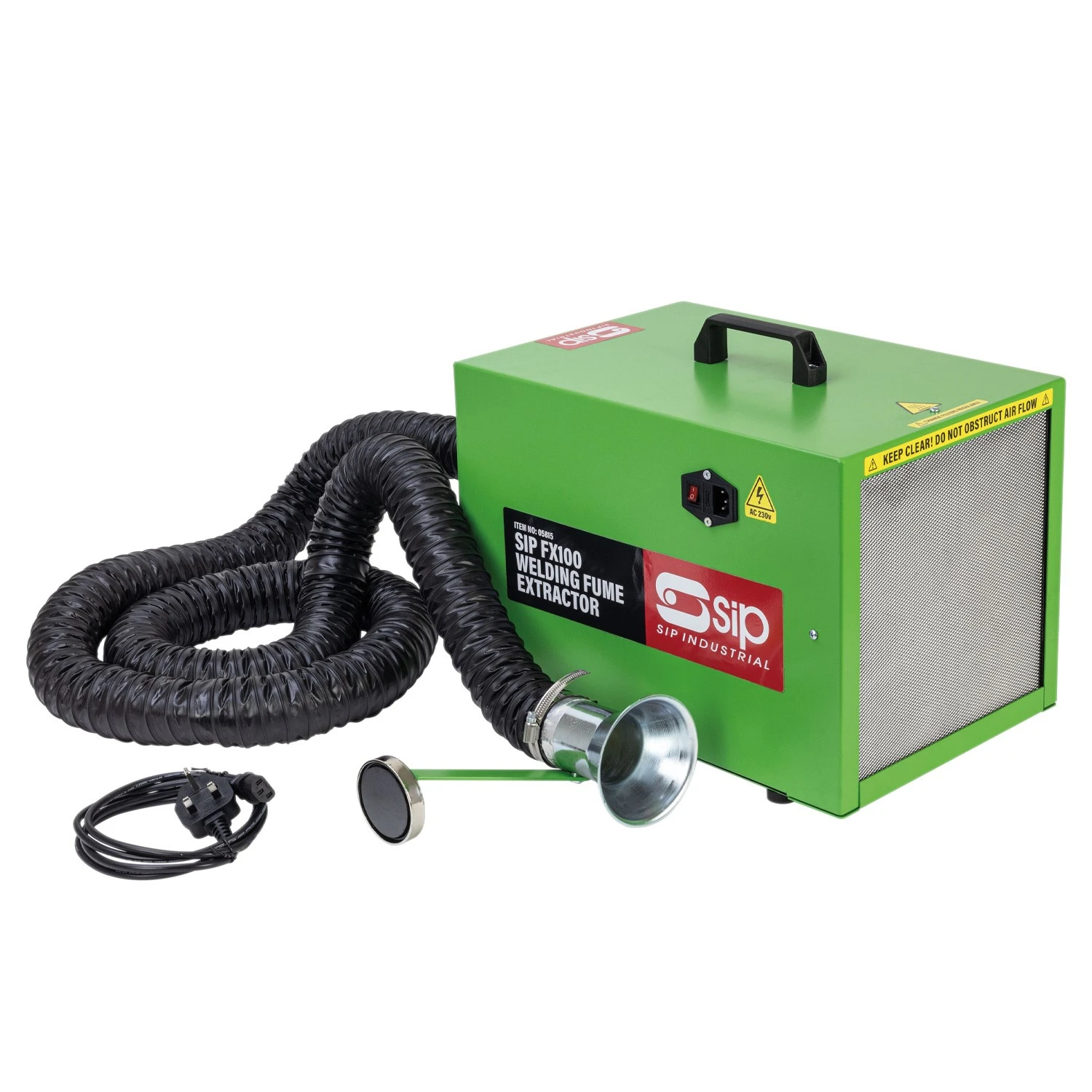

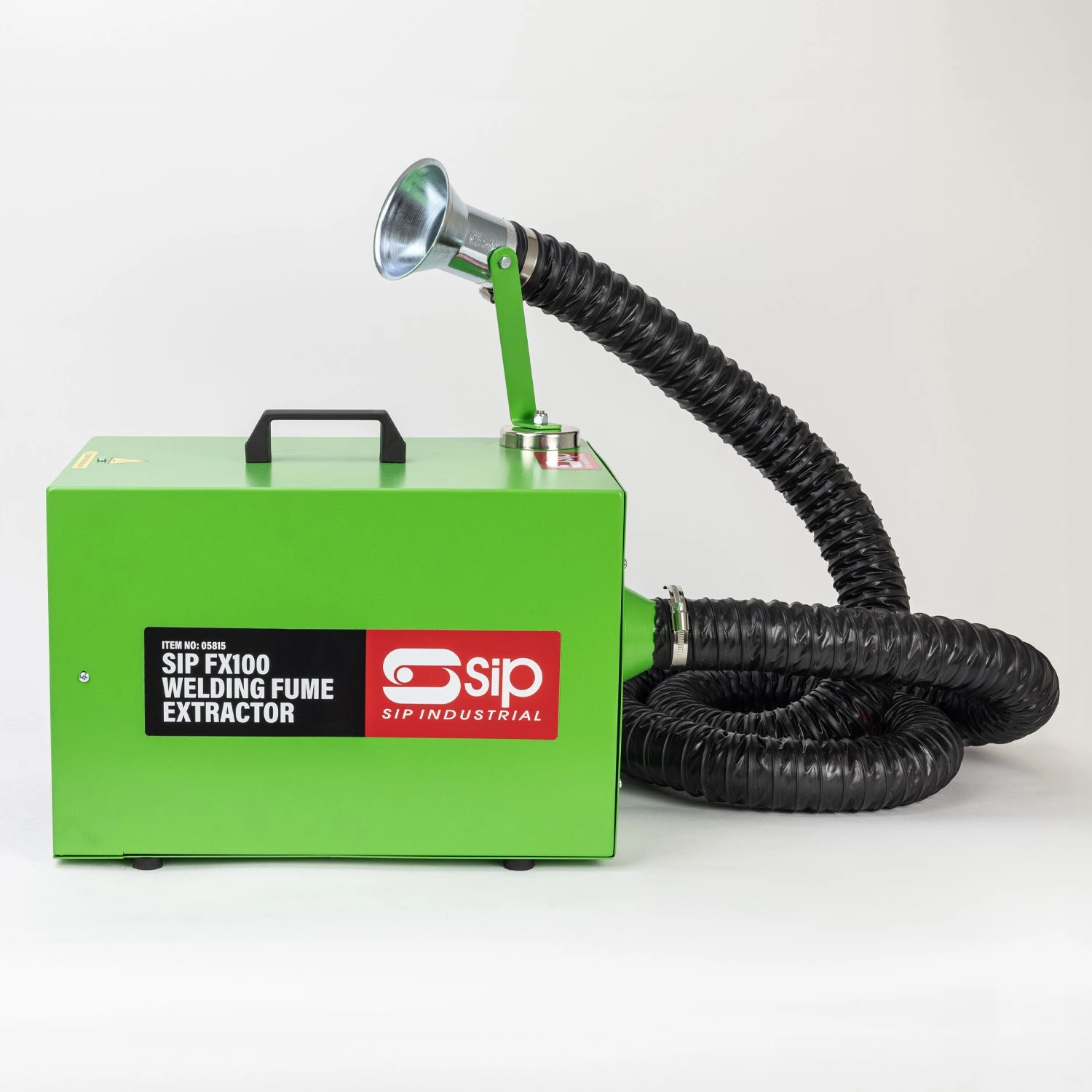

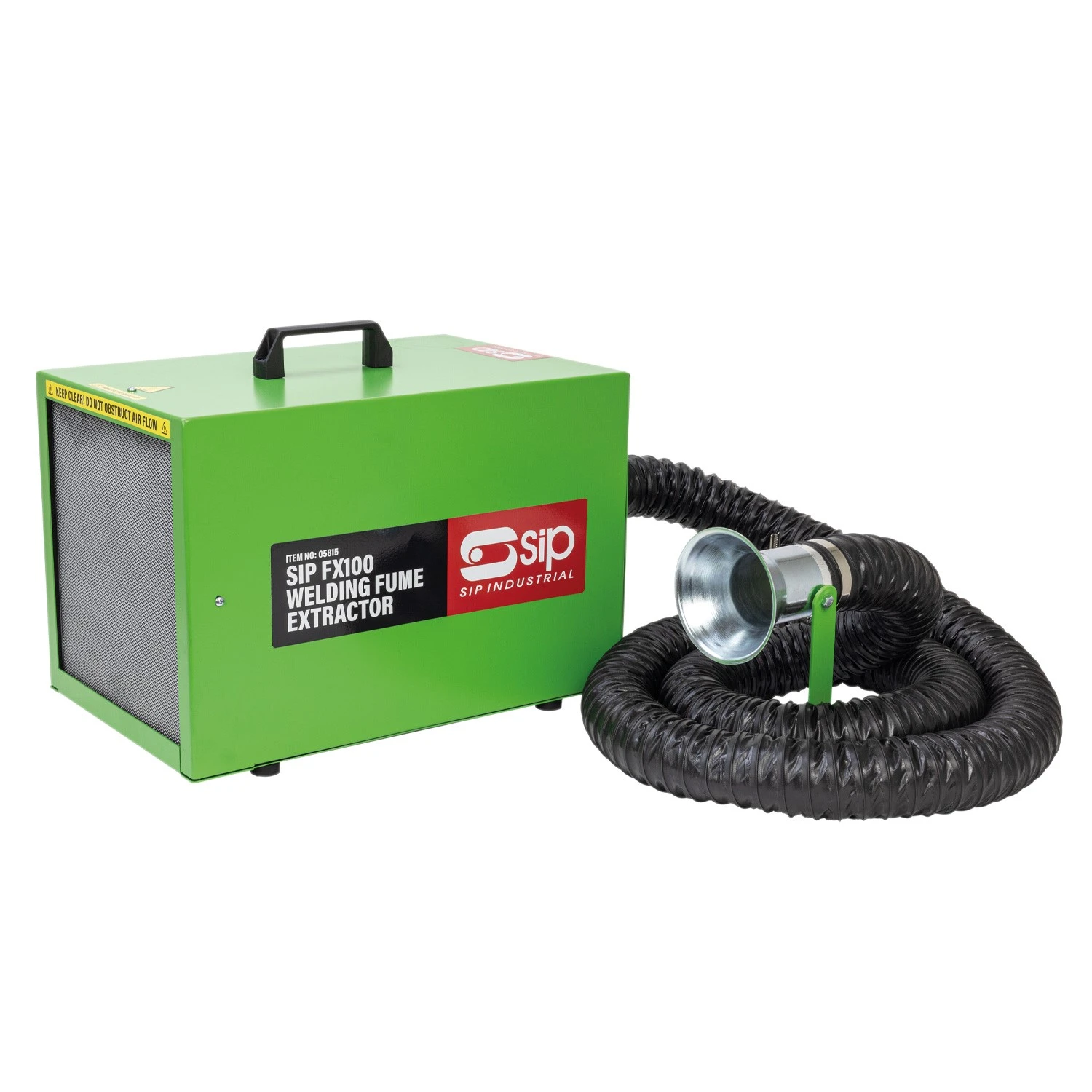

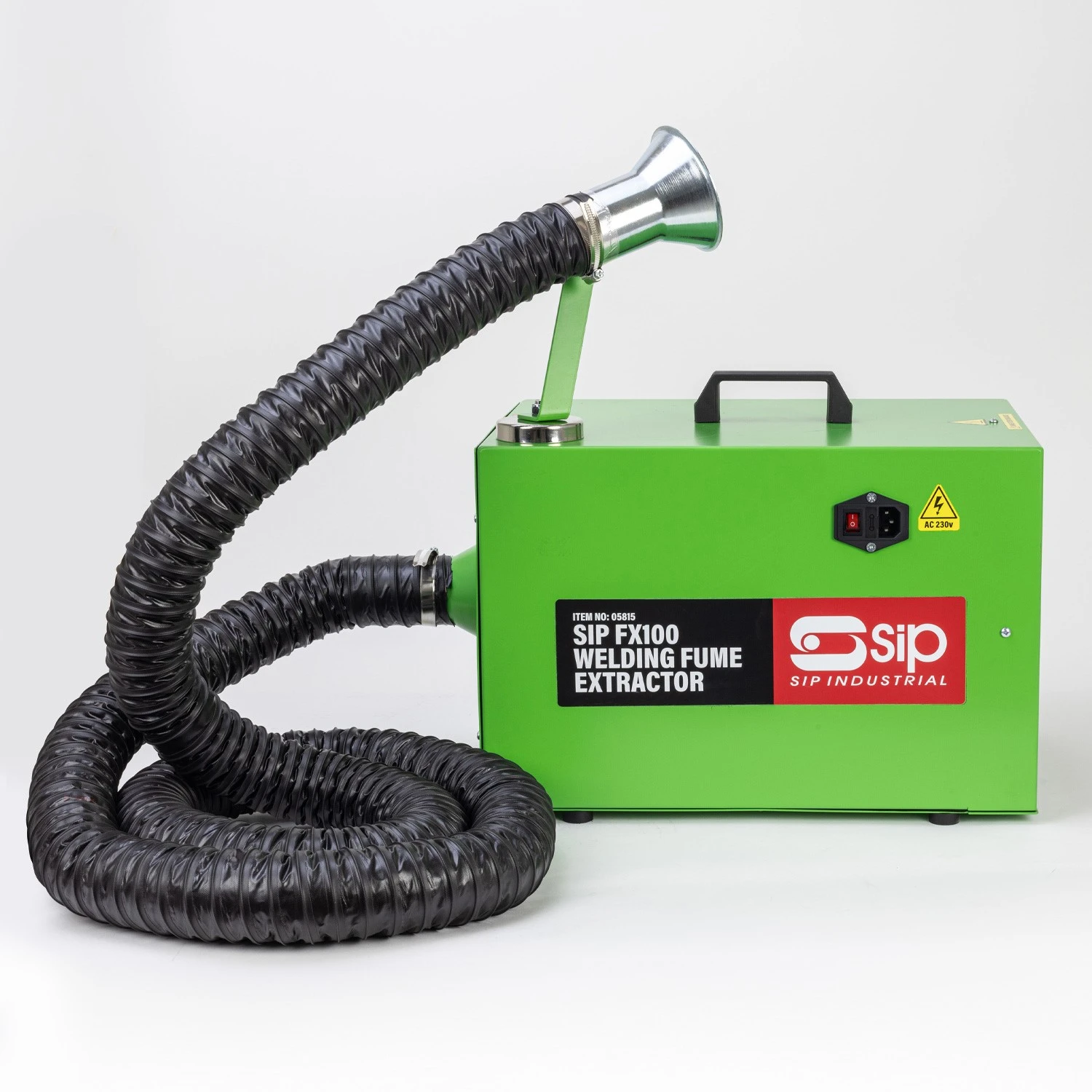

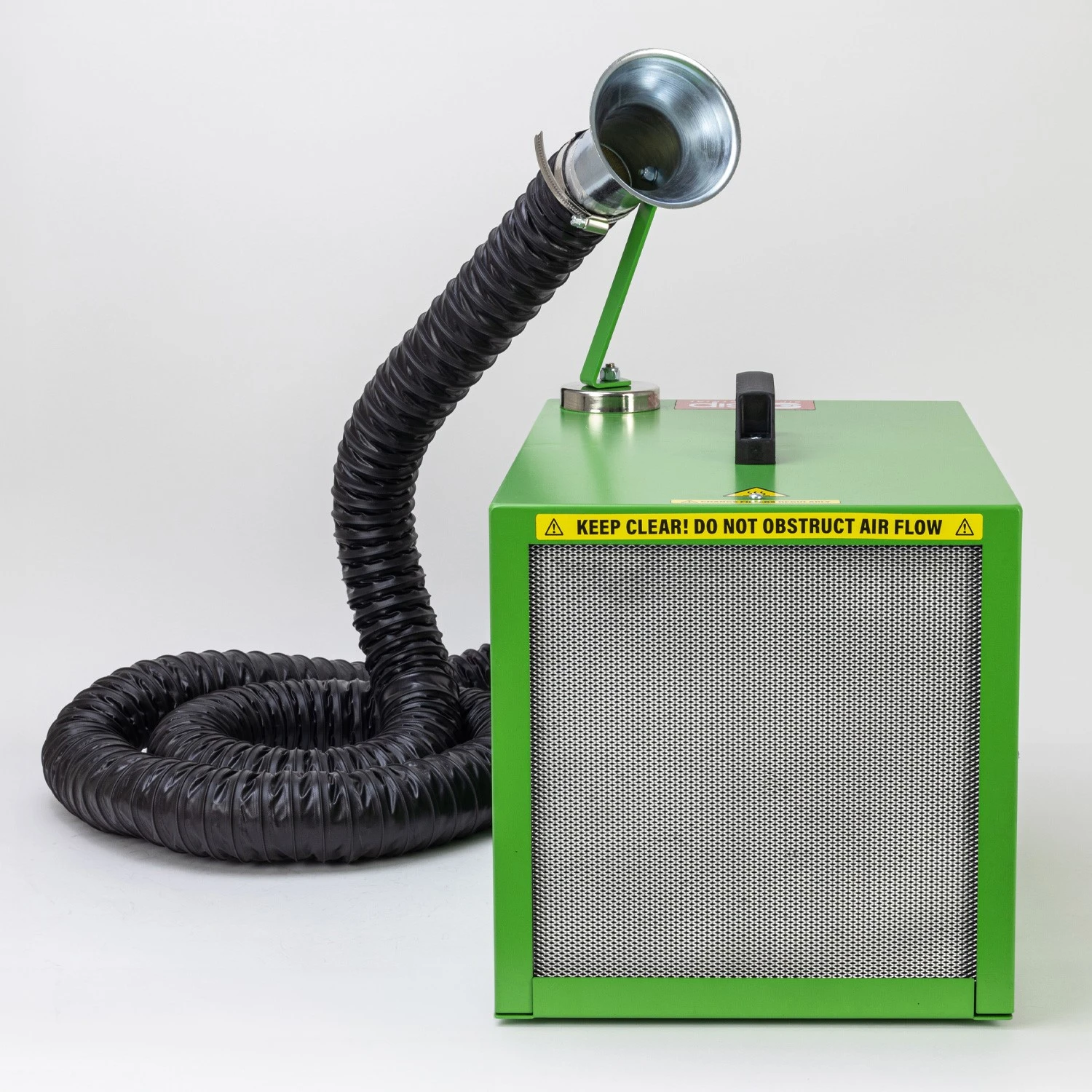

SIP 05815 FX100 Welding Fume Extractor

The SIP 05815 FX100 Welding Fume Extractor is a powerful and portable fume extractor designed to capture low to mid-level concentrates of welding fume pollutants. Suitable for welding stations, automotive settings and small workshops.

Featuring a powerful 3-stage filtration system and fitted with a 2mtr reinforced suction hose and large magnetic suction hood, the FX100 filters 99.5% of sparks, spatter and dust as well as harmful fumes and gases.

This supports HSE requirements for handling weldable materials, which helps to reduce exposure to hazardous pollutants and improve work area air quality.

KEY FEATURES

3-stage filtration system captures 99.5% of welding fume pollutants
High 163mtr³/hr max. flow rate for low to mid-level concentrates
2mtr suction hose with reinforced steel helix for strength under suction
Large magnetic and tilt-adjust suction hood helps to capture fumes
Strong grip carry handle for portability around the work area

Full Specification

The SIP 05815FX100 Welding Fume Extractor is a powerful and portable fume extractor designed to capture low to mid-level concentrates of welding fume pollutants. Suitable for welding stations, automotive settings and small workshops.

This supports HSE requirements for handling weldable materials, which helps to reduce exposure to hazardous pollutants and improve work area air quality.

Applications & uses: Ideal for welding stations, automotive settings and small workshops. Designed for low to mid-level concentrates of welding fume pollutants.

SIP 2-Year Standard Silver Warranty* | Find out more

99.5% FILTRATION OF HAZARDOUS POLLUTANTS USING A 3-STAGE INTERNAL FILTRATION SYSTEM

STAGE 1; MESH SPARK ARRESTOR: Captures larger particles including sparks and spatter, preventing them from reaching and damaging next-stage filters.
STAGE 2; CYLINDER CARTRIDGE FILTER: Filters dust and fumes generated during the welding process to improve work area air quality.
STAGE 3: CARBON FILTER:This final stage removes fume odours through absorption to maximise the filtration process.
Replacement cartridge and carbon filters are available. Replacing them will maximise the performance and workign life of the machine.

SIP Cylinder Cartridge Filter (WE08-00052)
SIP Carbon Filter (WE08-00053)
SIP Cylinder Cartridge & Carbon Filter Kit (WE08-00057)

HIGH MAX. FLOW RATE OF 163MTR³/HR USING A POWERFUL 1.1KW MOTOR FOR RELIABLE & CONSISTENT PERFORMANCE

Designed to capture low to mid-level concentrates of welding fume pollutants. Operates from a 13A supply for ease-of-use.

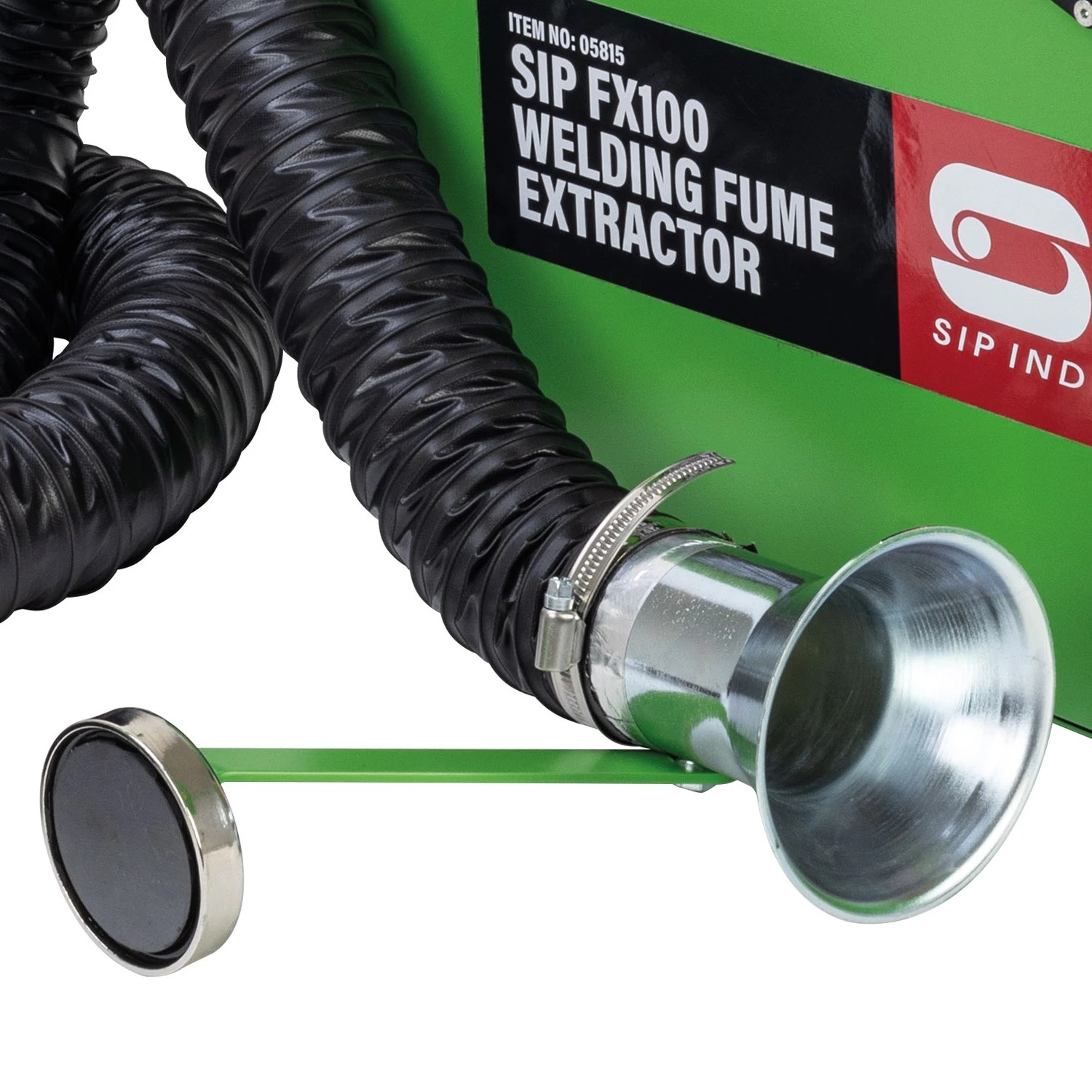

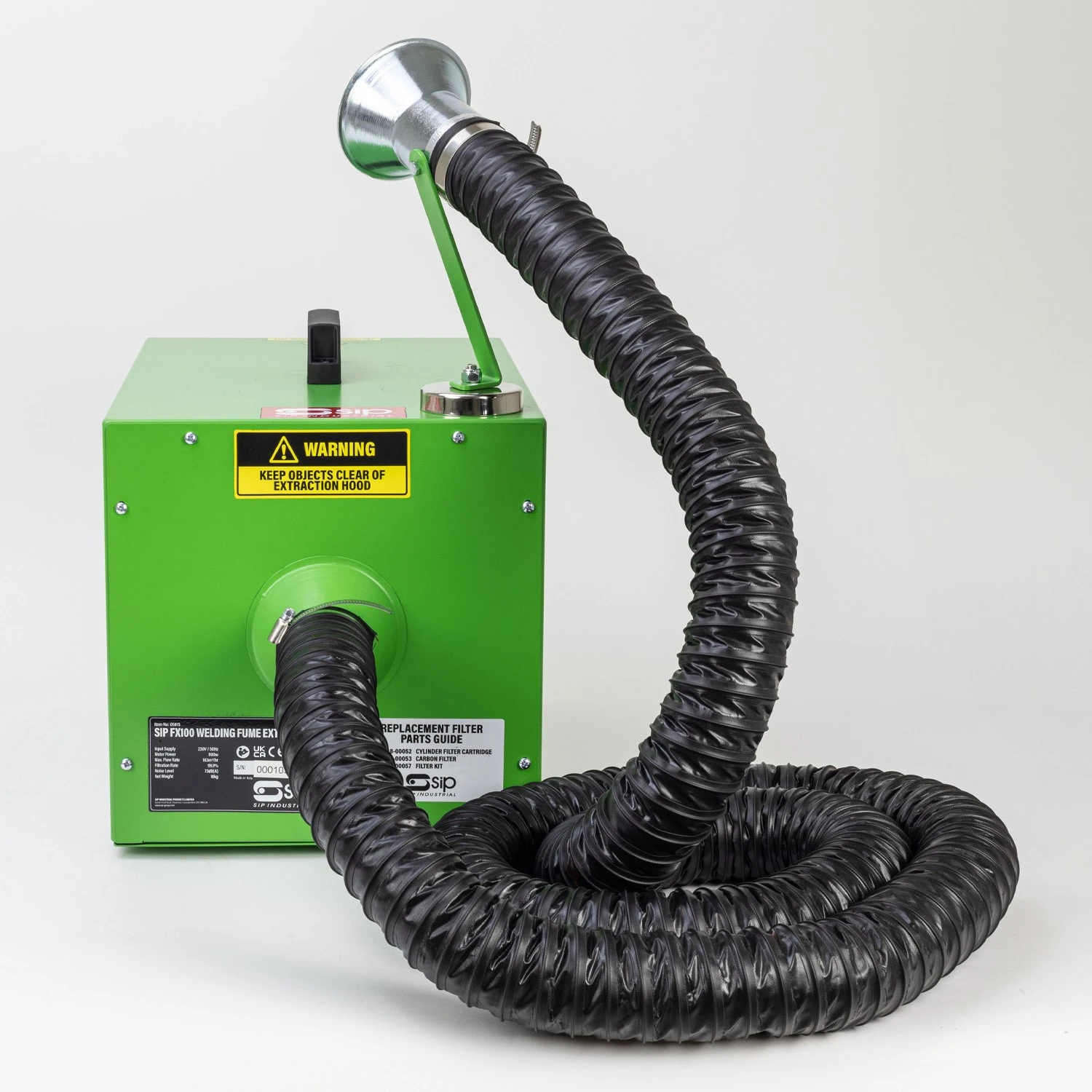

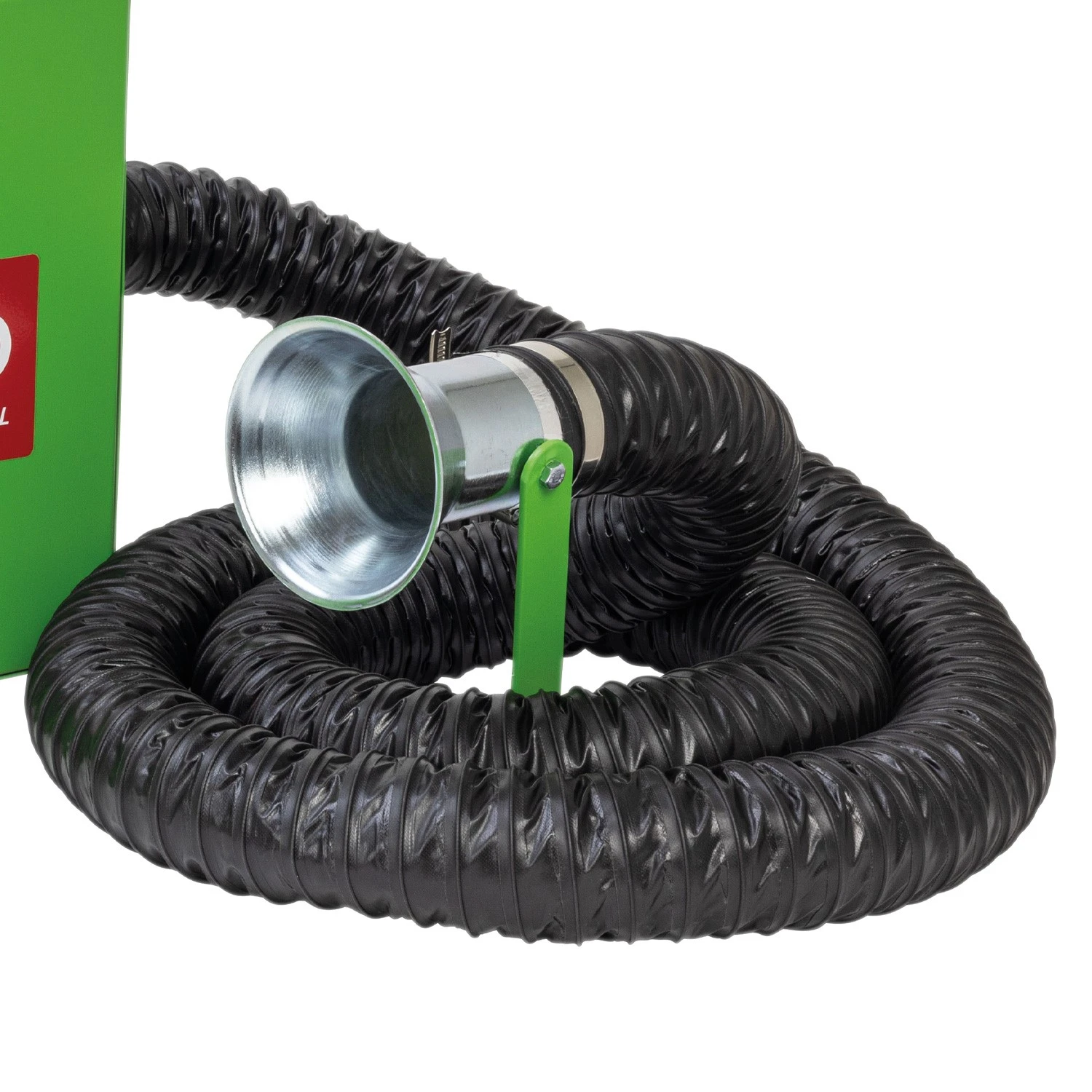

2MTR HEAVY-DUTY HOSE WITH LARGE MAGNETIC & TILT-ADJUST SUCTION HOOD HELPS TO CHANNEL & CAPTURE HARMFUL FUMES AWAY FROM AREA

Heavy-duty hose reinforced with a steel helix for greater strength and to prevent collapsing under suction.
Large magnetic and tilt-adjust suction hood helps to channel and capture harmful fumes.

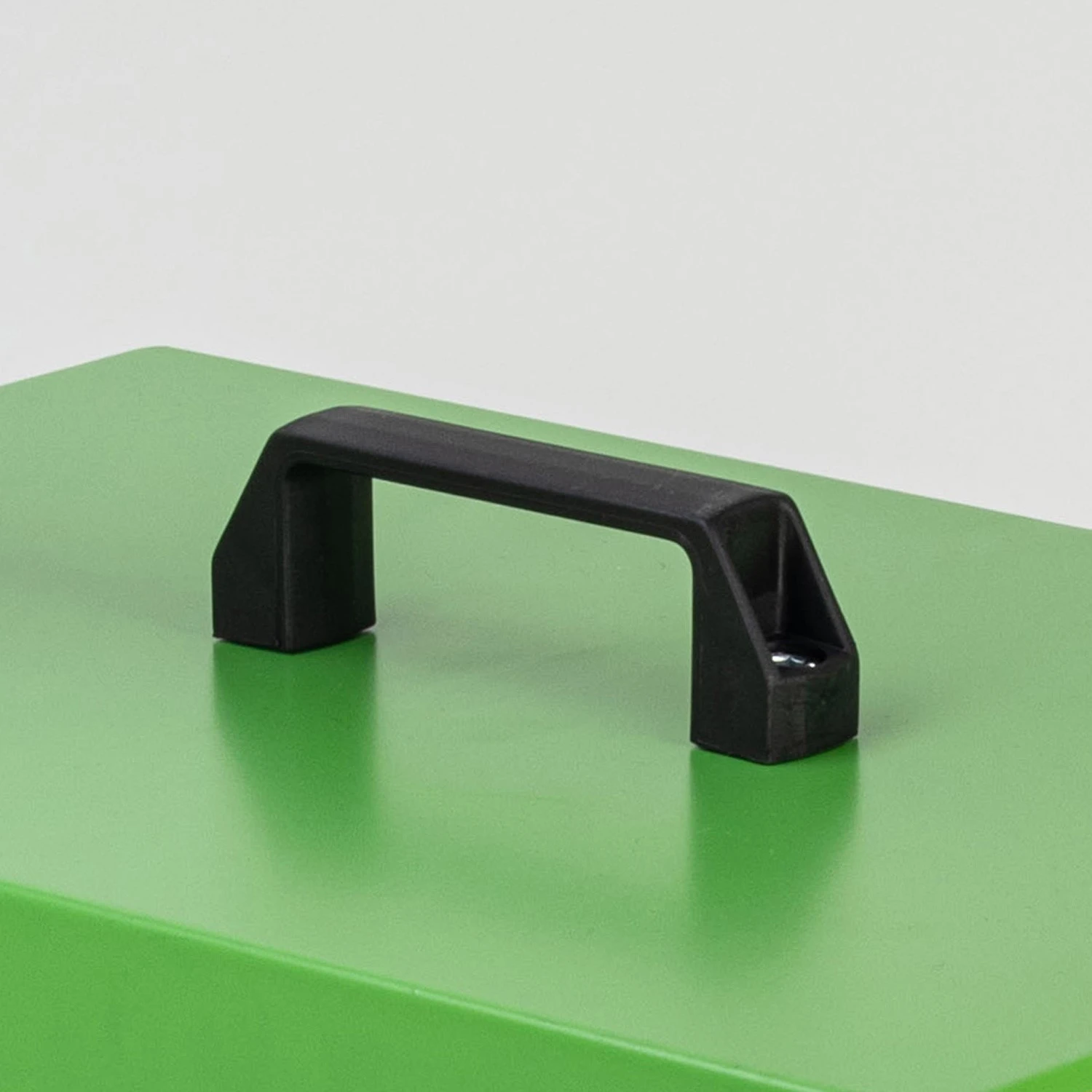

FITTED WITH STRONG GRIP CARRY HANDLE FOR EASY MOVEMENT AROUND THE WORK AREA
