Technical Information

ITEM NO.	05814
Input Supply:	230v (13A)
Motor Power:	1.5kW (2hp)
Max. Flow Rate:	2500mtr³/hr
Filtration Level:	99.97%
Hose Length:	2mtr
Noise Level:	75dB(A)
Net Weight:	70kg
Gross Weight:	84kg
Product Dimensions:	2100(H) x 550(W) x 550mm(D)
Packaged Dimensions:	980(H) x 575(W) x 580mm(D) (P1) 1165(H) x 340(W) x 550mm(D) (P2)

No Compromise on Quality

The home of quality products.

Shop with confidence, we guarantee quality.

Safe Transactions, Happy Customers

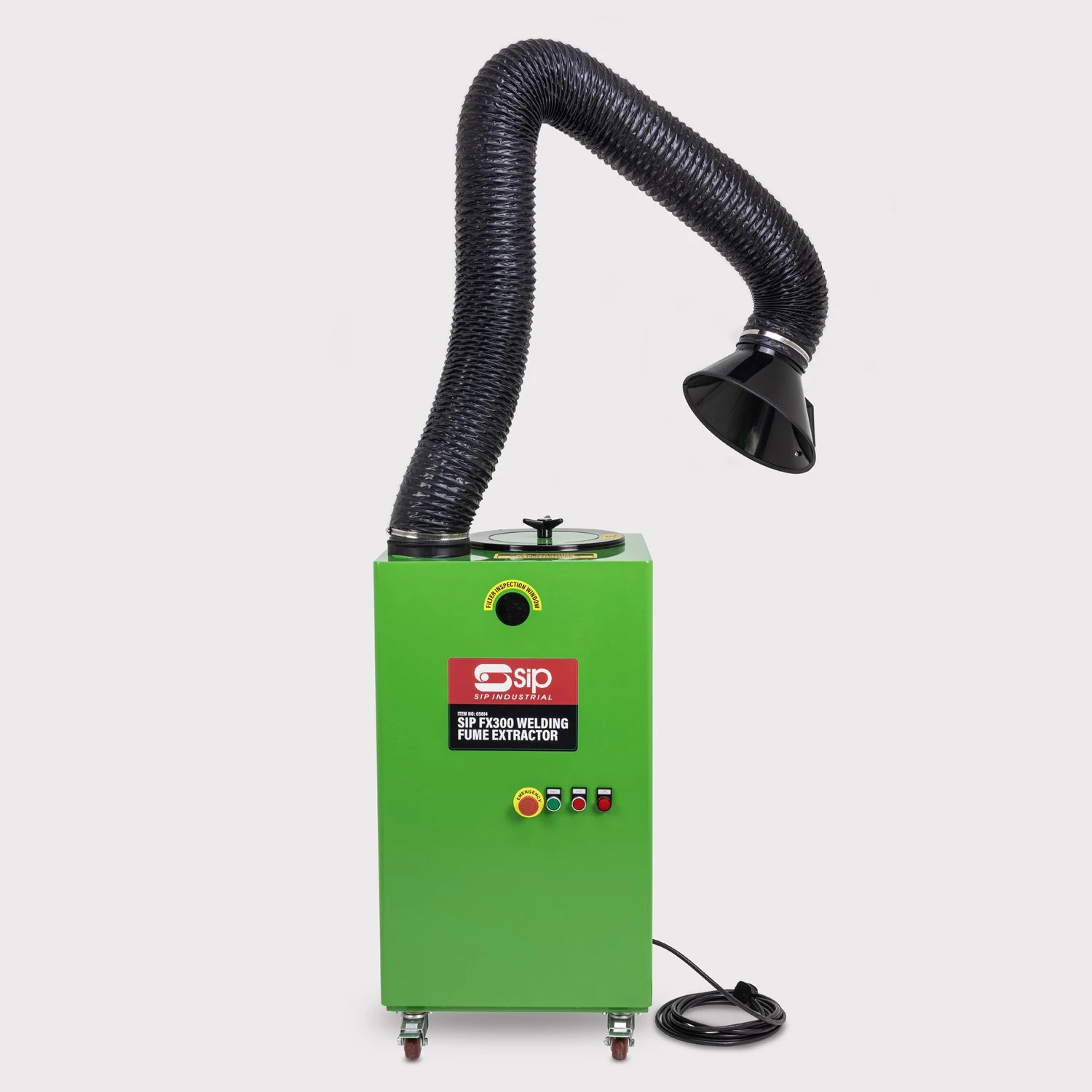

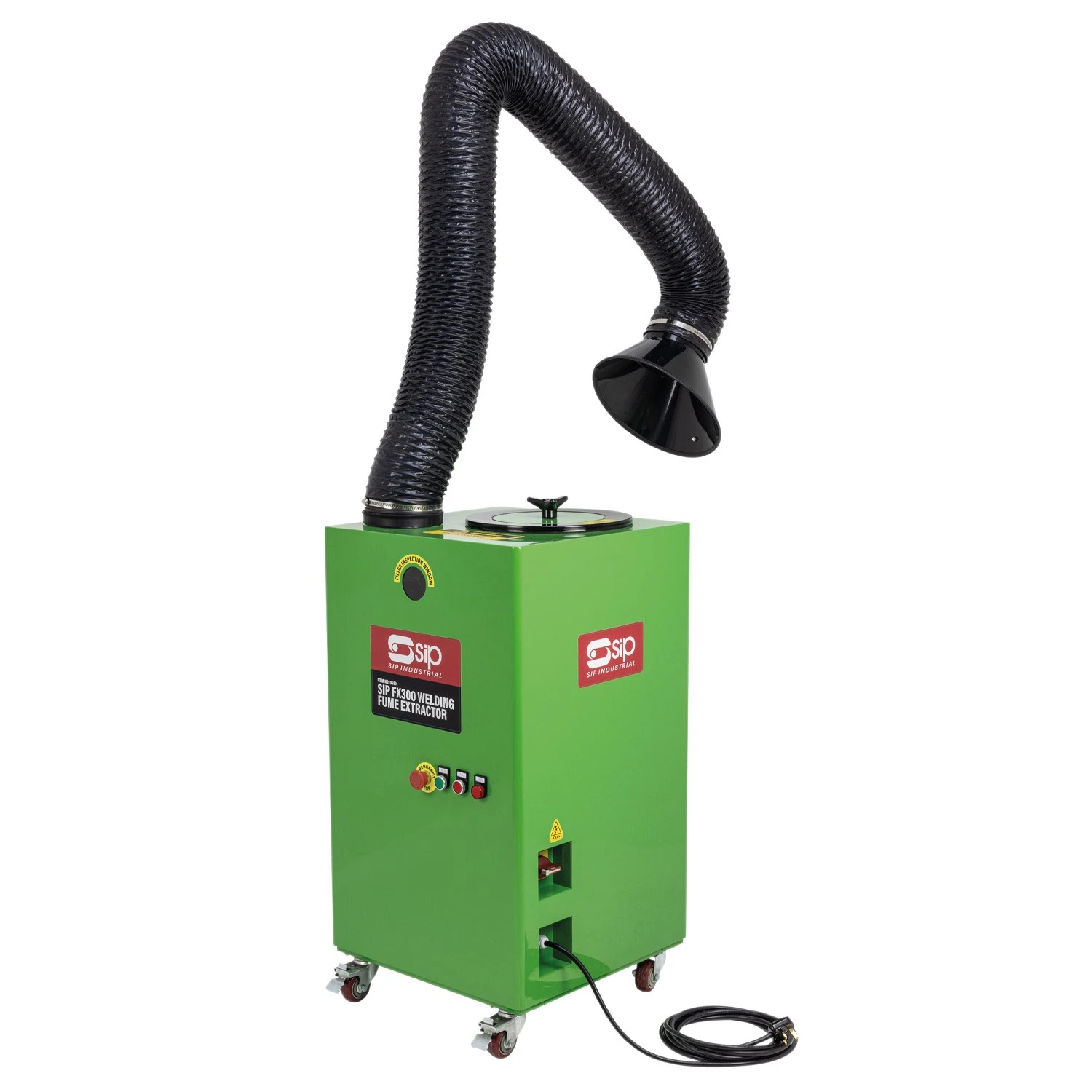

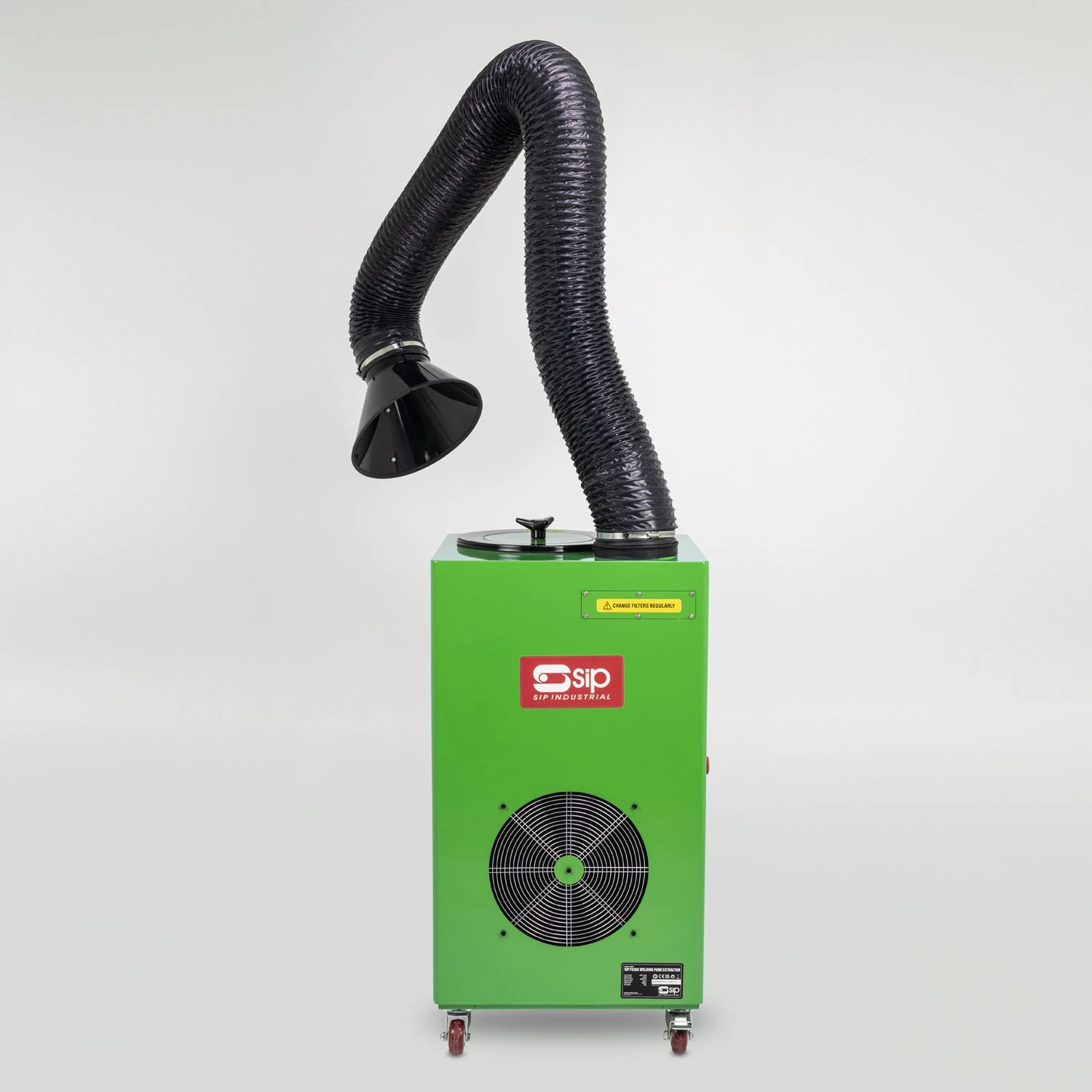

SIP 05814 FX300 Welding Fume Extractor

The SIP 05814 FX300 Welding Fume Extractor is a powerful and portable fume extractor designed to capture high-level concentrates of welding fume pollutants. Suitable for large fabrication workshops, welding stations and automotive settings.

Featuring a 3-stage H13 filtration system and fitted with a 2mtr flexible arm suction hose, the FX300 filters 99.97% of sparks, spatter and dust as well as harmful fumes and gases.

This supports HSE requirements for handling weldable materials, which helps to reduce exposure to hazardous pollutants and improve work area quality.

KEY FEATURES

3-stage filtration system captures 99.97% of welding fume pollutants
High 2500mtr³/hr max. flow rate for high-level concentrates
2mtr flexible arm suction hose helps channel and capture harmful fumes
Small physical footprint minimises lost work area space
Extra-long 5mtr mains cable for added flexibility
Fitted with lockable castors for easy mobility

SIP 2-Year Standard Silver Warranty*

Full Specification

The SIP 05814 FX300 Welding Fume Extractor is a powerful and mobile fume extractor designed to capture high-level concentrates of welding fume pollutants. Suitable for large fabrication workshops, welding stations and automotive settings.

Featuring a 3-sage H13 filtration system and fitted with a 2mtr flexible arm suction hose, the FX300 filters 99.97% of sparks, spatter and dust as well as harmful fumes and gases.

This supports HSE requirements for handling weldable materials, which helps to reduce exposure to hazardous pollutants and improve work area air quality.

Applications & uses: Ideal for large fabrication workshops, welding stations and automotive settings. Designed for high-level concentrates of welding fume pollutants.

SIP 2-Year Standard Silver Warranty* | Find out more

99.97% FILTRATION OF HAZARDOUS POLLUTANTS USING A 3-STAGE INTERNAL FILTRATION SYSTEM, INCLUDING HIGH EFFICIENCY PARTICULATE AIR (H13) FILTER WHICH CAPTURES PARTICLES DOWN TO 0.3 MICRONS

STAGE 1: MULTI-LAYER SPARK ARRESTOR: Captures larger particles including sparks and spatter, preventing them from reaching and damaging next-stage filters.

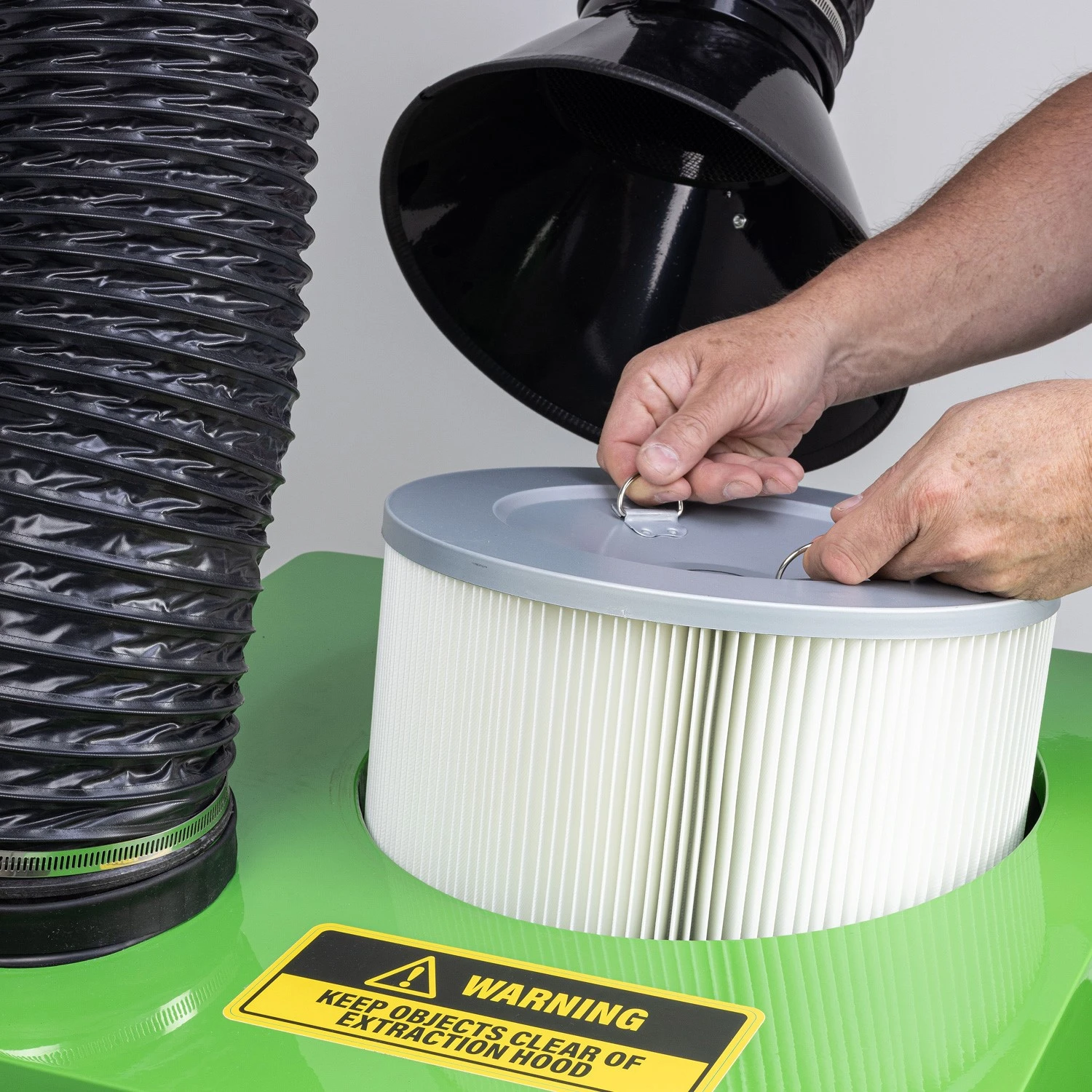

STAGE 2: HIGH EFFICIENCY PARTICULATE AIR (H13) FILTER: This second stage process filters finer airborne particles down to 0.3 microns, maximising the effectiveness of the filtration process.
STAGE 3: ACTIVATED CARBON COTTON FILTER: This final stage process removes fume odours through absorption to maximise the filtration process.
Replacement filters and multi-layer spark arrestor are available. Replacing them will maximise the performance and working life of the machine.

SIP Multi-Layer Spark Arrestor (WE08-00146)
SIP High Efficiency Filter (WE08-00142)

HIGH MAX. FLOW RATE OF 2500MTR³/HR USING A POWERFUL 1.5KW BRUSHLESS INDUCTION MOTOR FOR RELIABLE & CONSISTENT PERFORMANCE

Designed to capture high-level concentrates of welding fume pollutants. Features brushless induction motor for greater efficiency and low maintenance use.
Fitted with an extra-long 5mtr mains cable for added flexibility. Operates from a 13A supply for ease-of-use.
Easy-to-use illuminated control with compliant isolator switch.
Lockout/Tagout (LOTO) ensures that the machine cannot be started unexpectedtly during maintenance.

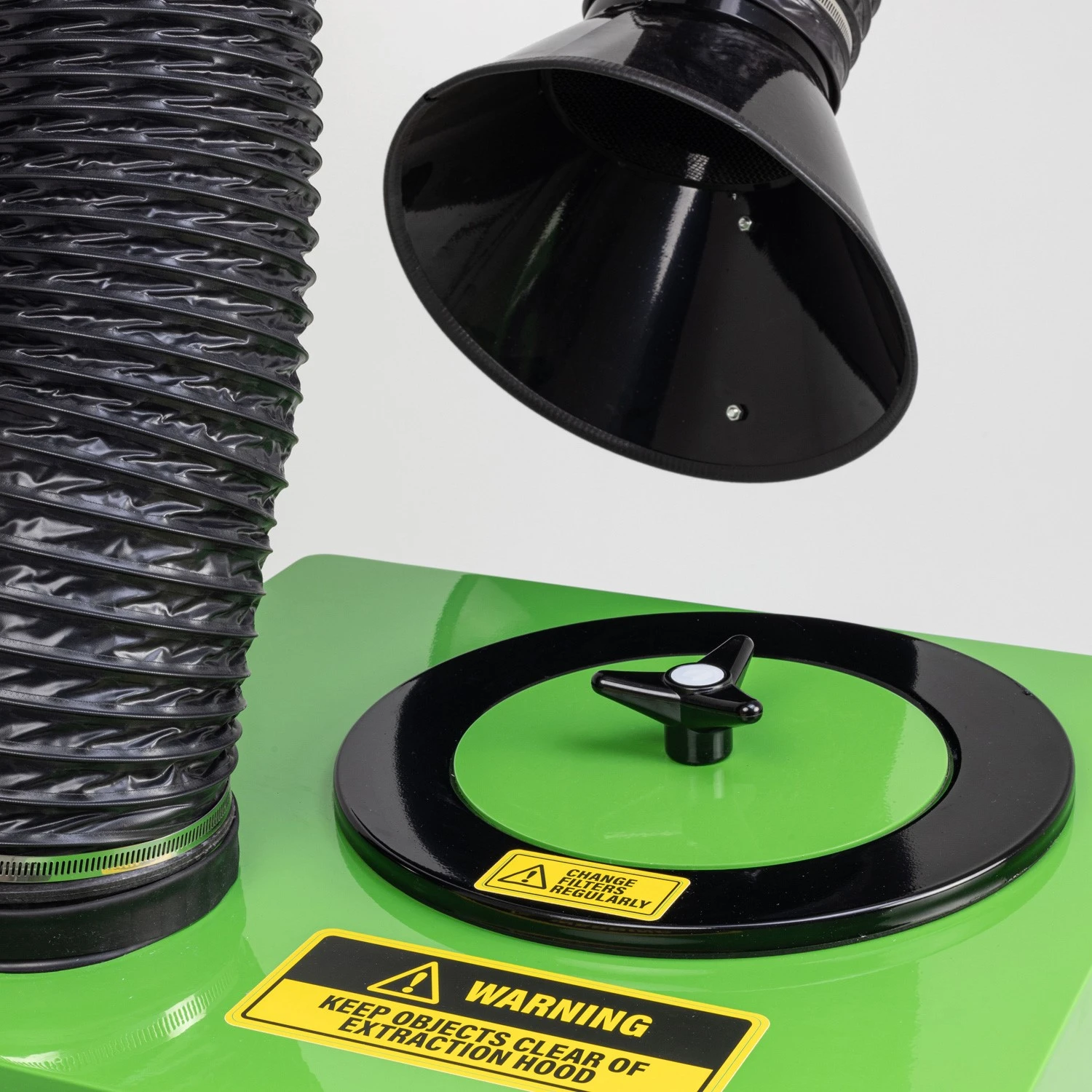

2MTR FLEXIBLE ARM SUCTION HOSE HELPS TO CHANNEL & CAPTURE HARMFUL FUMES AWAY FROM THE WORK AREA

Heavy-duty hose reinforced with a steel helix for greater strength and to prevent collapsing under suction.
Large metal suction hose helps to channel and capture harmful fumes.

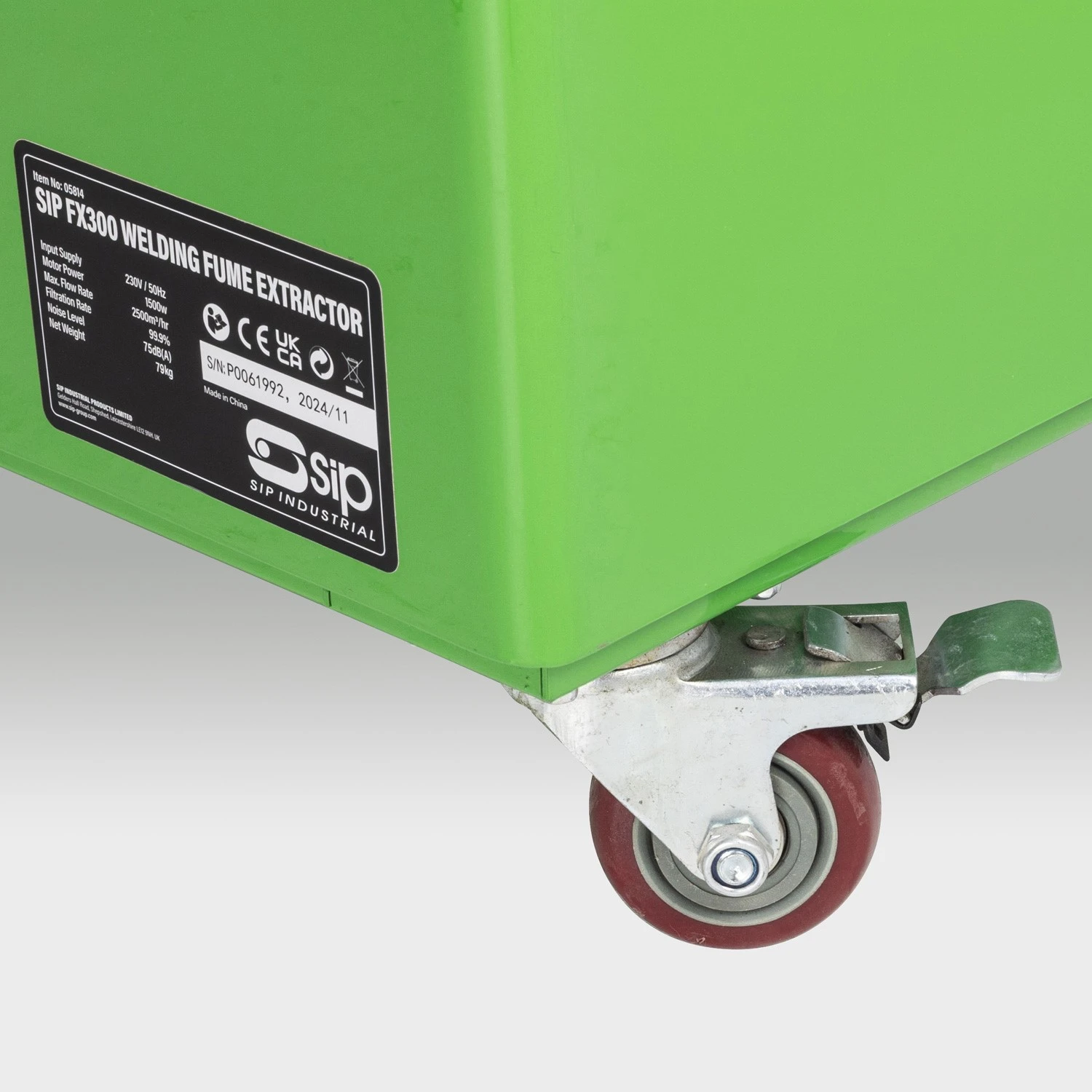

FITTED WITH LOCKABLE CASTORS FOR EASY WORK AREA MOBILITY PLUS SMALL PHYSICAL FOOTPRINT HELPS TO MINIMISE LOST WORK AREA SPACE
