Technical Information

ITEM NO.	05813
Input Supply:	230v (13A)
Motor Power:	200w (0.27hp)
Max. Flow Rate:	300mtr³/hr
Filtration Level:	99.97%
Hose Length:	2mtr
Noise Level:	75dB(A)
Net Weight:	25kg
Gross Weight:	25.5kg
Product Dimensions:	700(H) x 850(W) x 420mm(D)
Packaged Dimensions:	450(H) x 650(W) x 710mm(D)

No Compromise on Quality

The home of quality products.

Shop with confidence, we guarantee quality.

Safe Transactions, Happy Customers

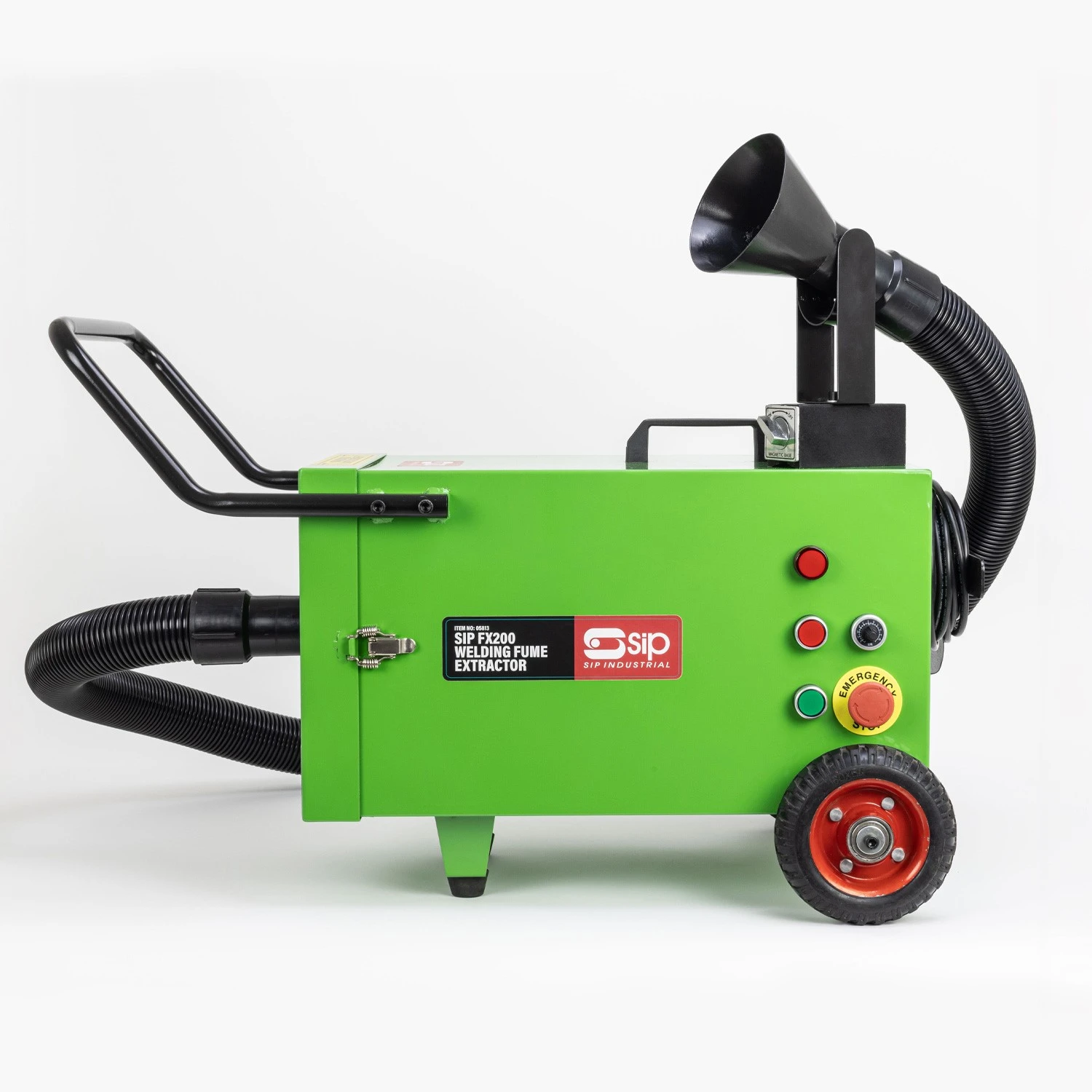

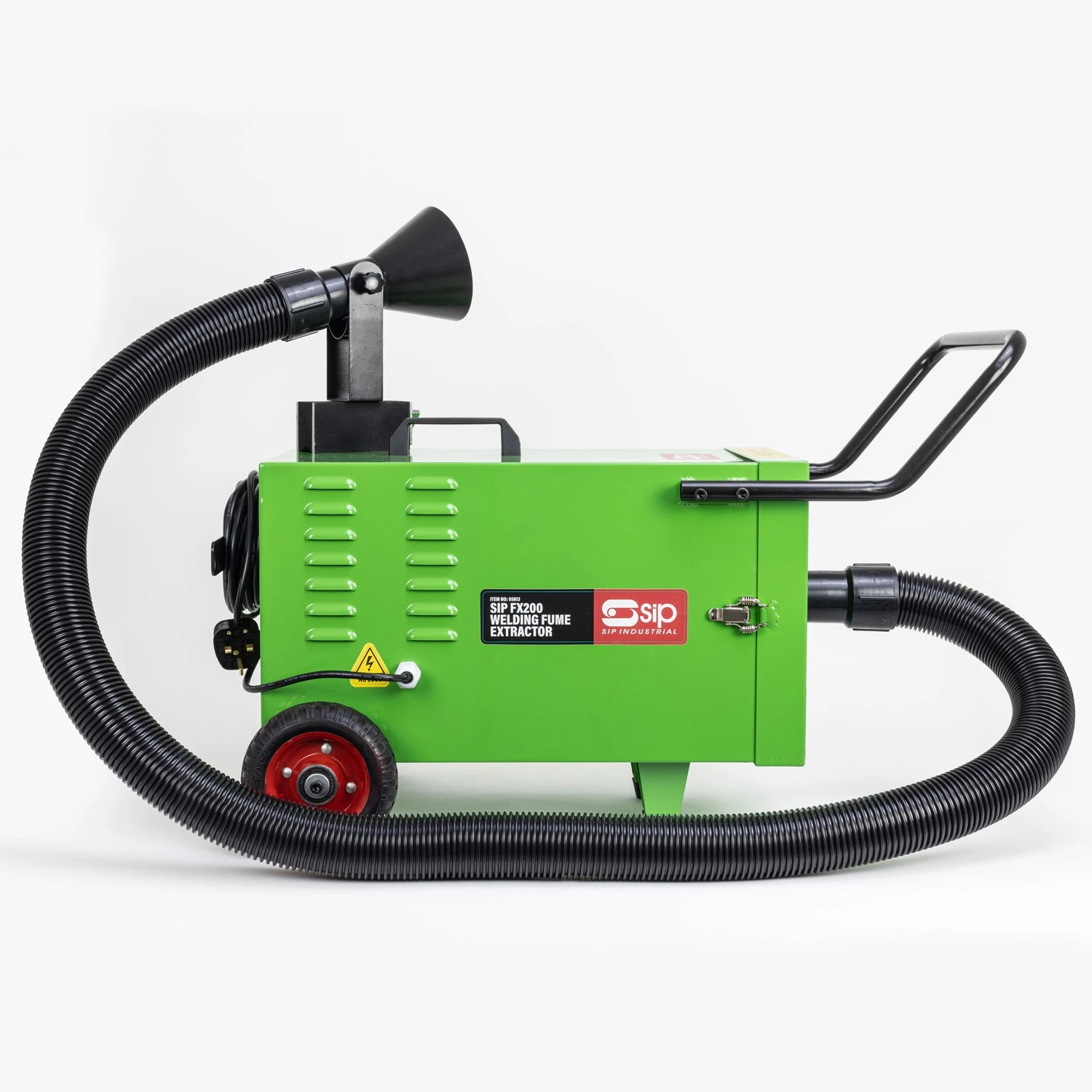

SIP 05813 FX200 Welding Fume Extractor

The SIP FX200 Welding Fume Extractor is a variable speed fume extractor designed to capture mid-level concentrates of welding fume pollutants. Suitable for small fabrication workshops, welding stations and automotive settings.

Featuring a 3-stage H13 filtration system and fitted with a 2mtr heavy-duty suction hose and large switchable magnetic suction hood, the FX200 filters 99.97% of sparks, spatter and dust as well as harmful gases and fumes.

This supports HSE requirements for handling weldable materials, which helps to reduce exposure to hazardous pollutants and improve work area quality.

KEY FEATURES

3-stage filtration system captures 99.97% of welding fume pollutants
Variable speed suction adjustment for greater application versatility
Low power consumption 200w motor with high 300mtr³/hr flow rate
Fitted with 2mtr heavy-duty hose greater strength under suction
Large switchable magnetic and tilt-adjust suction hood captures fumes

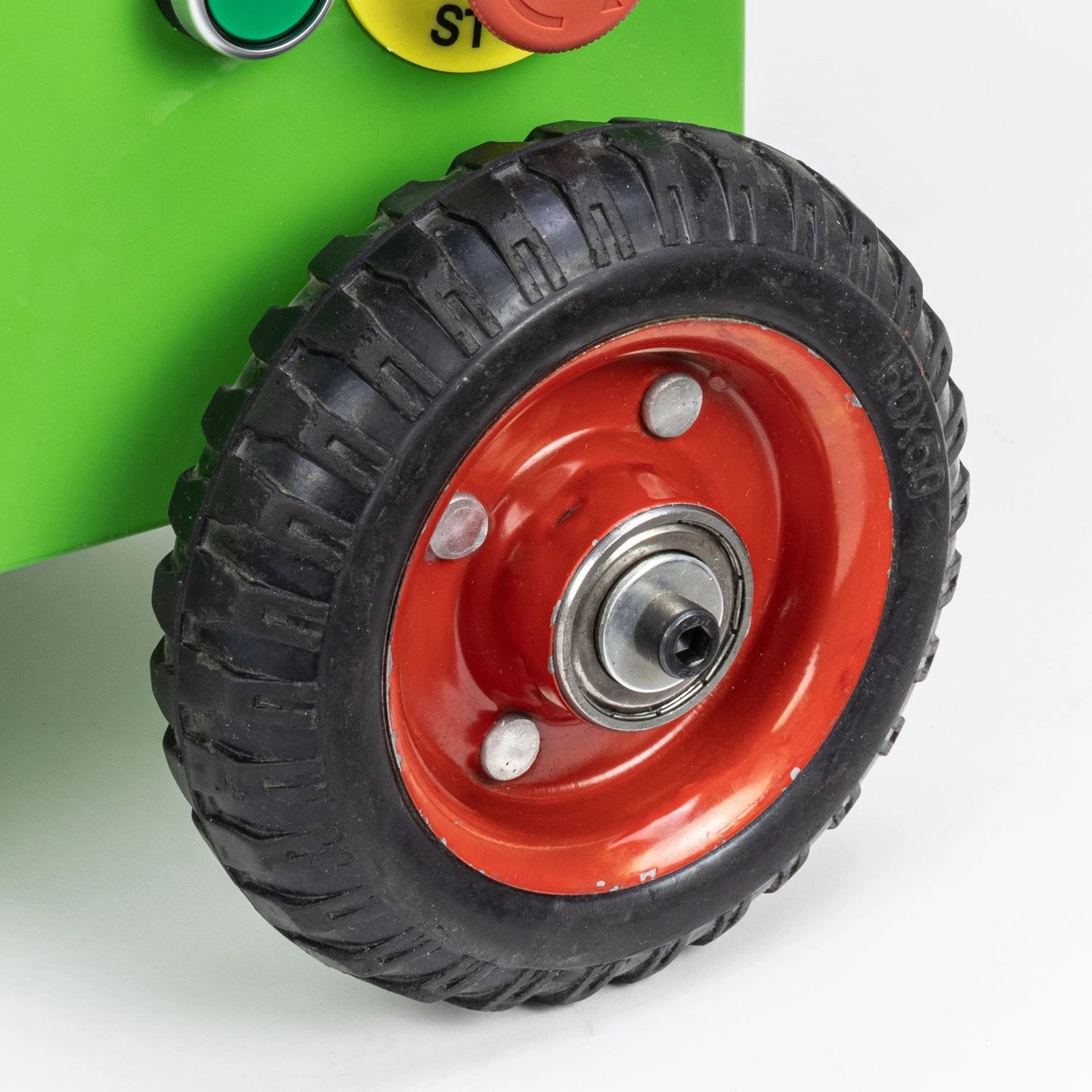

Solid wheels with pull handle for mobility around the work area

SIP 2-Year Standard Silver Warranty*

Full Specification

The SIP 05813 FX200 Welding Fume Extractor is a variable speed fume extractor designed to capture mid-level concentrates of welding fume pollutants. Suitable for small fabrication workshops, welding stations and automotive settings.

This supports HSE requirements for handling weldable materials, which helps to reduce exposure to hazardous pollutants and improve work area quality.

Applications & uses: Ideal for small fabrication workshops, welding stations and automotive settings. Designed for mid-level concentrates of welding fume pollutants.

SIP 2-Year Standard Silver Warranty* | Find out more

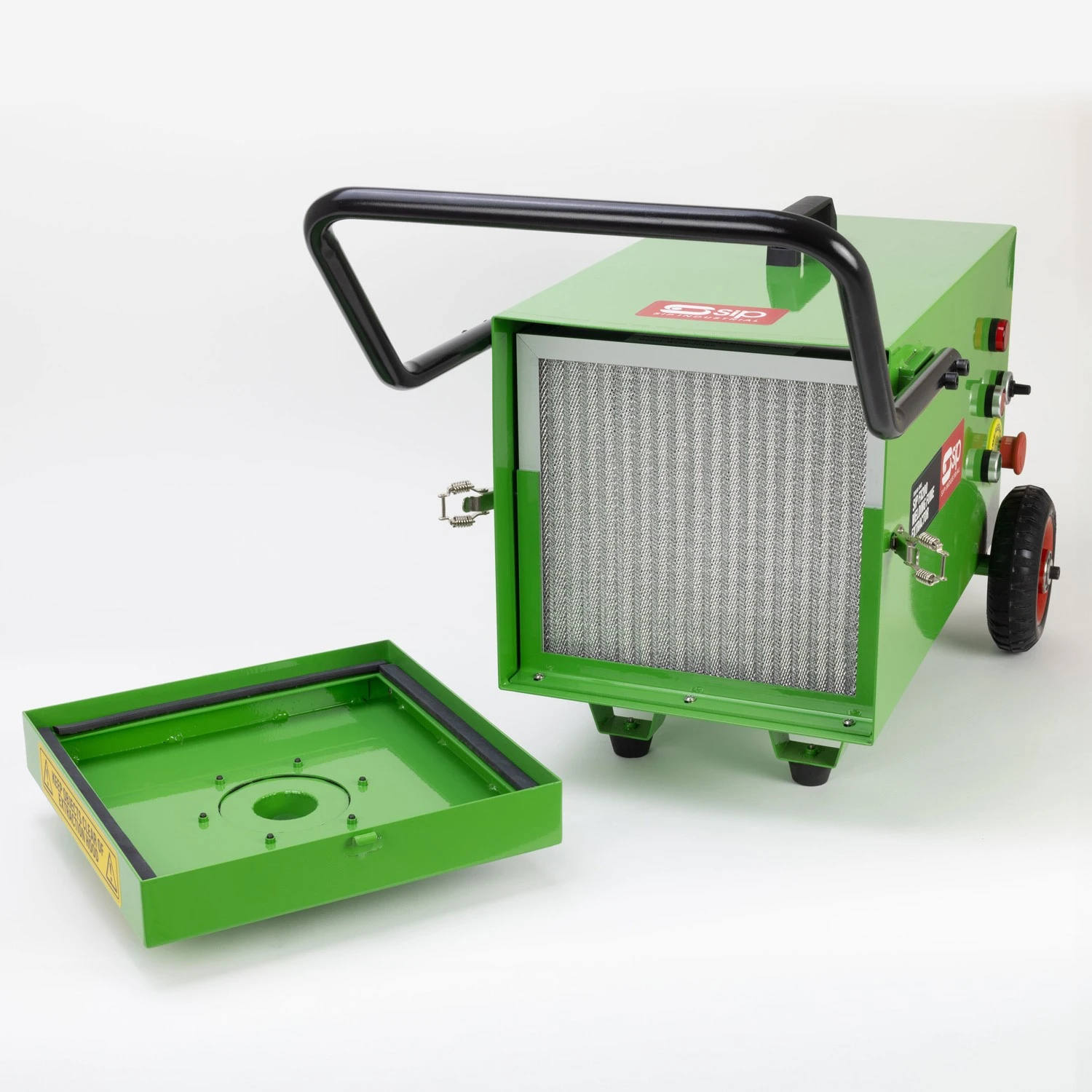

99.97% FILTRATION OF HAZARDOUS POLLUTANTS USING A 3-STAGE INTERNAL FILTRATION SYSTEM, INCLUDING HIGH EFFICIENCY PARTICULATE AIR (H13) FILTER WHICH CAPTURES PARTICLES DOWN TO 0.3 MICRONS

STAGE 1: MULTI-LAYER SPARK ARRESTOR: Captures larger particles including sparks and spatter, preventing them from reaching and damaging next-stage filters.
STAGE 2: PRIMARY FILTER: Filters dust and fumes generated during the welding process to improve work area air quality.
STAGE 3: HIGH EFFICIENCY PARTICULATE AIR (H13) FILTER: This final stage process filters finer airborne particles down to 0.3 microns, maximising the effectiveness of the filtration process.

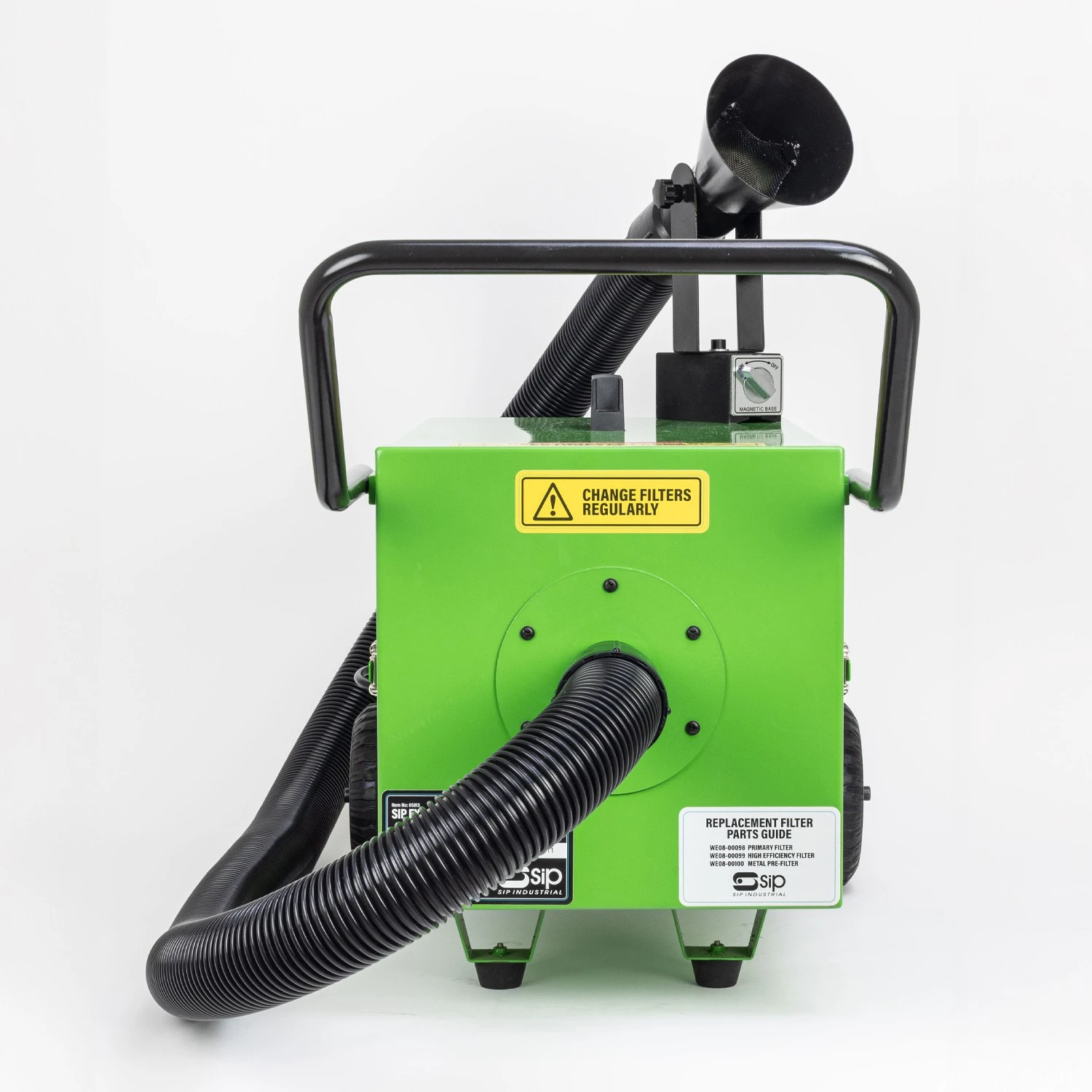

Replacement filters and multi-layer spark arrestor are available. Replacing them will maximise the performance and working life of the machine.

SIP Multi-Layer Mesh Spark Arrestor (WE08-00100)
SIP Primary Filter (WE08-00098)
SIP High Efficiency Filter (WE08-00099)

HIGH MAX. FLOW RATE OF 300MTR³/HR USING LOWER POWER CONSUMPTION VARIABLE SPEED 200W DIGITAL MOTOR FOR RELIABLE & CONSISTENT PERFORMANCE

Designed to capture mid-level concentrates of welding fume pollutants. Intelligent digital motor delivers low power consumption with high power output.
Includes variable speed suction adjuster for greater application versatility. Ideal for TIG welding and other delicate welding tasks.

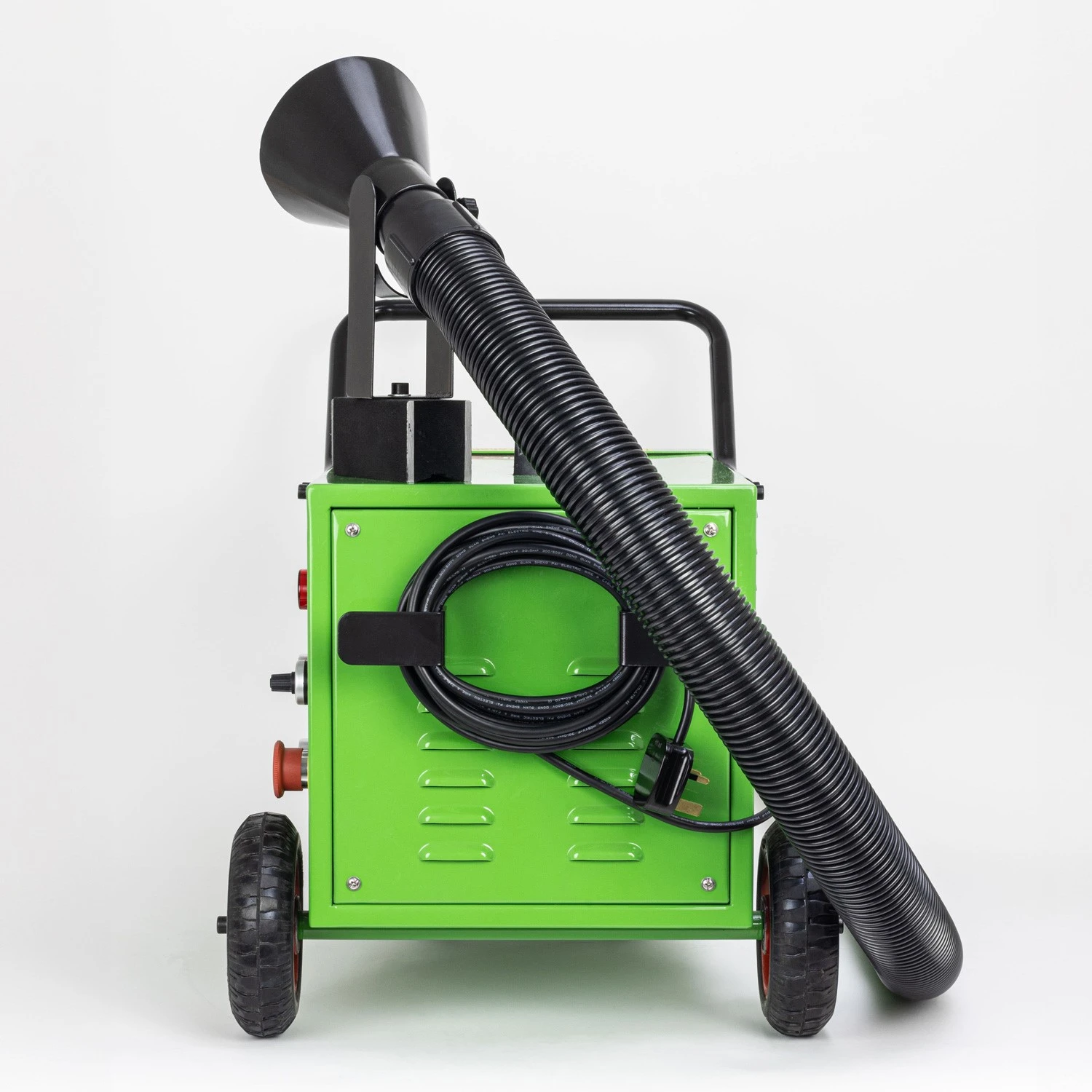

Fitted with long 2.5mtr mains cable for added flexibility. Operates from a 13A supply for ease-of-use.

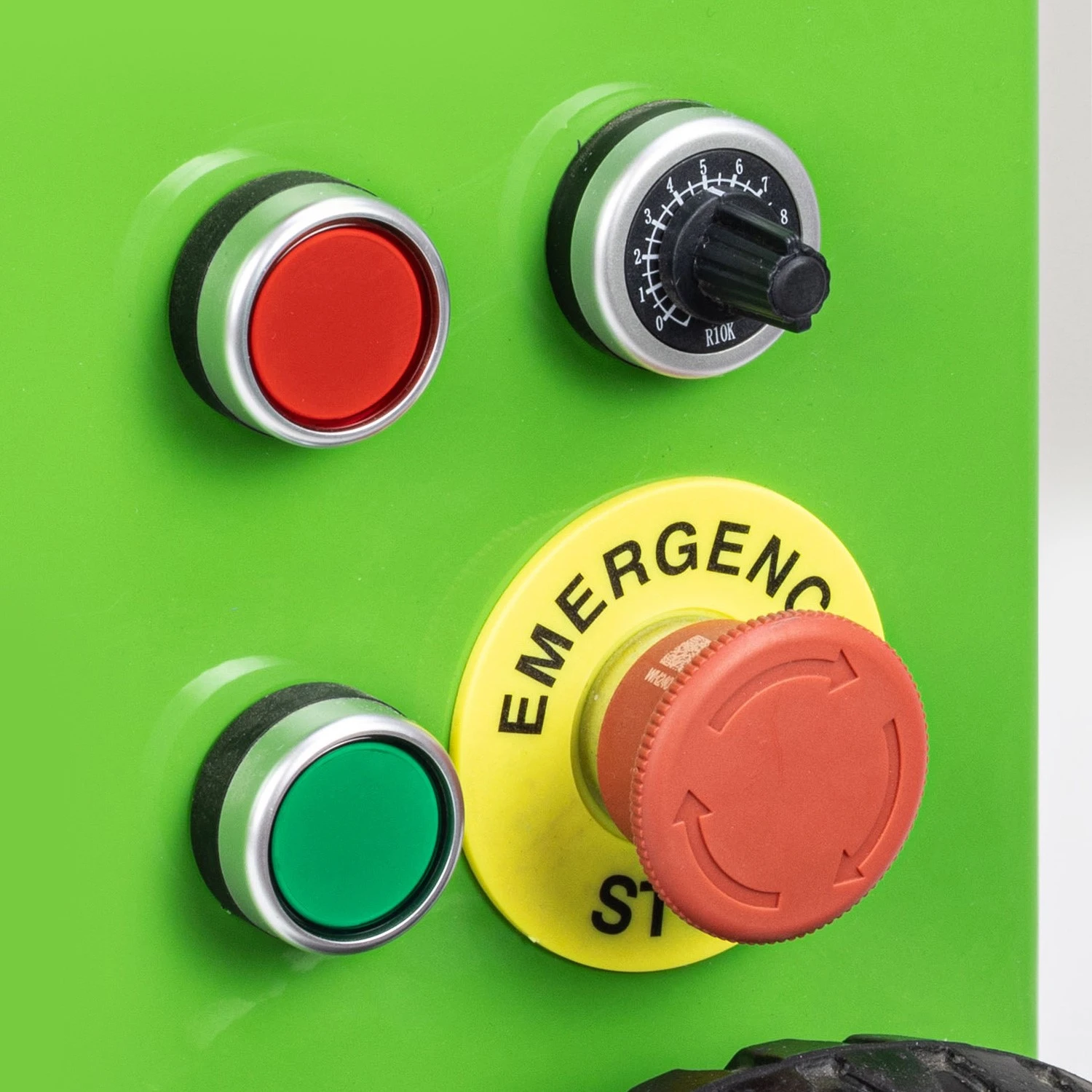

Easy-to-use illuminated controls with emergency stop button.

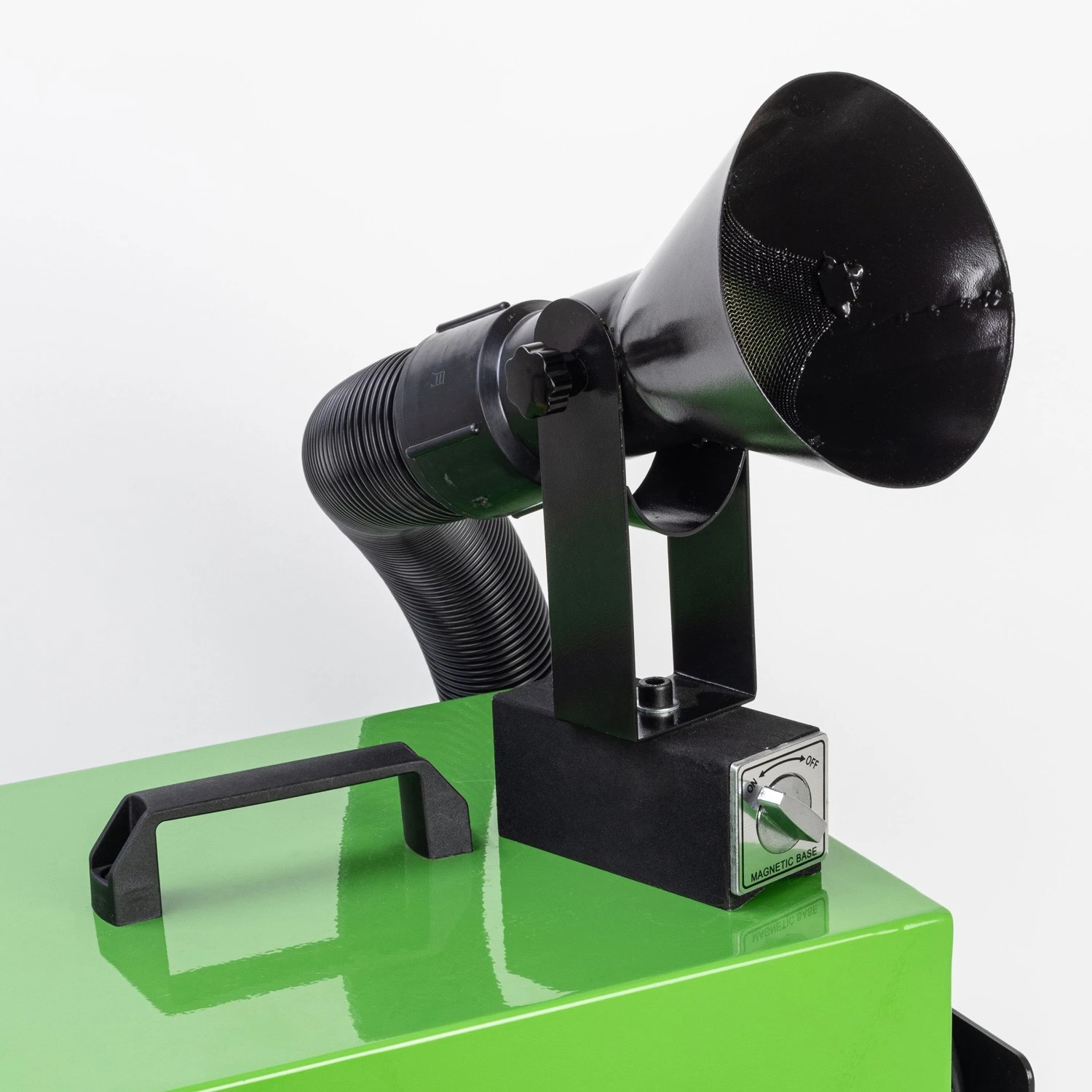

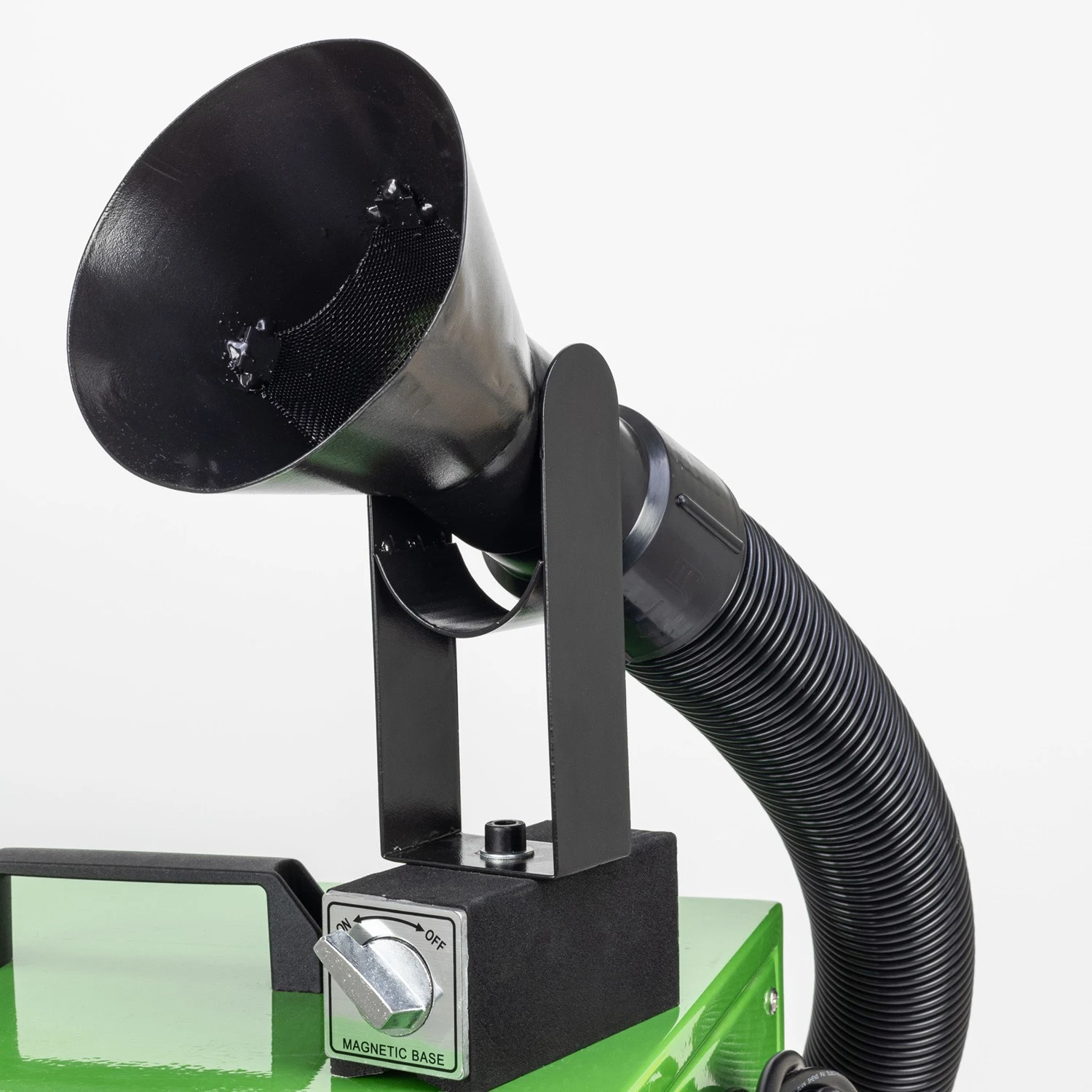

2MTR HEAVY-DUTY HOSE WITH LARGE SWITCHABLE MAGNETIC & TILT-ADJUST SUCTION HOODS HELPS TO CHANNEL & CAPTURE HARMFUL FUMES AWAY FROM THE WORK AREA
