Technical Description:


ITEM NO.	05802
Input Supply:	230v
Input Power:	1.1kW
Power Consumption:	4.85A
Max. Flow Rate:	2500m³/hr
Max. Suction Rate:	1200m³/hr
Filtration Level:	99.5%
Filter Stage 1:	G25% Metallic Spark Arrestors
Filter Stage 2:	Cor. Polyester Fibre Prefilter
Filter Stage 3:	99.5% H13 HEPA Absolute Filter
Extraction Type:	3mtr Flexible Hose
Max. Temperature:	60°C
Noise Level:	73dB(A)
Net Weight:
Gross Weight:
Product Dimensions:
Packaged Dimensions:	510(H) x 400(W) x 670mm(D) 380(H) x 550(W) x 1620mm(D)

No Compromise on Quality

The home of quality products.

Shop with confidence, we guarantee quality.

Safe Transactions, Happy Customers

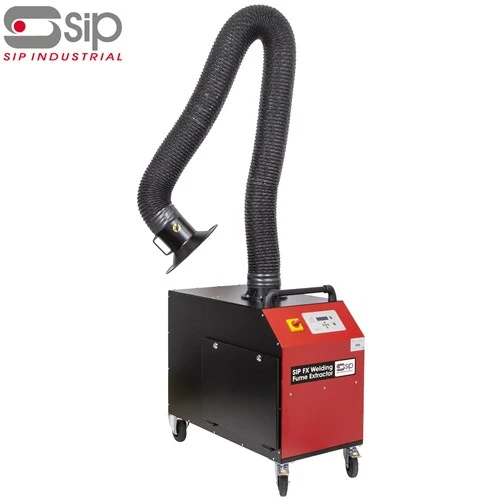

SIP 05802 FX-EH Mobile Welding Fume Extractor

The SIP 05802 FX-EH Professional Welding Fume Extractor is a Local Exhaust Ventilator (LEV) that ensures welding fumes released are controlled, providing protection against harmful toxic fumes.

230v input supply; 1.1kW (1.5hp) input power
4.85A power consumption for all applications
2500m³/hr max. flow rate / 1200m³/hr max. suction
3mtr flexible arm for easy adjustment and positioning
Heavy-duty 3-stage effective filtration up to 99.5%:
- Filter Stage 1: Metallic Spark Arrestors G25%
- Filter Stage 2: Corrugated Polyester Fibre Prefilter
- Filter Stage 3: Adjustable Filter H13 HEPA 95.5%
High performance centrifugal extraction fan encased in
a heavy-duty soundproof compartment for efficiency
Castor-mounted design perfect for all environments
Heavy-duty steel casing with power-coated finish
Complies with all current regulations with all
weldable materials including mild steel
Made in Italy

Full Specification

The SIP 05802 FX-EH Professional Mobile Welding Fume Extractor efficiently and safely removes harmful toxic welding fumes, filtering them and returning clear air into your environment, giving added peace-of-mind that your garage or workshop remains protected and safe.

Complying with all current regulations for weldable materials including mild steel, this Local Exhaust Ventilator (LEV) is an essential for any welding environment.

Browse SIP WELDING for more high-quality welding machines and accessories.

2500mtr³/hr max. flow rate and 1200mtr³/hr max. suction
3mtr flexible arm for easy adjustment and simple positioning
Heavy-duty 3-stage effective filtration up to 99.5%:
- Filter Stage 1: Metallic Spark Arrestors G25%
- Filter Stage 2: Corrugated Polyester Fibre Prefilter
- Filter Stage 3: Adjustable Filter E12 EPA 99.5%
Harmful fumes are removed through filters with clean air returned
Ensures workshops are protected from potentially harmful toxic fumes
High performance centrifugal fan encased in a soundproof compartment
Complies with all current regulations on weldable materials
Castor-mounted steel casing with powder-coated finish
SIP 2-Year Standard Silver Warranty
Manufactured in Italy
