SIP 05775 HG1800 DC Inverter Wielder 05775 – Poolewood
Original price was: $295.31.$98.99Current price is: $98.99.
ITEM NO. 05775
Supply 230v (16amp)
Output Current (TIG) 10amps – 160amps
Output Voltage (TIG) 10.4v – 16.4v
Output Current (ARC) 10amp – 140amps
Output Voltage (ARC) 20.4v – 25.6v
Approx. Weld Thickness (TIG) 0.3mm – 4.0mm
Approx. Weld Thickness (ARC) 1.1mm – 5.6mm
TIG Tungsten Size 1.0mm – 2.4mm
ARC Electrode Size 1.6mm – 3.2mm
Duty Cycle @ 40°C (TIG) 160amps @ 25%
103amps @ 60%
80amps @ 100%
Duty Cycle @ 20°C (TIG) 160amps @ 60%
124amps @ 100%
Duty Cycle @ 40°C (ARC) 140amps @ 25%
90amps @ 60%
70amps @ 100%
Duty Cycle @ 20°C (ARC) 140amps @ 60%
108amps @ 100%
Insulation Class H
Protection IP21S
Gross Weight 7.5kg
Packaged Dimensions (HxWxL) 480 x 250 x 480mm
Additional 2 year warranty
- No Compromise on Quality
- The home of quality products.
- Shop with confidence, we guarantee quality.
- Safe Transactions, Happy Customers

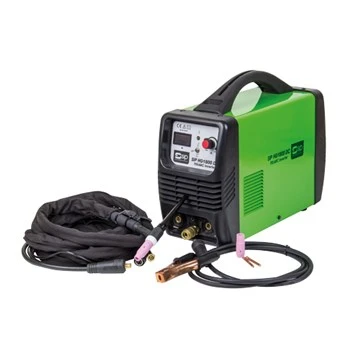

SIP 05775 HG1800 DC (HF) TIG /ARC Inverter Welder
SIP 05775 HG1800 DC (HF) TIG /ARC Inverter Welder. TIG Inverter welders are dual function and boast anti-stick circuitry, a high frequency TIG facility for easy starting and extra low current performance.
230v (16amp) supply
DC output current only
10amps – 160amps TIG output current
10amps – 140amps ARC output current
1.6mm – 3.2mm MMA electrode diameter
Welds steel, stainless steel and copper
HF TIG/Lift ARC TIG/MMA ARC facilities
Complete with accessories/consumables
Anti-stick circuitry
Dual weld function
2 year warranty
Included in the SIP 05775 box:
- SIP17 TIG Torch
- 4 metre, 2 metre earth lead
- 3 metre gas hose
- Torch spares kit
