SIP 01938 12 X 36inch Swivel Head Wood Lathe | Poolewood
Original price was: $302.00.$98.99Current price is: $98.99.
Technical Information
| ITEM NO. | 01938 |
| Input Supply: | 230v (13A) |
| Motor Power: | 550w (0.75hp) |
| Speed Range: | 500rpm – 2000rpm |
| Distance Between Centres: | 900mm (36″) |
| Turning Capacity: | 310mm (12″) |
| Spindle Through Hole: | 10mm (Drive) / 10mm (Tailstock) |
| Drive Spur Size: | 1 Morse Taper |
| Tailstock Rotating Centre Size: | 2 Morse Taper |
| Noise Level: | 68dB(A) |
| Net Weight: | 77.00kg |
| Gross Weight: | 85.00kg |
| Product Dimensions: | 1380(H) x 1120(W) x 475mm(D) |
| Packaged Dimensions: | 1510(H) x 1120(W) x 370mm(D) |
- No Compromise on Quality
- The home of quality products.
- Shop with confidence, we guarantee quality.
- Safe Transactions, Happy Customers

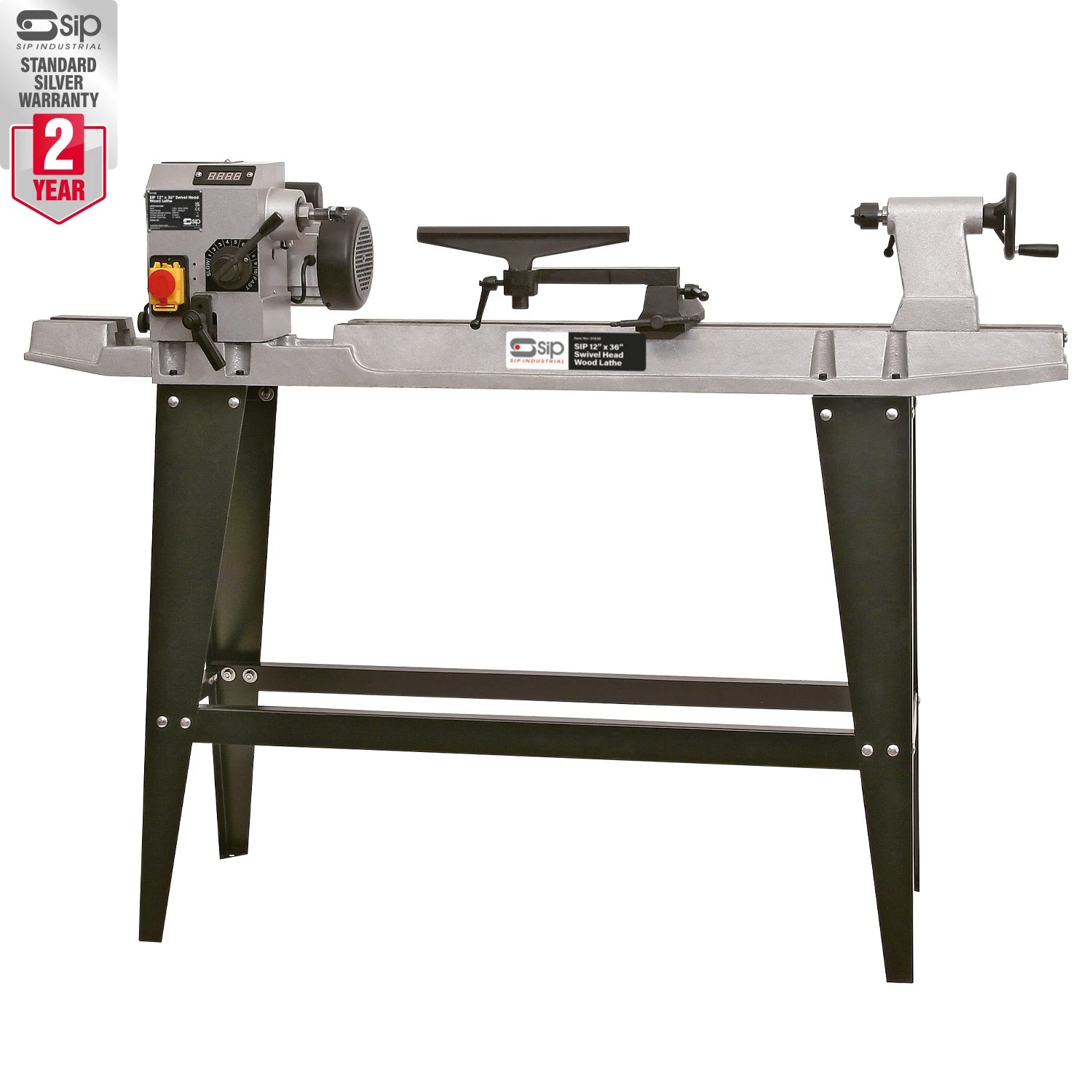

SIP 01938 12 x 36inch Swivel Head Wood Lathe
The SIP 01938 12 x 36inch Swivel Head Wood Lathe is an ideal solution for those seeking a robust, adaptable lathe to accurately shape, turn, drill and sand pieces to the desired specification.
For added functionality, the headstock swivel 360° with four locking positions to allow outboard turning of larger wood materials. The lathe bed, headstock (MT1) and tailstock (MT2) are manufactured from heavy-duty cast iron and mounted on pressed steel legs with cross braces. A hollow tailstock is also fitted for long hole boring.
Supplied with tool rest holder, 6″ faceplate, drive and tailstock centres, 2x tool rests and bowl turning rest holder.
KEY FEATURES The SIP 01938 12 x 36inch Swivel Head Wood Lathe
- 3/4″ x 16TPI spindle thread size
- 300mm max. turning diameter (900mm between centres)
- Pressed steel legs with cross braces
- Heavy-duty cast iron lathe bed
- Digital speedometer display up to 2000rpm
- 10 setting easy-change speed handle
2-Year Standard Silver Warranty | Find out more
Full Specification of the SIP 01938 12 x 36inch Swivel Head Wood Lathe
The SIP 01938 12 x 36inch Swivel Head Wood Lathe is an ideal solution for those seeking a robust and adaptable lathe for woodturning. Crucial to a functioning workshop, this machine tool allows a woodturner to accurately shape, turn, drill and sand workpieces to the desired specification.
For added functionality, a 360° swivel headstock with four locking positions is fitted to allow outboard turning of larger wood materials. The lathe bed, headstock and tailstock are manufactured to a professional finish from heavy-duty cast iron. Pressed steel legs with cross braces also help to maintain stability.
The headstock has an MT1 taper and tailstock an MT2 taper alongside a variable speed motor which runs between 500rpm and 2000rpm. The easy-change speed handle has 10 settings and a digital readout speed display for greater turning control.
Supplied with tool rest holder, 6″ faceplate, drive and tailstock centres, 2x tool rests and bowl turning rest holder.
Applications & uses | Perfect for turning furniture legs, staircase spindles and bespoke woodwork items. Accurately turns, shapes, drills and sands workpieces to the desired specification. Suitable for soft and hard woods.
SIP 2-Year Standard Silver Warranty | Find out more
3/4″ x 16TPI spindle thread size
Allows the use of various turning attachments.
300mm max. turning diameter (900mm between centres)
Enables a variety of woodwork projects and jobs.
360° swivel headstock with four lock positions
Allows for outboard turning of larger wood materials.
Heavy-duty cast iron lathe bed and pressed steel legs
Ensures greater turning stability and accuracy.
Cast iron MT1 headstock and MT2 tailstock
For an assured hold to the workpiece when turning.
Digital speedometer display
Provides accurate readout of headstock spindle speed.
Fitted with hollow tailstock for long hole boring
Offers added versatility for professional applications.
