Technical Information

ITEM NO.	01572
Input Supply:	230v (13A)
Motor Power:	370w (0.5hp)
Transmission:	Belt-Driven Gearbox
Blade Speed Range:	20mtr/min / 29mtr/min / 50mtr/min
Blade Size:	1638mm x 12.5mm x 0.64mm
Coolant System:	No

Cutting Capacity @ 0°:	110mm	110mm	110mm x 150mm
Cutting Capacity @ 45°:	85mm	85mm	85mm x 110mm
Net Weight:	80.00kg
Gross Weight:	86.00kg
Product Dimensions:	1080(H) x 510(W) x 910mm(D)
Packaged Dimensions:	430(H) x 420(W) x 1020mm(D)

No Compromise on Quality

The home of quality products.

Shop with confidence, we guarantee quality.

Safe Transactions, Happy Customers

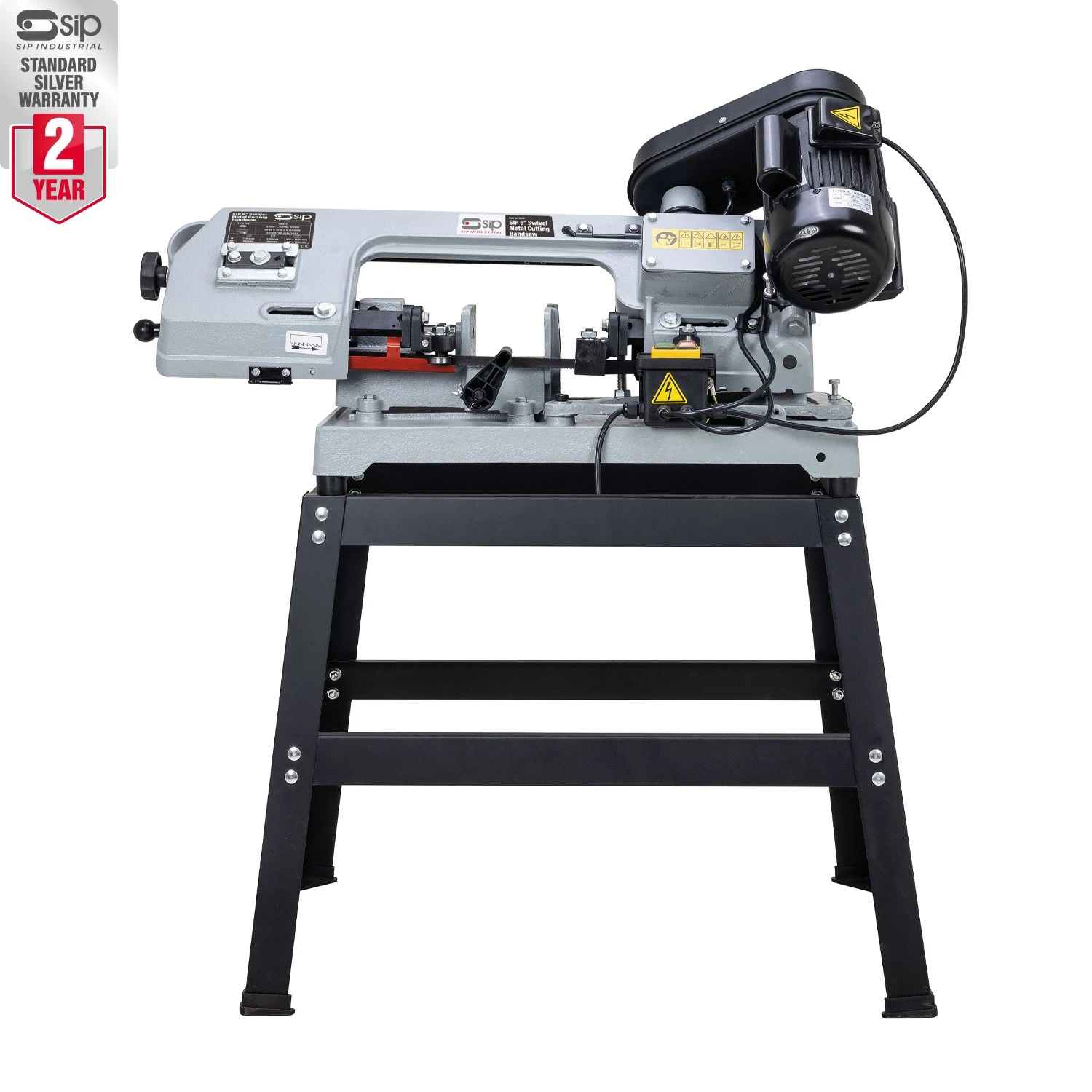

SIP 01572 6″ Swivel Head Metal Bandsaw

The SIP 01572 6″ Swivel Head Metal Bandsaw is a powerful and accurate metal bandsaw machine ideal for cutting bar, tube and profile workpieces using a range of metal types. This includes mild steel, stainless steel, aluminium, copper, brass and alloys.

SIP Metal-Cutting Bandsaws are highly efficient, easy to use and safely cut metal to a high standard, helping to avoid use of manual cutting operations. They are an essential machine for metal and engineering workshops.

KEY FEATURES

Heavy-duty cast iron bow
3-speed belt-driven transmission
Adjustable cast iron vice
Stand or bench-mountable
Mitre cutting functionality
Enhanced safety features

SIP 2-Year Standard Silver Warranty*

Full Specification

The SIP 6″ Swivel Head Metal Bandsaw is a powerful and accurate metal bandsaw machine ideal for cutting bar, tube and profile workpieces using a range of metal types. This includes mild steel, stainless steel, aluminium, copper, brass and alloys.

SIP Metal-Cutting Bandsaws are highly efficient, easy to use and safely cut metal to a high standard, helping to avoid use of manual cutting operations. They are an essential machine for metal and engineering workshops.

Applications & uses: Ideal for metalwork and engineering workshop environments. Suitable for cutting mild steel, stainless steel, aluminium, copper, brass and alloys. Cleanly cuts bar, tube and profile workpieces.

SIP 2-Year Standard Silver Warranty | Find out more

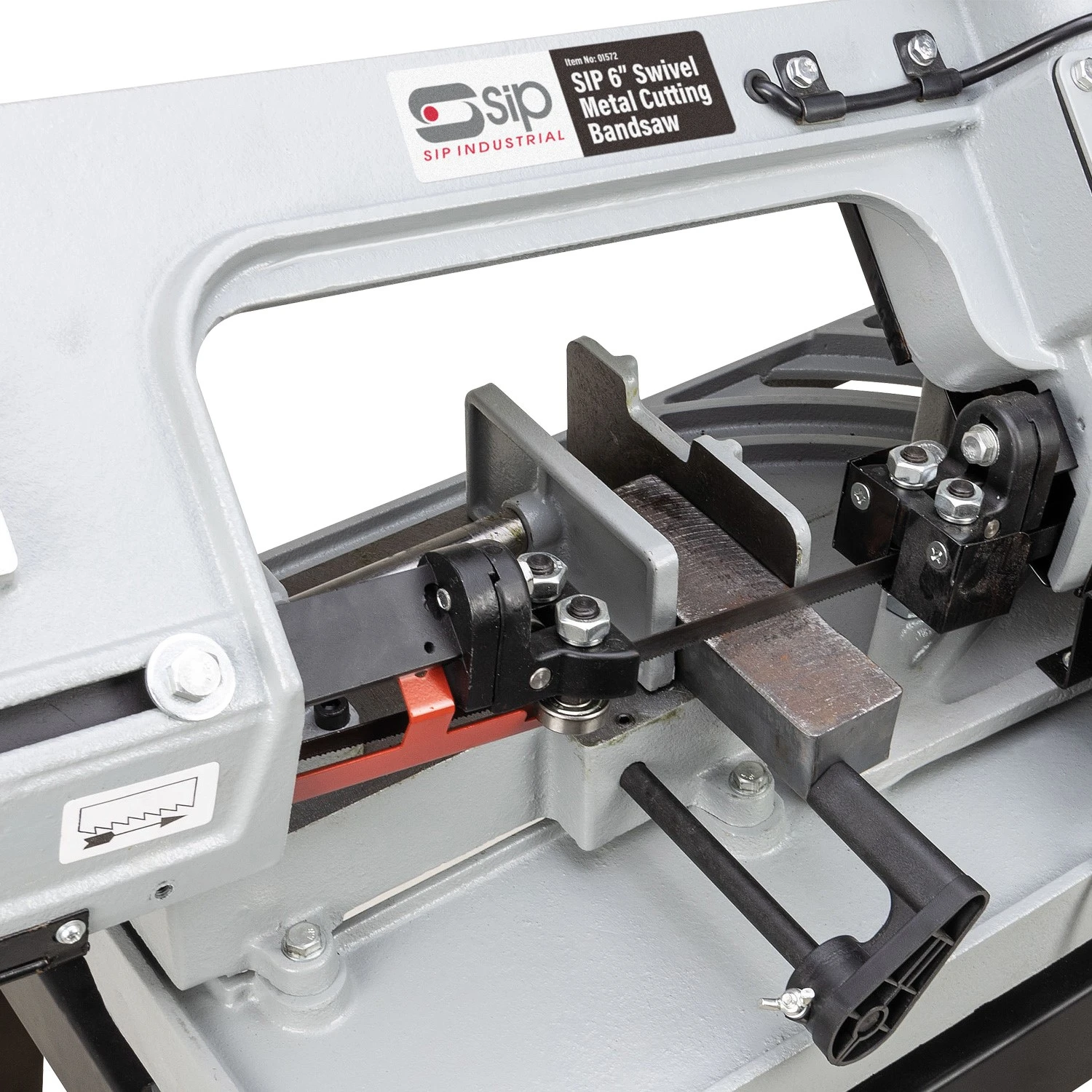

Heavy-duty cast iron bow
The swivel head action allows cutting between 0° and 45° without moving workpiece from the vice. This reduces material handling time and cutting area space needed to operate the saw. Fitted to a pressed steel base, this weighted machine provides a rigid cutting platform which helps to reduce vibration and increase cutting accuracy.
- Supplied with carbon steel blade.
- A manual blade tensioner ensures the blade cuts efficiently.
- Blade guard fitted with a safety interlock for user protection.
- Auto-stop cut function engages when the cutting process is complete.
Three-speed belt-driven transmission
A three-speed belt-driven transmission system allows blade speed to be adjusted for cutting a variety of materials.

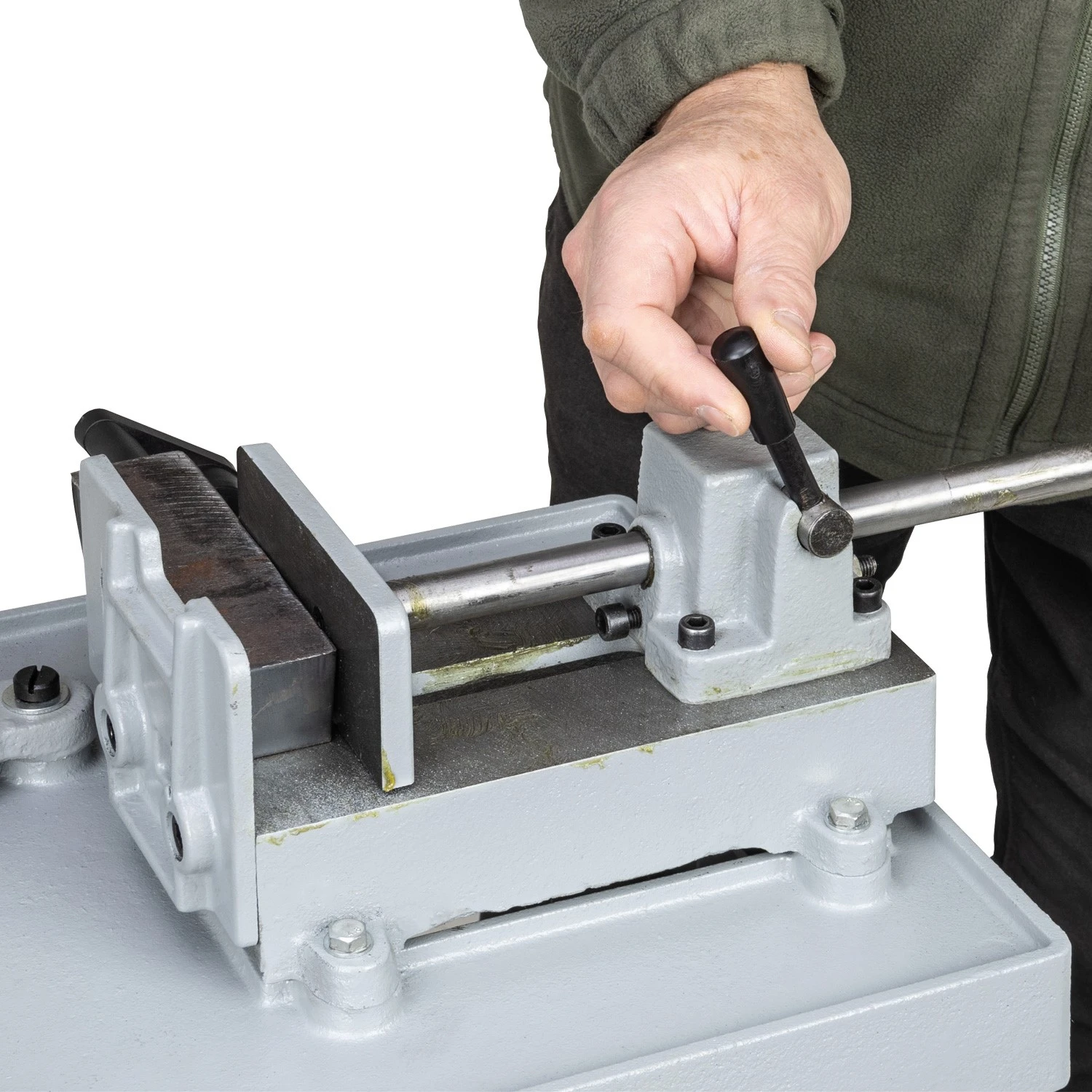

Adjustable cast iron vice
Cast iron vice securely holds the workpiece for precise cutting, whilst a quick release handle ensures material can be quickly changed.

Stand or bench-mountable
Supplied with a stable and robust pressed steel stand so the saw can be bench-mounted for added flexibility.

Mitre cutting functionality
Enables quick angle adjustment for precise cutting of workpieces.

Enhanced safety features
Interlocking switches prevent the saw running when the blade guard or belt pulley covers are opened. Adjustable blade covers limit exposure during cutting for greater user safety.
