SIP 01456 Tilting Head Spindle Moulder – 01456 | Poolewood
Original price was: $314.00.$96.99Current price is: $96.99.
Technical Information
| ITEM NO. | 01456 |
| Input Supply: | 230v (16A) |
| Motor Power: | 2.8kW (3.75hp) |
| Spindle Speeds: | 4 speeds; 1800rpm 3000rpm 6000rpm 9000rpm |
| Spindle Diameter: | Ø 30mm |
| Spindle Travel: | 100mm |
| Max. Tool Diameter: | Ø 200mm |
| Table Opening: | 200mm |
| Table Size: | 710mm x 640mm |
| Spindle Tilting: | -10° – +30° |
| Net Weight: | 170.00kg |
| Gross Weight: | 188.00kg |
| Product Dimensions: | |
| Packaged Dimensions: | 700(H) x 760(W) x 690mm(D) |
- No Compromise on Quality
- The home of quality products.
- Shop with confidence, we guarantee quality.
- Safe Transactions, Happy Customers

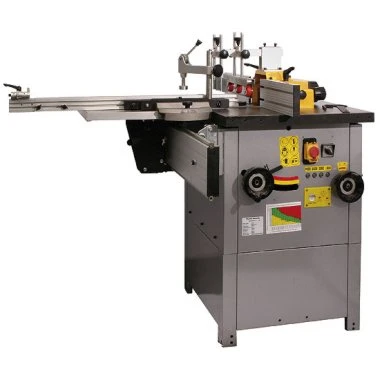

SIP 01456 Tilting Head Spindle Moulder
SIP 01456 Tilting Head Spindle Moulder. This machine is designed to cope with a wide range of woodworking tasks – especially end moulding,
profiling and tenoning.This machine is designed to cope with a wide range of woodworking tasks – especially end moulding,
profiling and tenoning. It features a large cast-iron table with a tilting spindle for greater flexibility. 4
spindle speeds and a heavy-duty fence and clamping system. This is therefore ideal for intricate work pieces and
resulting in safer operation. The solid build (weighs over 170kg) and advanced design mean this
machine is perfect for woodworking professionals as well as serious amateurs.
Table pre-drilled to accept power feed unit
- 230v (16amp) input supply
- 2.8kW (3.75hp) induction motor
- -10° to +30° spindle tilting angle
- 200mm set table opening aperture
- 710 x 640mm overall table dimensions
- Low speed for use with sanding bobbin
- Pre-drilled table to accept a power unit
- 4 speeds; 1800/3000/6000/9000rpm
- Solid and durable construction
- Integrated NVR switch
NOTE: The sliding carriage as shown is an optional extra part number 01457
