VD1100N Specifications:

Motor power s6 in W: 1100
Motor power s1 in W: 750
Voltage: 230V
Table height in mm: 900
Spindle bore in mm: 12
Head stock spindle: M33 DIN800
Tailstock cone: MK2/MT2
Lathe spindle speed in min-1: 500-2000
Copying center height in mm: 80
Distance between centers in mm: 1100
Center height in mm: 185
Net weight in kg: 119
Gross weight in kg: 149
Packaging height in mm: 430
Packaging width in mm: 340
Packaging length in mm: 1.620

SKU: CG9VB 5643 Categories: Lathes, Woodworking

No Compromise on Quality

The home of quality products.

Shop with confidence, we guarantee quality.

Safe Transactions, Happy Customers

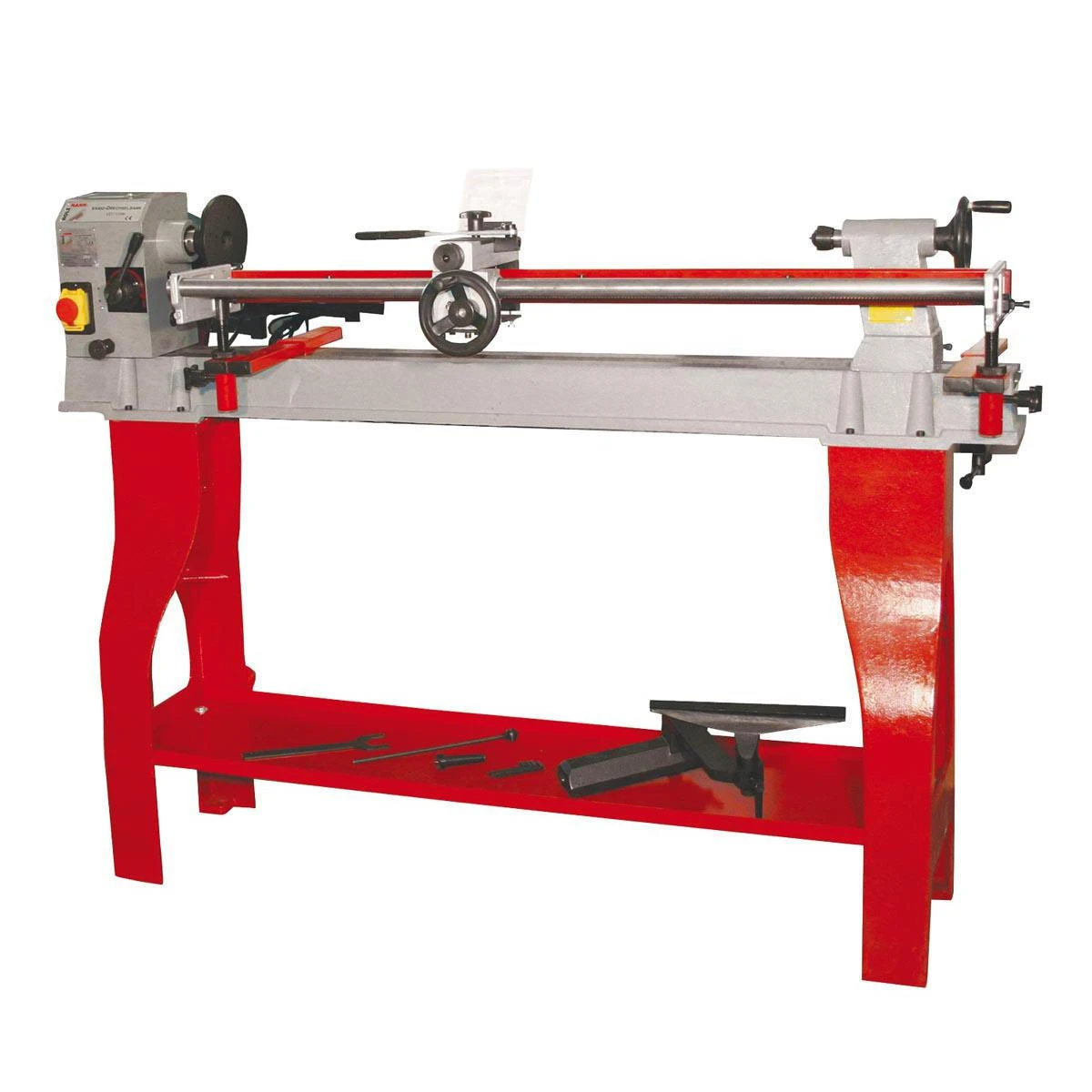

Holzmann VD1100N Wood turning & copy lathe 230V

The Holzmann VD1100N Wood turning & copy lathe this version is the 230V. A 415V machine is available as a special order.

The Holzmann VD1100N floor standing wood lathe offers larger turning capacities and designed to meet the demands of the seasoned professional. Features solid cast iron construction, smooth running motor, increased spindle length, centre height for larger bowl turning capacity, and copying attachment.

grey cast iron machine bed, stand, tail stock and head stock

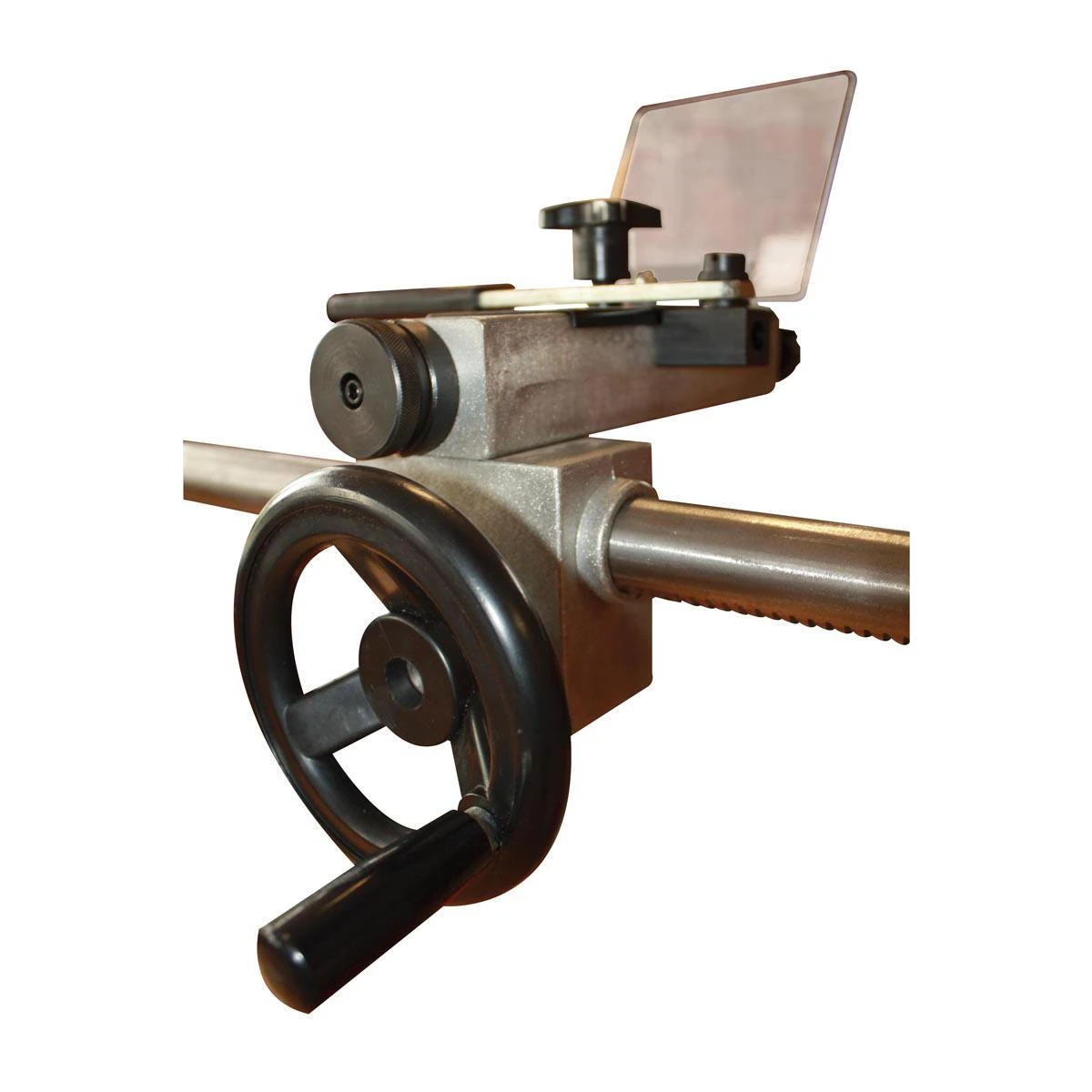

copying device options: from master work piece or pattern
max. copying length 1000mm
head stock 90° pivotable for big turning diameters

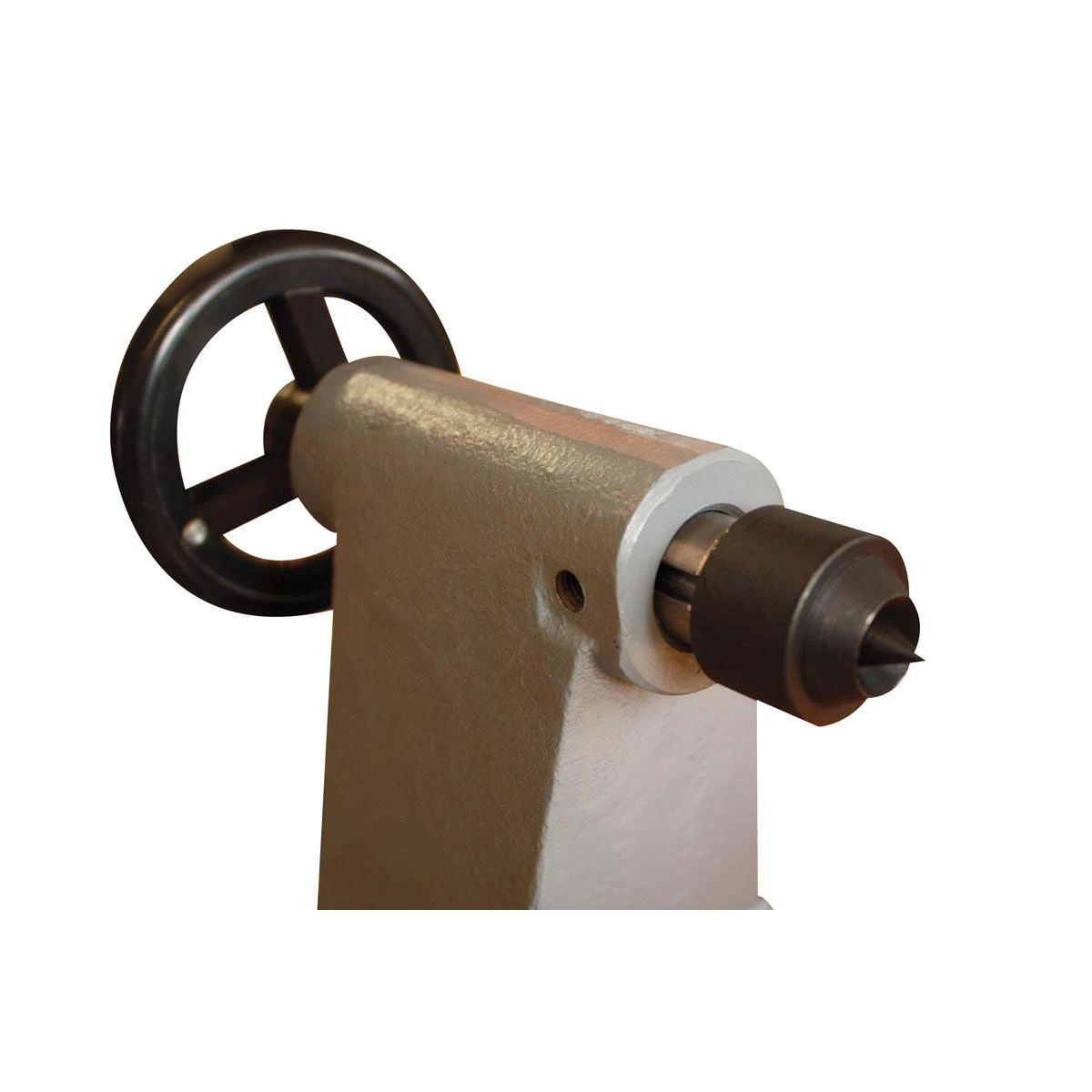

MT2 tail stock
quick adjustment for tail stock and head stock
large face plate

included in delivery: stand, 4 point drive centre, ball-bearing life centre, faceplate, several tools, copy attachment, tool rest

VD1100N Wood turning & copy lathe + cast iron bed/head/tailstock + M33 headstock spindle + variable speed 500-2000rpm + 1100x185mm max capacity + 1000mm copying device from original & templates + 90dg pivotable headstock for large dia turning 750W (S1) motor 415v
