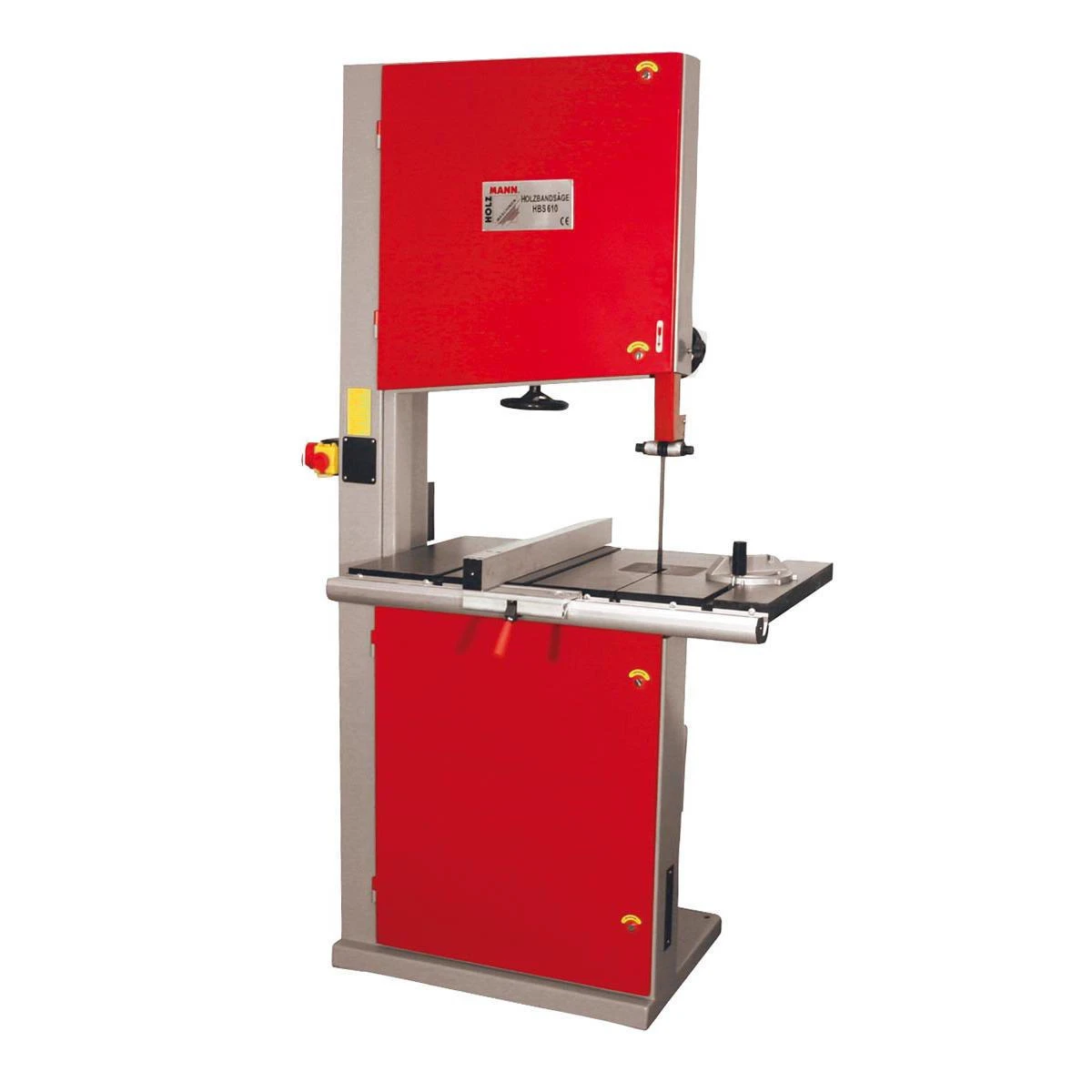

Holzmann HBS610 Bandsaw

Holzmann HBS610 Bandsaw. This version is for the 230V 16AMP. A 400V 3 phase version is also available but currently special order. Please contact us if interested in that version. Key Highlights:



• XL grey cast iron table
• closed sheet steel construction for high stability and accuracy

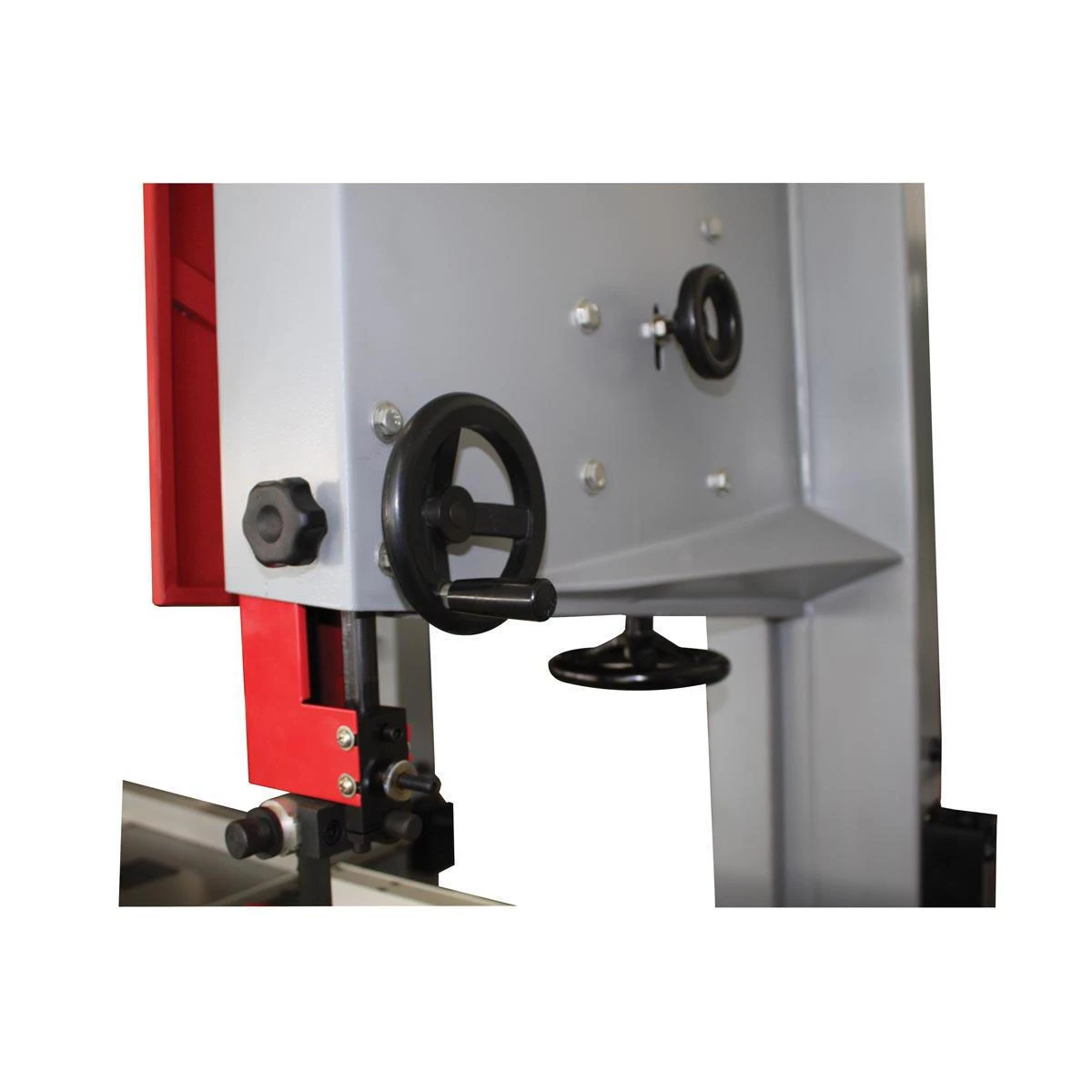

• precise saw band guide system above and below the table

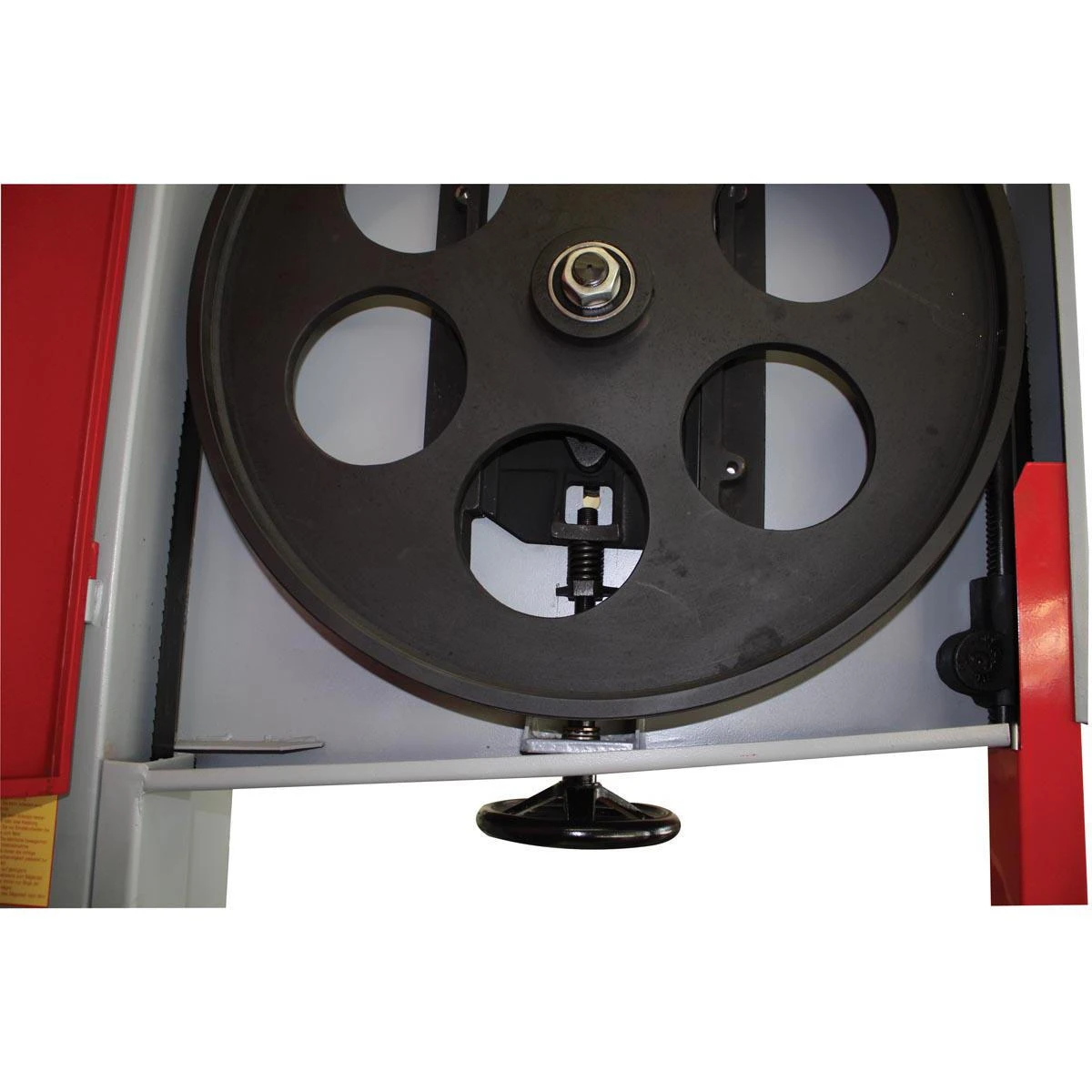

• rubber-coated wheels ensure a prolonged saw band durability
• saw band width from 8mm up to 32mm
• height: 199cm



included in delivery: stand, 1 x bandsaw blade, mitre gauge, fence guide



Quick Facts



• Blade length 4080
• blade width 8mm-32mm
• max. cutting height 90° in mm 300
• max. cutting width at parallel fence in mm 545

Technical Details

motor data

motor power s1 in W 3000

motor power s6 in W 4200

voltage 230V

measurements

suction port in mm 100

table height in mm 980

outreach in mm 590

table size in mm 500×700

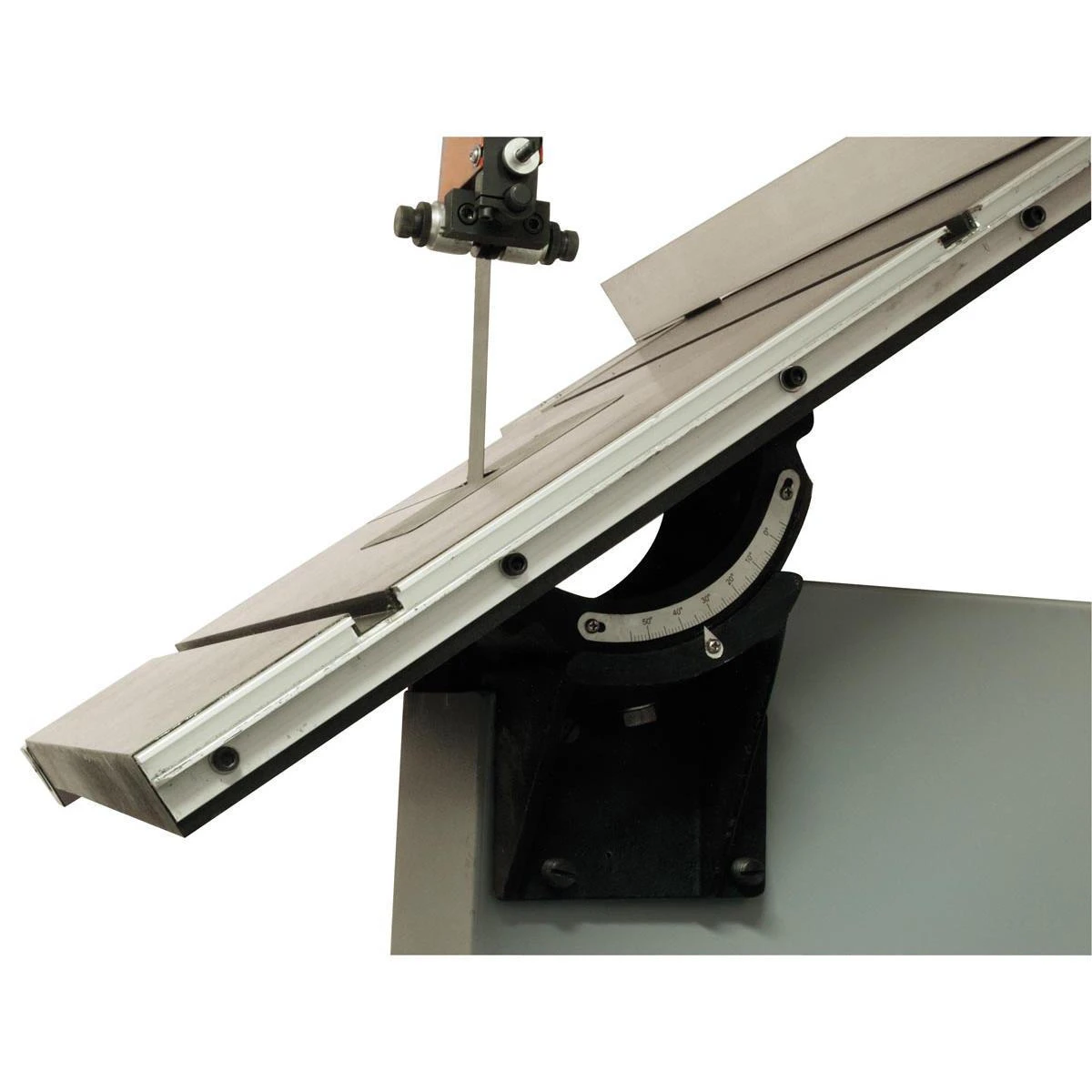

swivel range 0° +20°

cutting performance

max. cutting height 90° in mm 300

max. cutting width at parallel fence in mm 545

band saws

saw band width in mm 8-32

flywheel diameter in mm 610

saw band in mm 4080

saw band speed in m/min 600

weight

gross weight in kg 335

net weight in kg 300

packaging

packaging length in mm 2.060

packaging width in mm 590

packaging height in mm 930

general data

EAN code 9120039903880



Please note that this machine is available in both 230V 16AMP supply of 400v 3 phase. The latter is a special order please contact us.

Due to the size of these machines, delivery has to be calculated on a specific location basis. So please feel free to purchase on line, we will contact you regarding shipping. Alternatively contact us and we can quote you a complete delivered price. Please not subject to the correct export paperwork from the purchaser this can be shipped outside the UK.
