Holzmann HBS450 Bandsaw | Poolewood

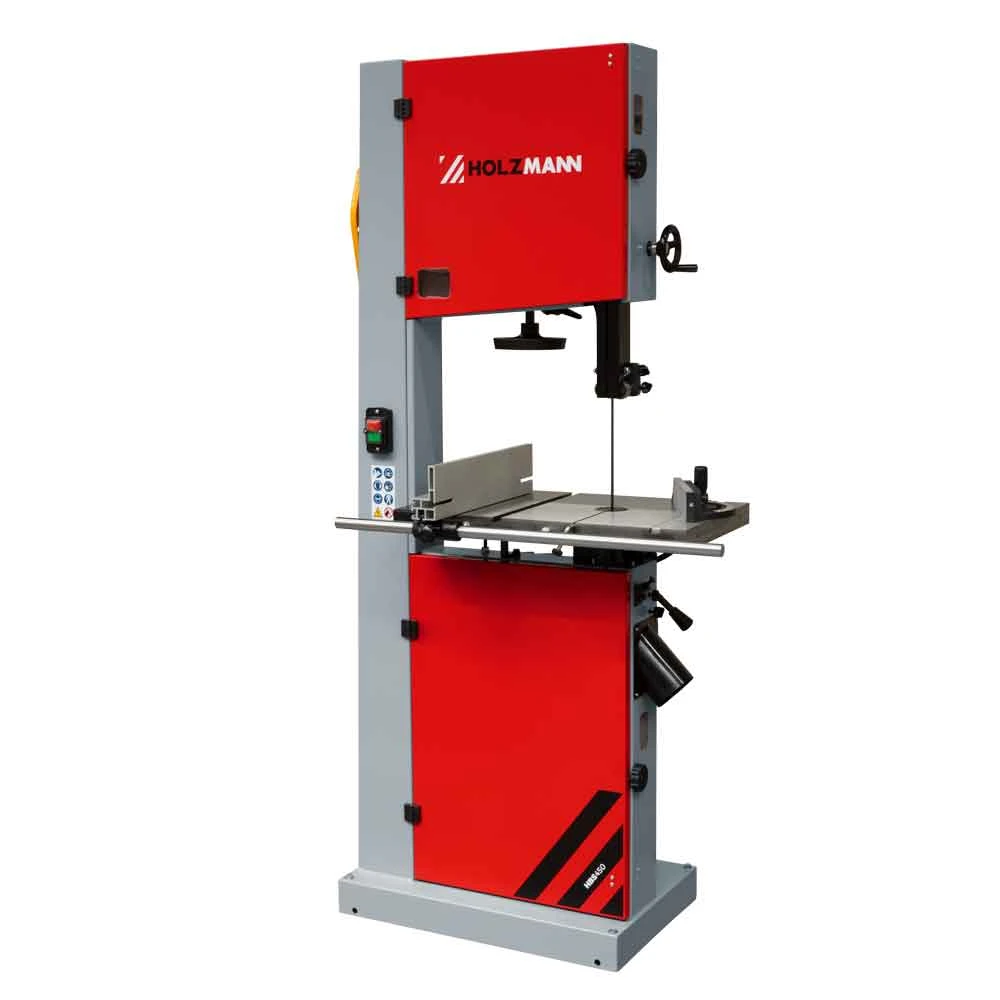

Holzmann HBS450 Bandsaw

Key Highlights of the Holzmann HBS450 Bandsaw:

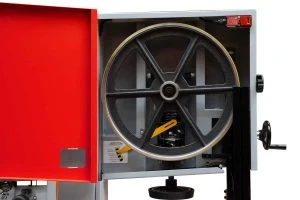

• cast iron wheels  450 mm diam
• stable parallel aluminium fence
• cutting height-adjustable via hand wheel and gear rack
• saw band width from 6mm to 33mm possible
• machine height: 191cm
• 2 saw band speeds (400 or 900m/min)
• table angle adjustment (5 to +45 degrees) via splined guide
• 2 dust collector connections (100mm)



included in delivery: stand, 1 x  bandsaw, mitre gauge, fence guide



Operating Features Features of the Holzmann HBS450 Bandsaw

• Max. cutting height / width 450 / 330 mm
• Closed sheet steel construction for high stability and accuracy

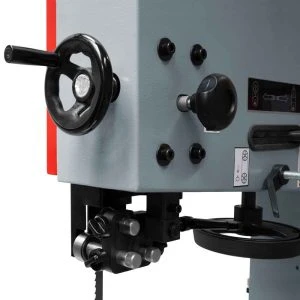

• Precise saw band guide system above and below the table
• Rubber-coated wheels ensure a prolonged saw band durability
• XL grey cast iron table
• Saw band width from 6mm up to 33mm
• Blade length 3886mm
• Overall height: 1910mm
• Motor power 2000watt / 230volt
• Weight 161kg

Technical Details

Motor power 1500watt (2hp)

Voltage 230 V / 50 Hz

Cable length 3 m

measurements

Blade to neck (throat size) 447mm

Table size 546 x 400mm

Table height 960mm

Suction port 2 x Ø 100mm dia.

Dimensions in mm 958 x 664 x 1910mm

cutting performance

Max. cutting width at parallel fence in mm 393

band saws

Saw band length 3886mm

Saw band width 6 – 33mm

Saw band speed in m/min (I): 400 (II): 900

Flywheel diameter in mm 450

volume level and vibration

Sound power level in dB(A) 100

Sound pressure level in dB(A) 90

weight

Gross weight 180kg

Net weight 161kg

Packaging

Packaging width in mm 490

Packaging length in mm 760

Packaging height in mm 2.050



Please note that this machine is  230V.
