Holzmann HBS400 400mm Bandsaw

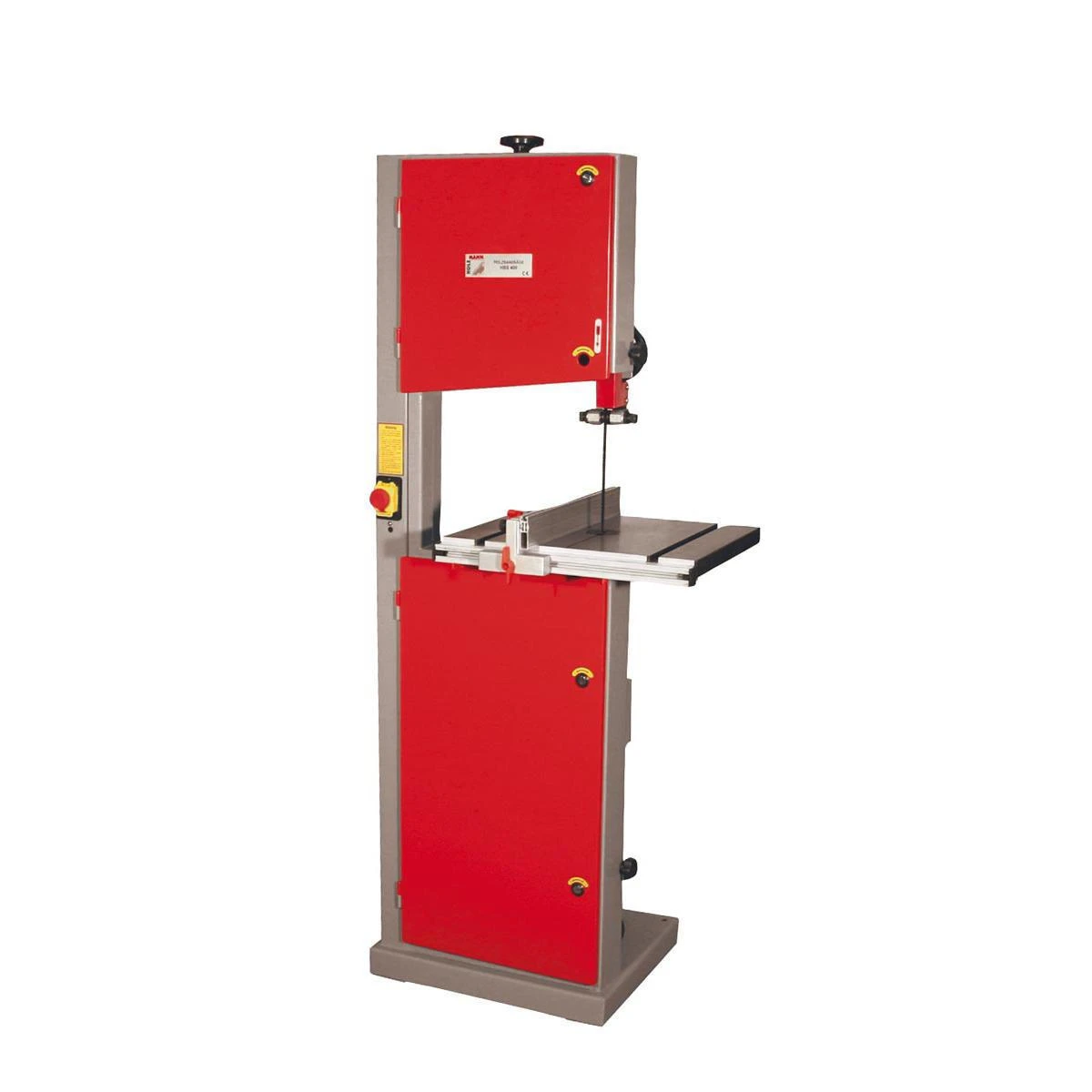

The Holzmann HBS400 400mm Bandsaw with a 380 x 220 mm width / depth of cut, blade width 6-20mm, cast iron table & band wheels, rip fence with scale & quick lock, mitre attachment and a 1100W (S1) 230v motor. Trade & light professional.



Please note a 400V 3 phase option is available contact us if this is of interest to you.

Highlights:

• Precision saw band guide can be precisely positioned using a handwheel and rack
• Aluminum stop with measuring scale and quick release fastener
• Saw band width from 6mm to 20mm possible

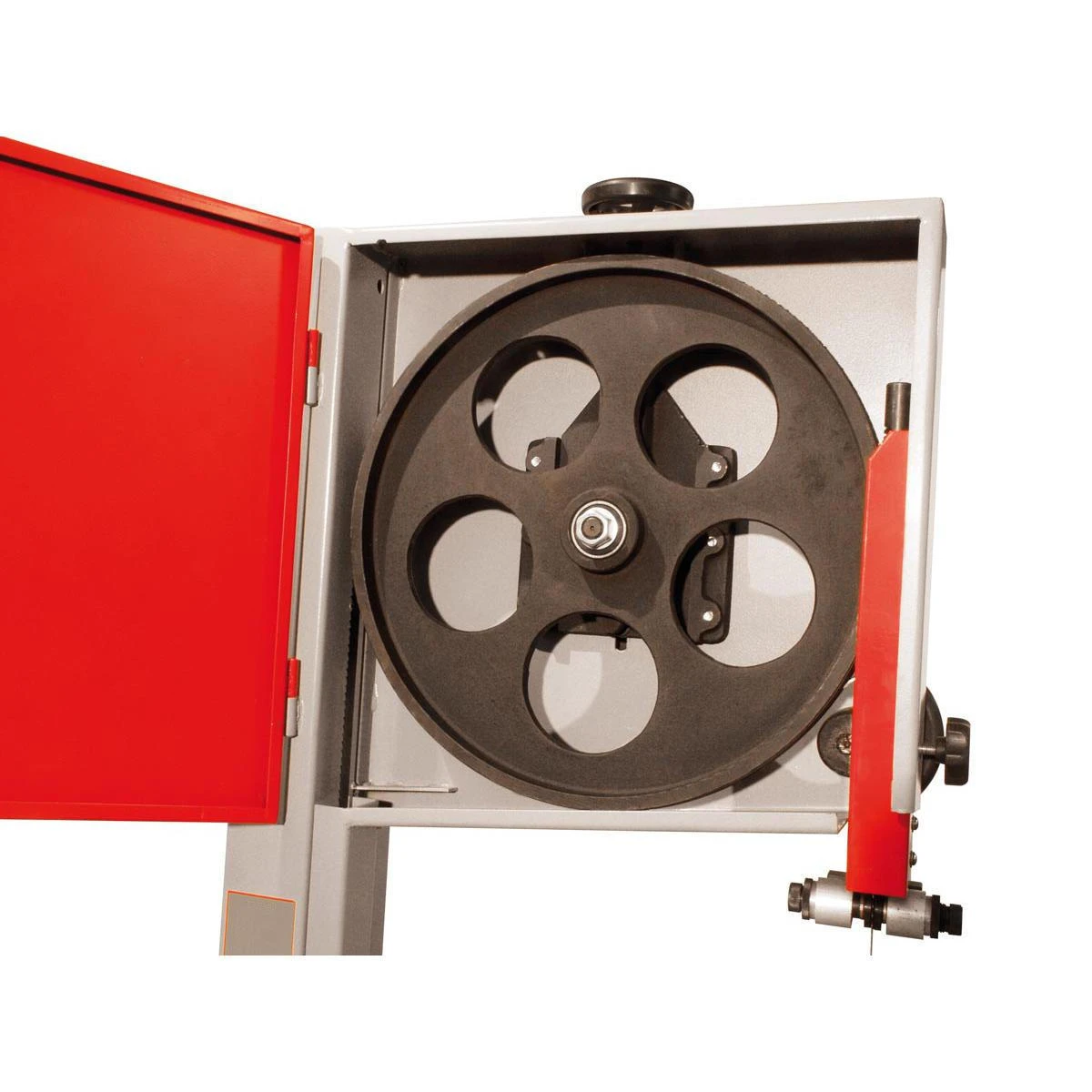

• Robust cast iron impeller with rubberized running surface
• High stability through massive sheet metal construction with the smallest space requirement
• Machine height: 175cm

Scope of delivery: 1x saw band, miter ruler, stop



Technical Details:

• Motor power s1: 1100 W Motor power s6: 1500 W Voltage: 230
• Suction port: 100 mm
• Table height: 990 mm
• Outreach: 380mm
• Tablesize: 500×400 mm

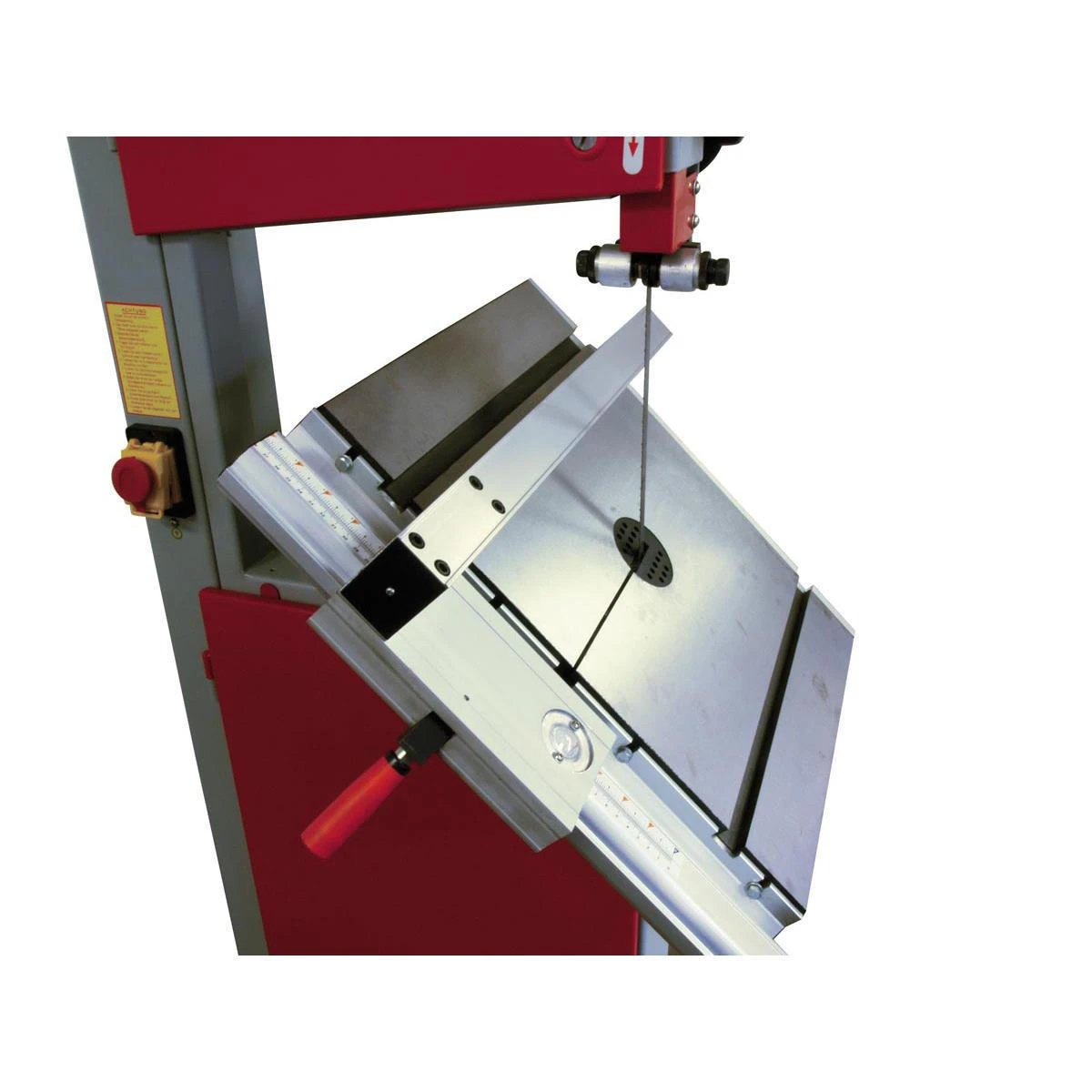

• Swivel range: 0°-45°
• Max. cutting height 90°: 220 mm
• Max. cutting width at parallel fence: 240 mm
• Saw band width: 6-20 mm
• Flywheel diameter: 400 mm
• Saw band: 2950 mm
• Gross weight: 137 kg Net weight: 127 kg
• Packaging length: 1.760 mm Packaging width: 600 mm Packaging height: 480 mm
