Fox F22-564-250 Planer Thicknesser Plus Spare Blades

Original price was: $271.00.Current price is: $96.99.

Motor:230V 50Hz 1500W (Brush)
Blade Size:261×16.5×1.5
Blade speed:9000 r.p.m.
Cutting times:18000
Max cutting width:254mm
Max cutting depth per pass:jointer 0~3mm planer0~2mm
Feeding speed:6m/min
Range of cutting depth:5-120 mm
Min cutting length-Thicknessing:1000mm
Table size of jointer:920×262mm
Table size of planer:270×290 mm
G.W 33.5Kg
Packing size: 1030×520×427 mm
Aluminium parallel fence : 635x124mm

No Compromise on Quality

The home of quality products.

Shop with confidence, we guarantee quality.

Safe Transactions, Happy Customers

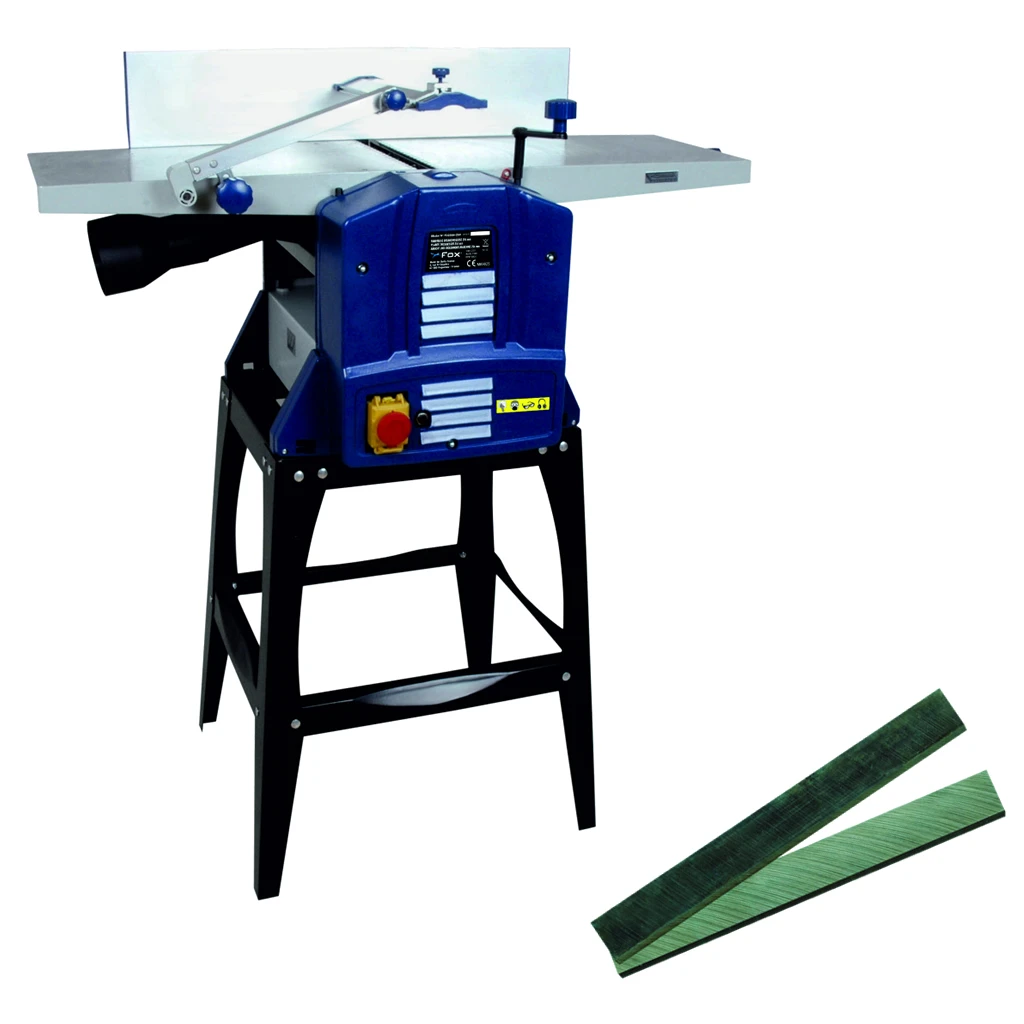

Fox F22-564-250 planer thicknesser plus spare blades

Fox F22-564-250 planer thicknesser plus spare blades. This Machine is a 1500W portable planer/thicknesser. This machine is therefore aimed at the small workshop where space is at a premium.

It is also of great value where high levels of portability are required. Offering a surface planing width of 254mm (10″), coupled with a thicknessing capacity of 254 x 127mm (10″ x 5″), the F22-564-250 can therefore tackle up to 3mm per pass. A block speed of 9000rpm also contributes to a quality plane finish.

It also has table size of 920 x 262mm and a tilting aluminium fence measuring 635 x 124mm. Therefore timber can be trued or bevelled with ease.

Conversion to the thicknessing mode is also straightforward. All that is required is the fence assembly to be removed, the blade guard to be repositioned and the chip collection hood to be placed over the cutting block.

Height adjustment is made by a well positioned crank handle.
