Charnwood N3RPJ Ripple Jaws for Nexus 3 Chuck – N3RPJ

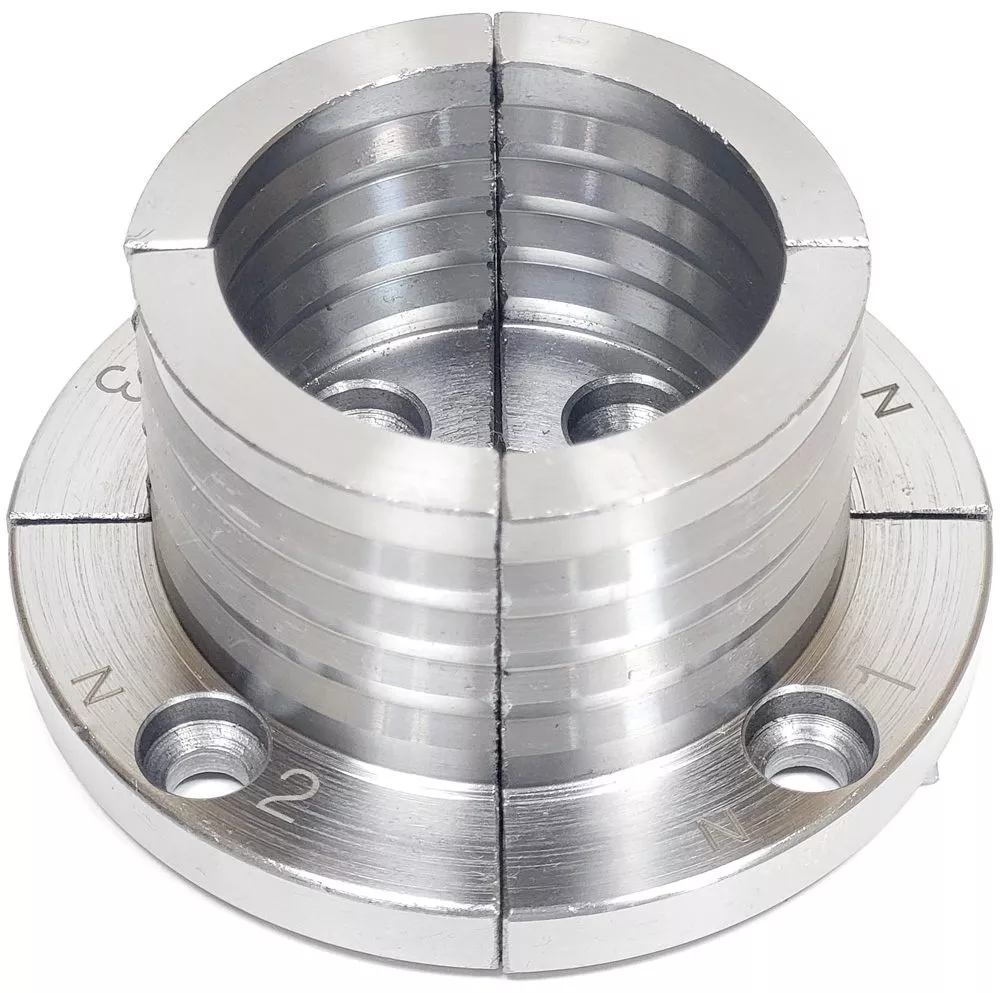

Charnwood N3RJP Ripple Jaws for the Nexus3 Chuck have ripple patterns on both the inside and outside of the jaws. Ripple jaws should provide a strong grip on uneven surfaces, for example bark covered wood. The Jaws project 30mm from the base plate.

• Ripple Jaws for Nexus3 Chuck.

  Charnwood N Type jaws are designed for use with our Nexus3 chuck as well as some other brands.

  A set of 4 optional jaws for the Nexus3 geared scroll chuck. The Ripple pattern on both the inside and outside of these jaws is designed to give a strong grip on rough or even bark covered wood. Jaws project 30mm from the base plate.

  • Expands from 52mm to 79mm
  • Contracts from 67mm to 40mm

  Jaws for the Nexus3 are compatible with the following chucks:

  • Charnwood Nexus3 (Use existing Jaw Screws)
  • Supernova (Requires our N3JS, 8 piece Jaw Screw Set)
  • G3 Nova (Requires our N3JS, 8 piece Jaw Screw Set)
  • Robert Sorby Patriot (Requires our N3JS, 8 piece Jaw Screw Set)
  • Record Power SC3 (Requires our N3JS, 8 piece Jaw Screw Set)
  • Record Power SC4 (Requires our N3JS, 8 piece Jaw Screw Set)

  Please note: All dimensions stated are when fitted to a Charnwood Nexus3 chuck. When these jaws are fitted to a compatible chuck, the dimensions will change, depending upon the amount of jaw travel it has.
