Charnwood W813P Lathe With VIPER3R Chuck | Poolewood
Original price was: $344.00.$98.99Current price is: $98.99.
Distance between centres 900mm (36″)
Distance over bed 310mm (12″)
Motor (Induction) 550w (3/4hp)
Speed ranges 10 (500 – 2000RPM)
Spindle thread size M33 x 3,5
Spindle tapers 2MT
Dimensions (WxDxH) 1700mm x 450mm x 1120mm
Weight 82kg
Rating Hobby
Warranty 5 Year
VIPER3:
Direct Mounting Thread M33 x 3.5
Chuck Body Diameter 95mm
Standard Jaws Expand from 45mm to 82mm
Standard Jaws Contract from 69mm to 32mm
Weight 1.9kg
Rating Trade
Warranty 1 Year
- No Compromise on Quality
- The home of quality products.
- Shop with confidence, we guarantee quality.
- Safe Transactions, Happy Customers

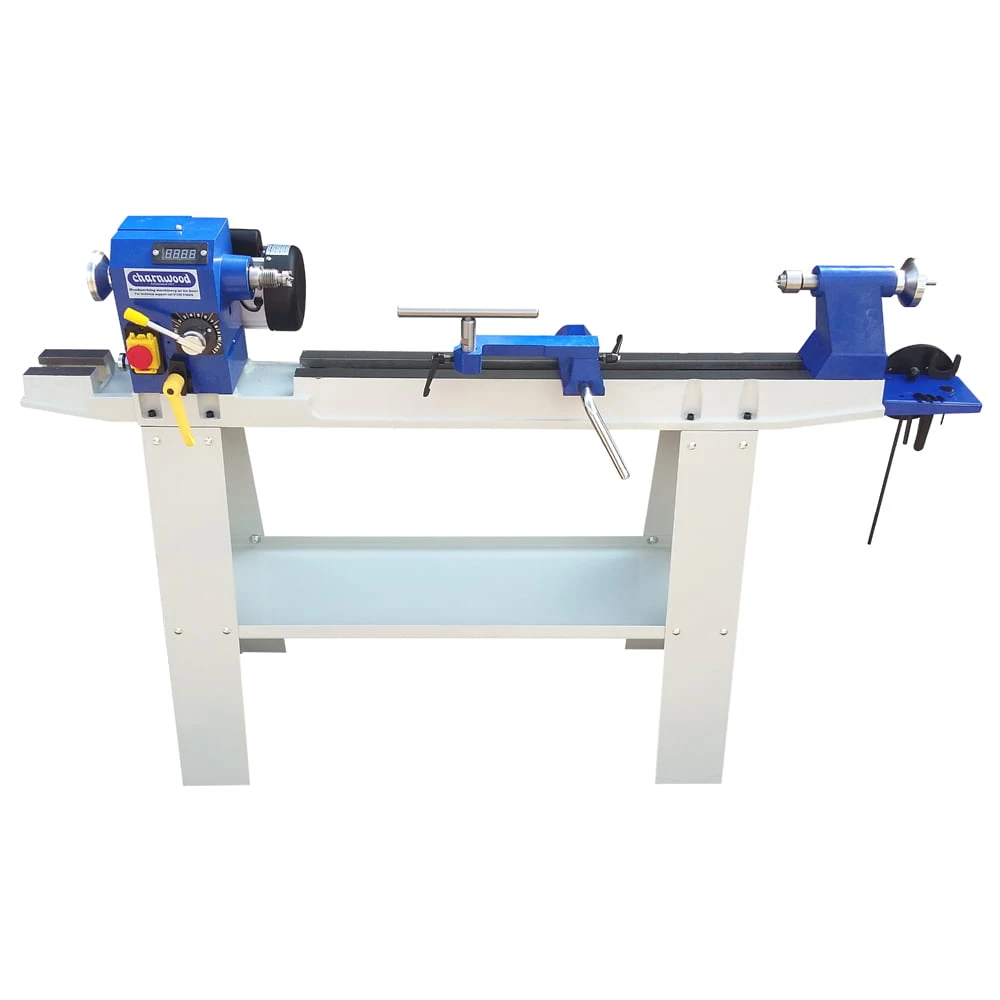

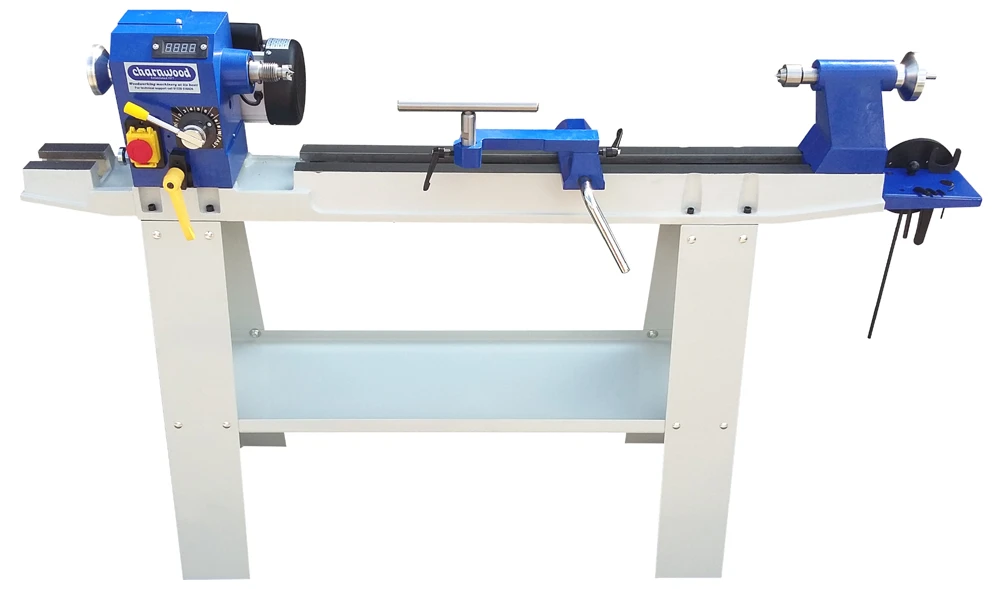

Charnwood W813P Floorstanding lathe with Electronic Variable Speed and VIPER3R Chuck
- W813 12″ x 36″ Variable Speed Lathe
- Viper3R: 4 Jaw Geared Scroll Chuck
W813: An excellent all rounder which therefore makes a very good first lathe. Although the overall design has not changed for many years Charnwood have given this lathe a make over and therefore uprated many of the components.
- 550w (3/4hp) Induction Motor
- New Toolrest Design
- Easy-Operation Camlock Design
- New Accessories Holder
- 12″ Bowl Turning Capacity
- 36″ Spindle Turning Capacity
- Mechanical Variable Speed
- Digital RPM Speed Display
- Hollow Head & Tail Stocks

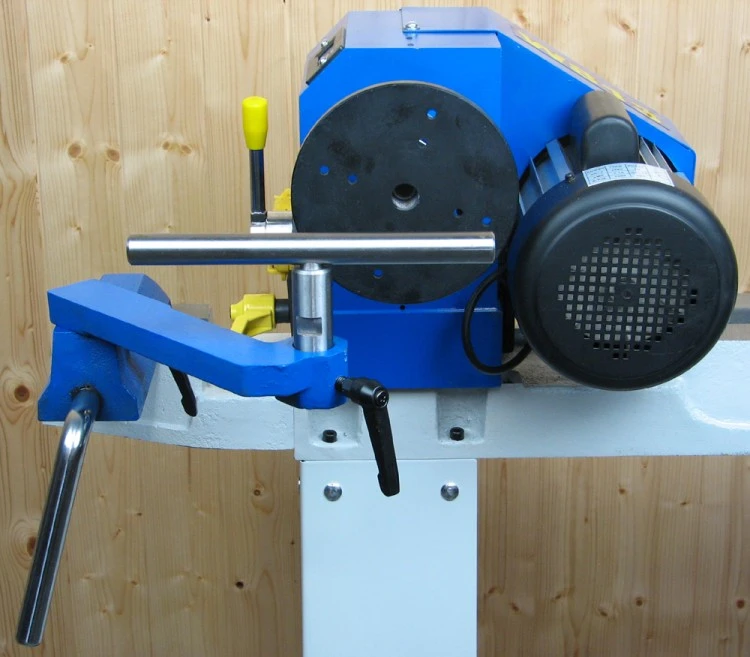

- Rotating Headstock for Maximum 15″ Diameter x 3″ Depth Bowls using the Faceplate
- Sturdy Floorstand with Shelf Included
Key Features of W813P
Cast iron construction, precision machining and great value for money are thus the key features of this woodturning lathe.

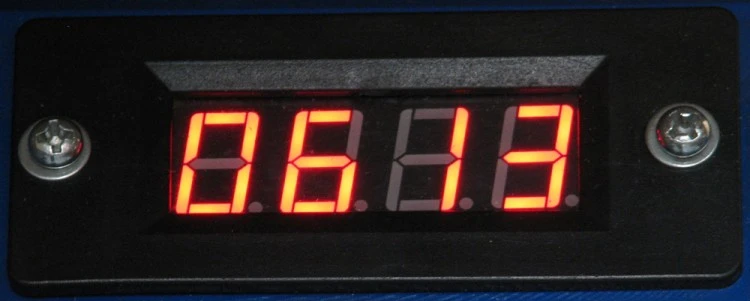

This new version also has an upgraded, more powerful, induction motor. A digital speed readout also accurately displays the rpm speed of the spindle.

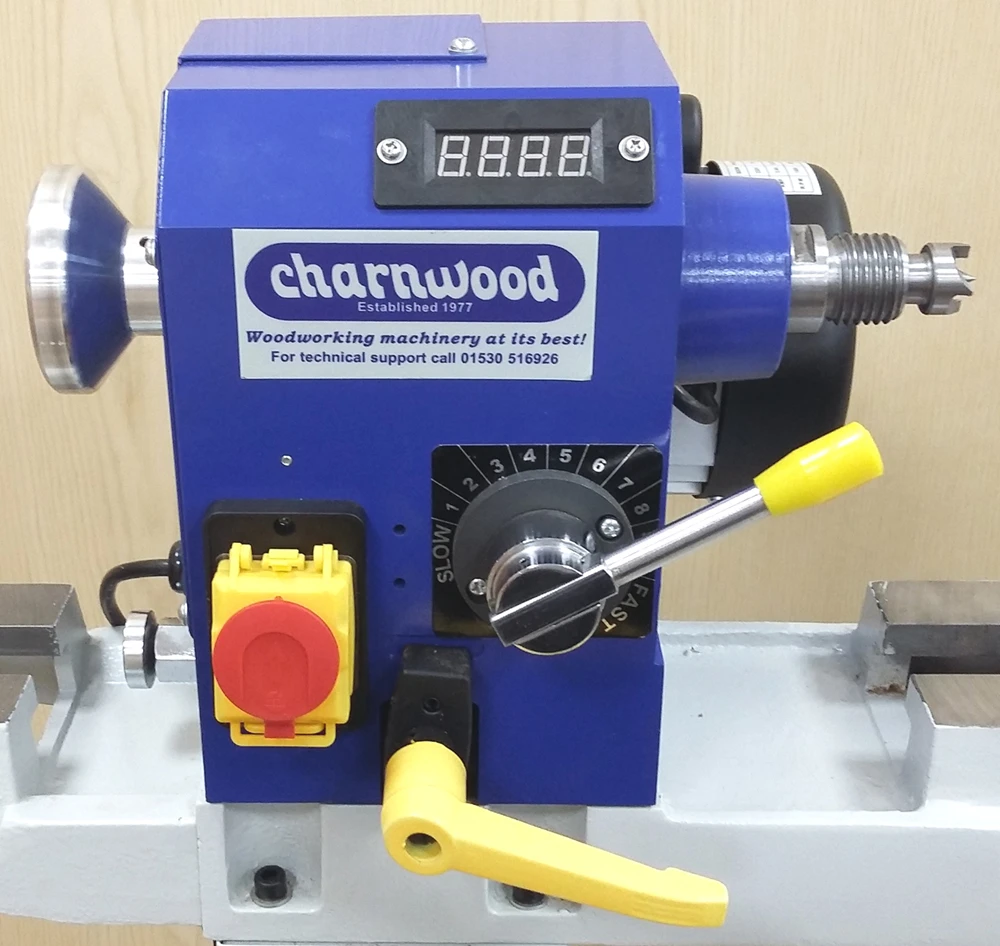

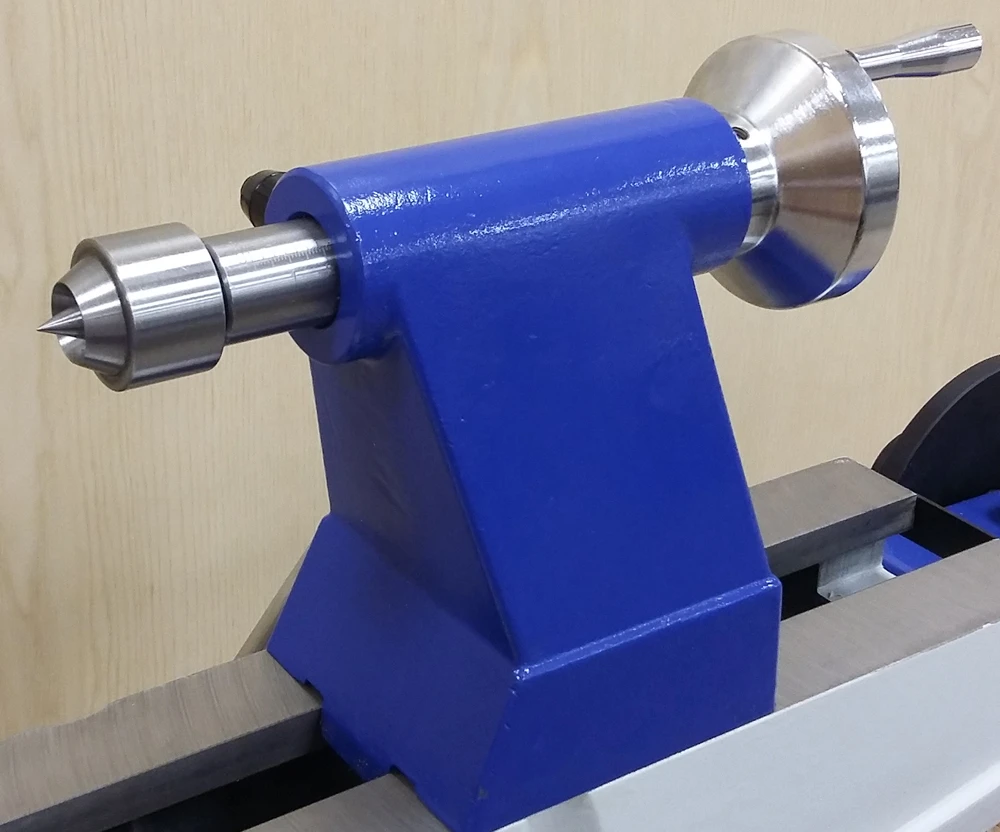

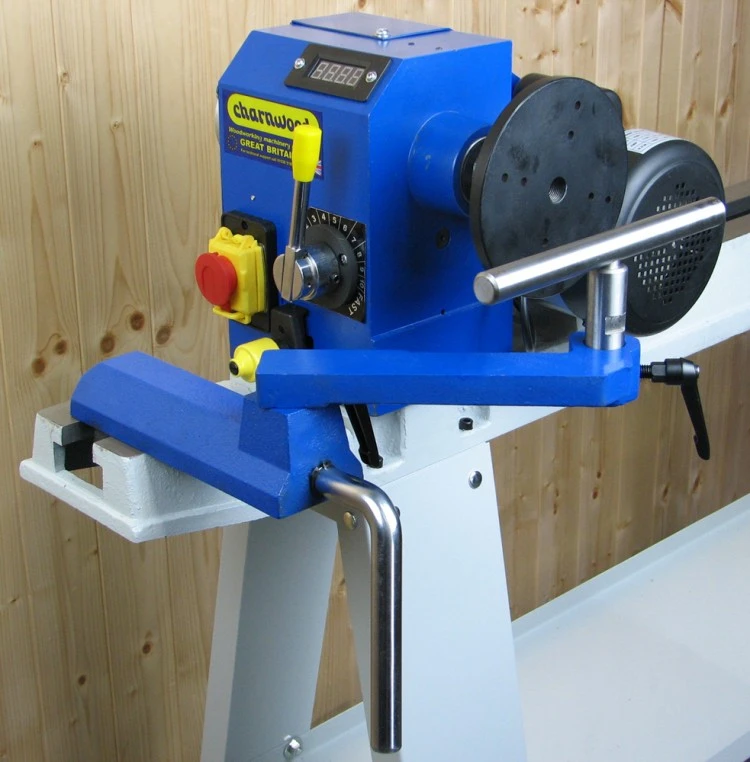

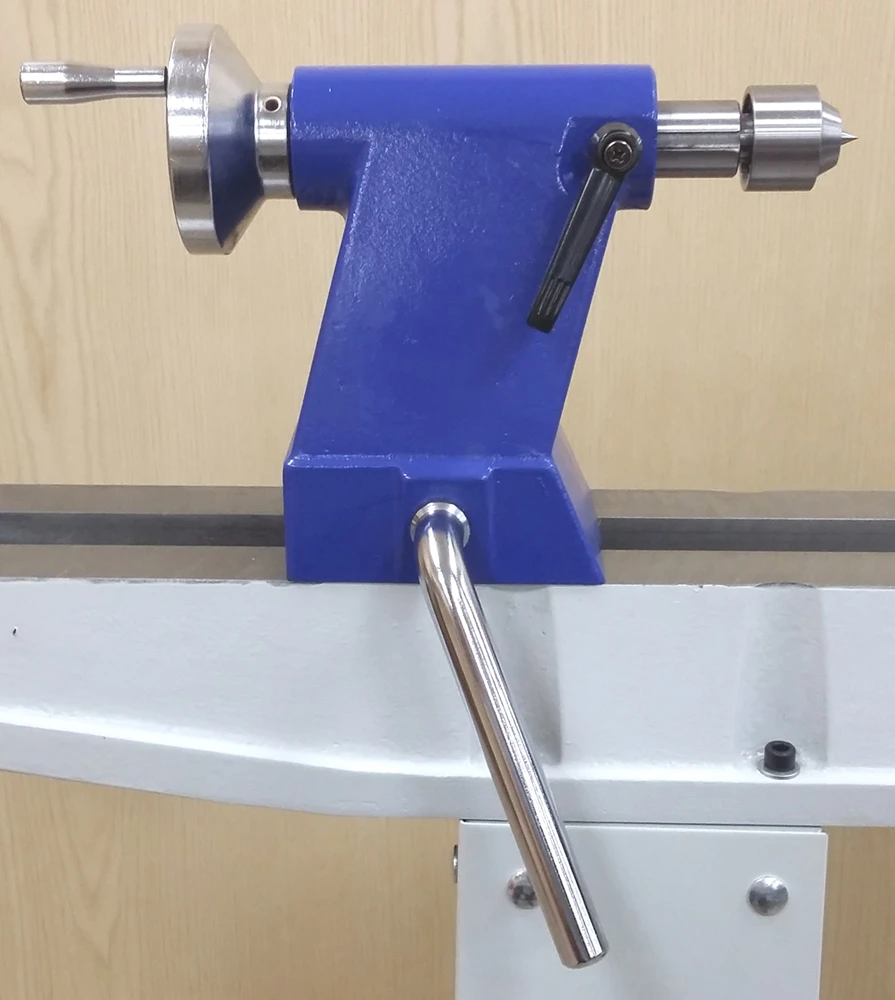

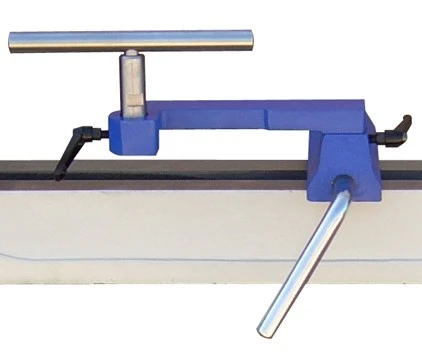

Spindles of up to 12″ diameter and 36″ in length can be precisely turned over the bed using the cam-lock sliding toolrest. The sliding tail stock also uses a cam-lock for quick adjustments. The rotating headstock design also allows for larger diameter work. Therefore bowl turning, of up to 15″ in diameter can be turned over the front of the machine. Obtaining the correct speed for cutting is no problem with the variable speed controller with 10 locator stops, which operates at the turn of a lever. When using the headstock rotated to the front, the extendable toolrest can be positioned on the left hand side using the extension bed supplied.

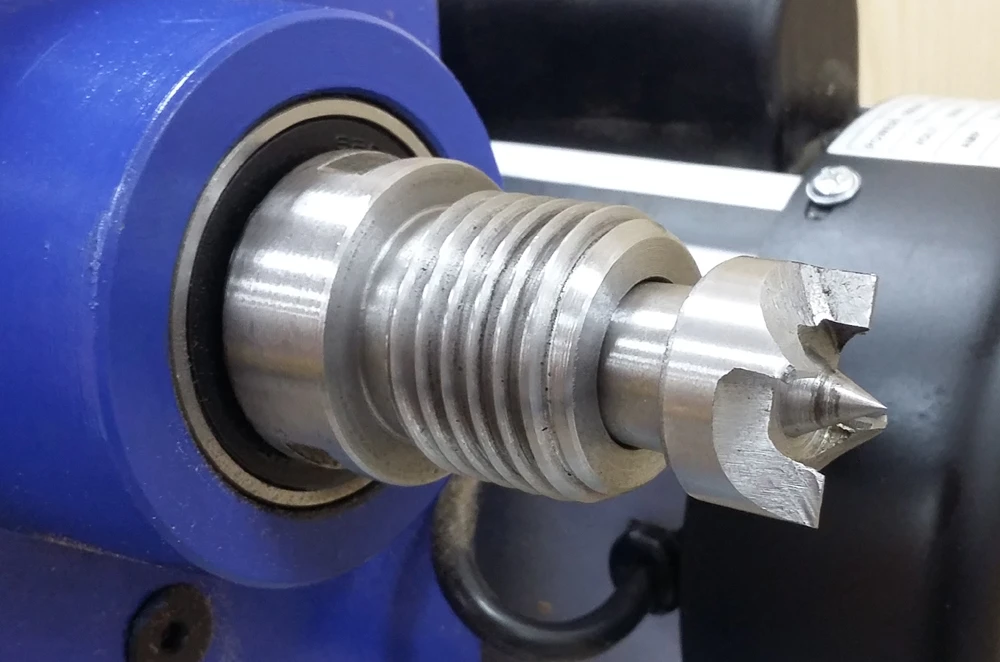

Supplied with hollow headstock and tailstock suitable for long hole boring, floorstand, NVR switch, 225mm long toolrest with 25mm shank, 4 prong drive centre 2MT, revolving tail centre 2MT, 6″ diameter faceplate, knock out bar, cable and plug.

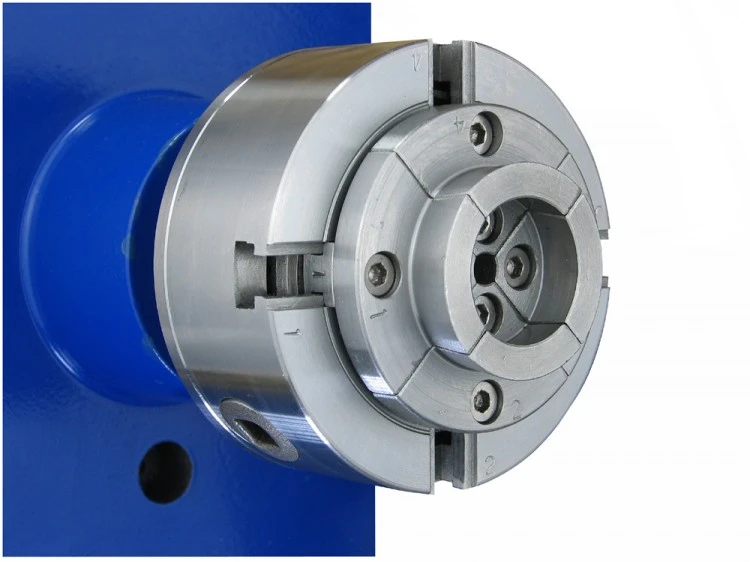

The Viper3R chuck, is a verstaile 100mm 4 jaw scroll chuck. There are numerous accessory jaws available and it is cpompatible with many other chucks on the market for quick interchange of jaws.
The optional wheelbase is an excellent addition for anybody who needs to move this lathe around the workshop.
