Charnwood W813 Floorstanding Woodturning Lathe | Poolewood
Original price was: $349.00.$98.99Current price is: $98.99.
Charnwood W813 Specification
| Max. spindle length (without centres) | 910mm (36″) |
| Max. spindle length (with centres fitted) | 800mm (32″) |
| Swing over bed (Max. bowl diameter) | 310mm (12″) |
| Swing over banjo (Max. bowl diameter) | 230mm (9″) |
| Motor (Induction) | 550w (3/4hp) |
| Speed ranges | 10 (500 – 2000RPM) |
| Spindle thread size | M33 x 3.5 |
| Spindle tapers | 2MT |
| Dimensions (WxDxH) | 1700mm x 450mm x 1120mm |
| Weight | 82kg |
| Assembly Time Required | 30 Minutes (Needs 2 People) |
| Rating | Hobby |
| Product Guarantee | 5 Years |
- No Compromise on Quality
- The home of quality products.
- Shop with confidence, we guarantee quality.
- Safe Transactions, Happy Customers

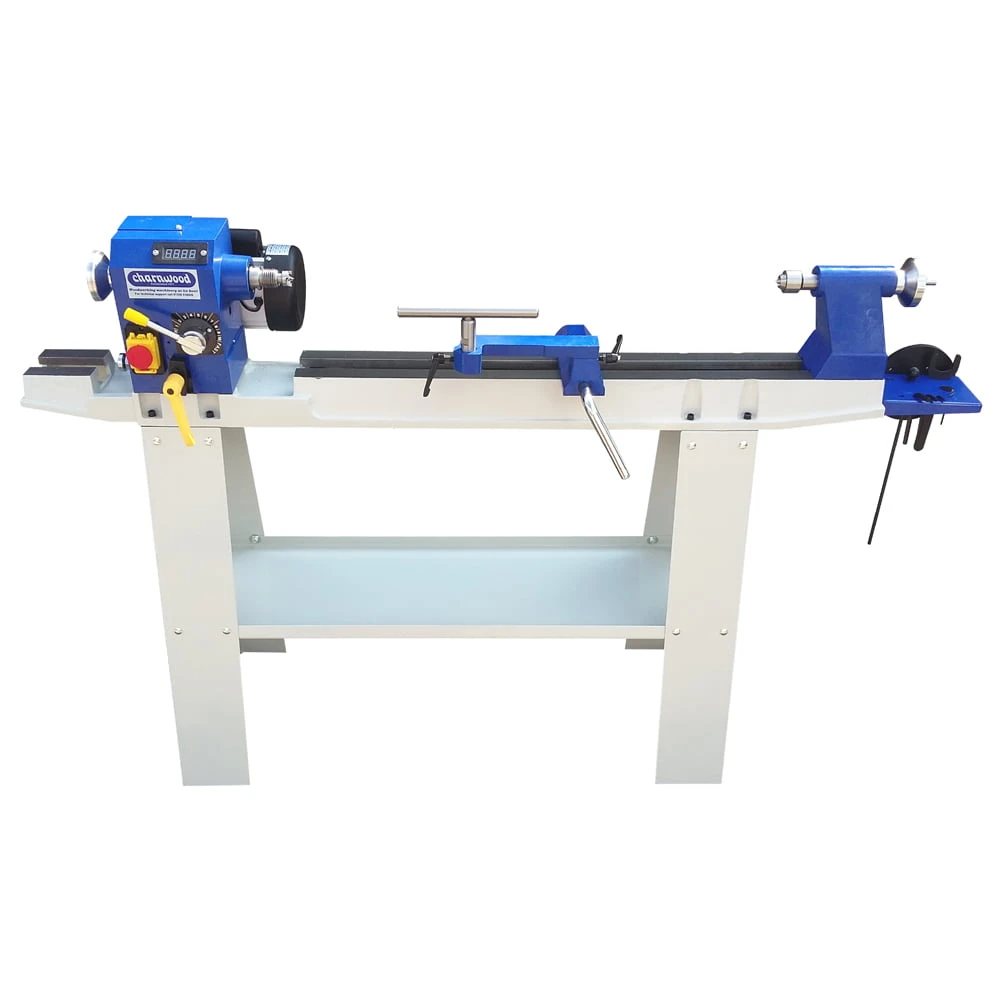

Charnwood W813 Floorstanding Woodturning Lathe
Charnwood W813 Floorstanding Woodturning Lathe: An excellent all rounder which therefore makes a very good first lathe. Although the overall design has not changed for many years Charnwood have given this lathe a make over and therefore uprated many of the components.
- 550w (3/4hp) Induction Motor
- New Toolrest Design
- Easy-Operation Camlock Design
- New Accessories Holder
- 12″ Bowl Turning Capacity
- 36″ Spindle Turning Capacity
- Mechanical Variable Speed
- Digital RPM Speed Display
- Hollow Head & Tail Stocks

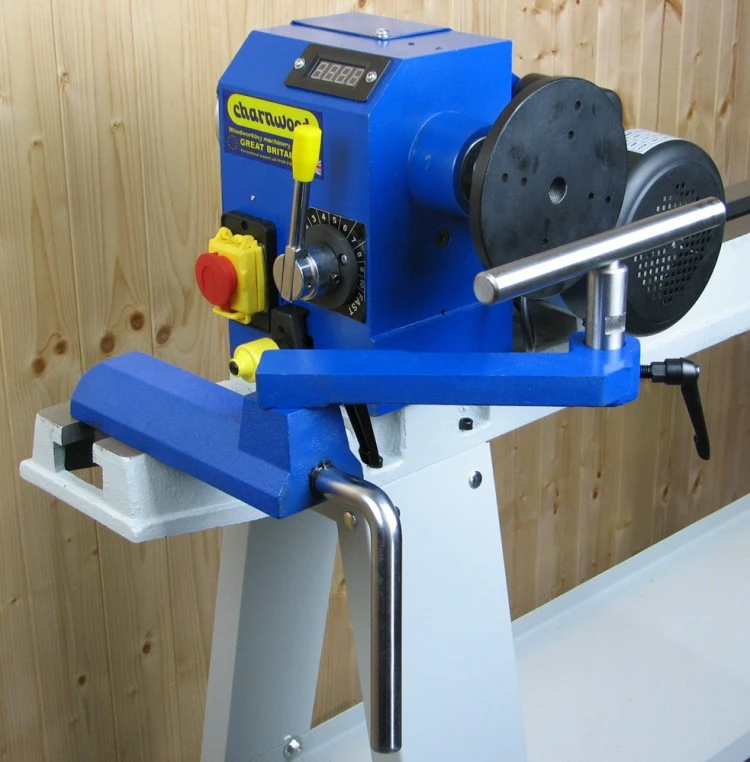

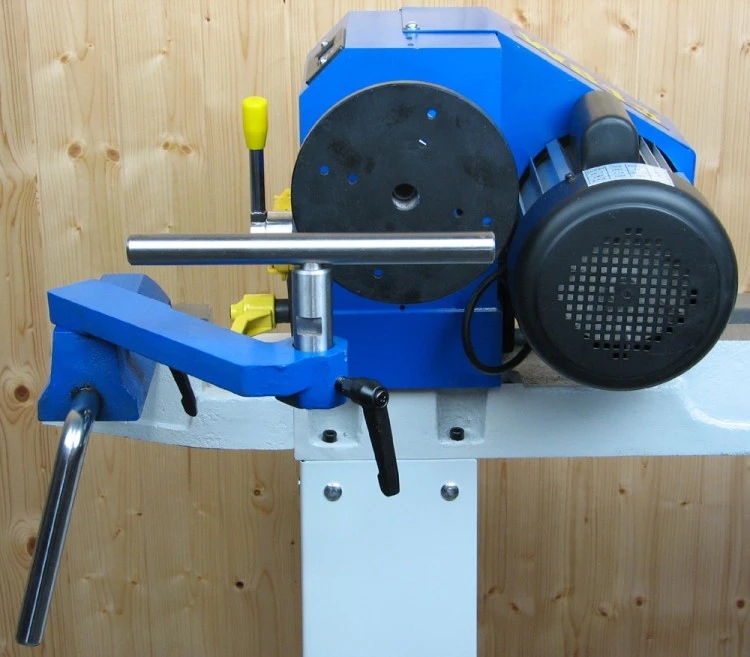

- Rotating Headstock for Maximum 15″ Diameter x 3″ Depth Bowls using the Faceplate
- Sturdy Floorstand with Shelf Included
Key Features of W813
Cast iron construction, precision machining and great value for money are thus the key features of this woodturning lathe.

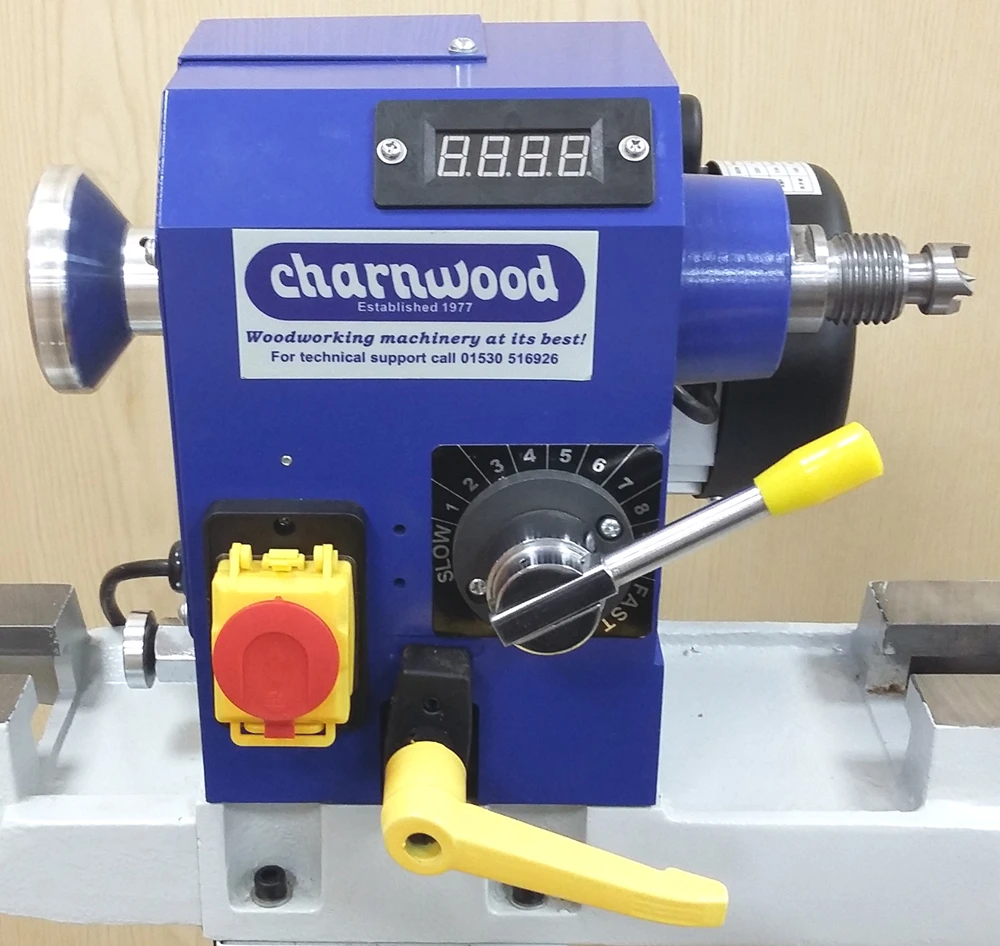

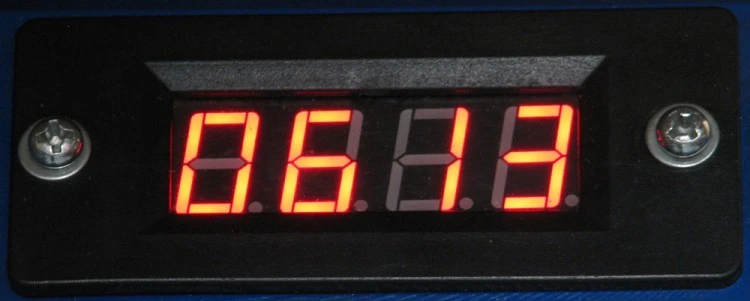

This new version also has an upgraded, more powerful, induction motor. A digital speed readout also accurately displays the rpm speed of the spindle.

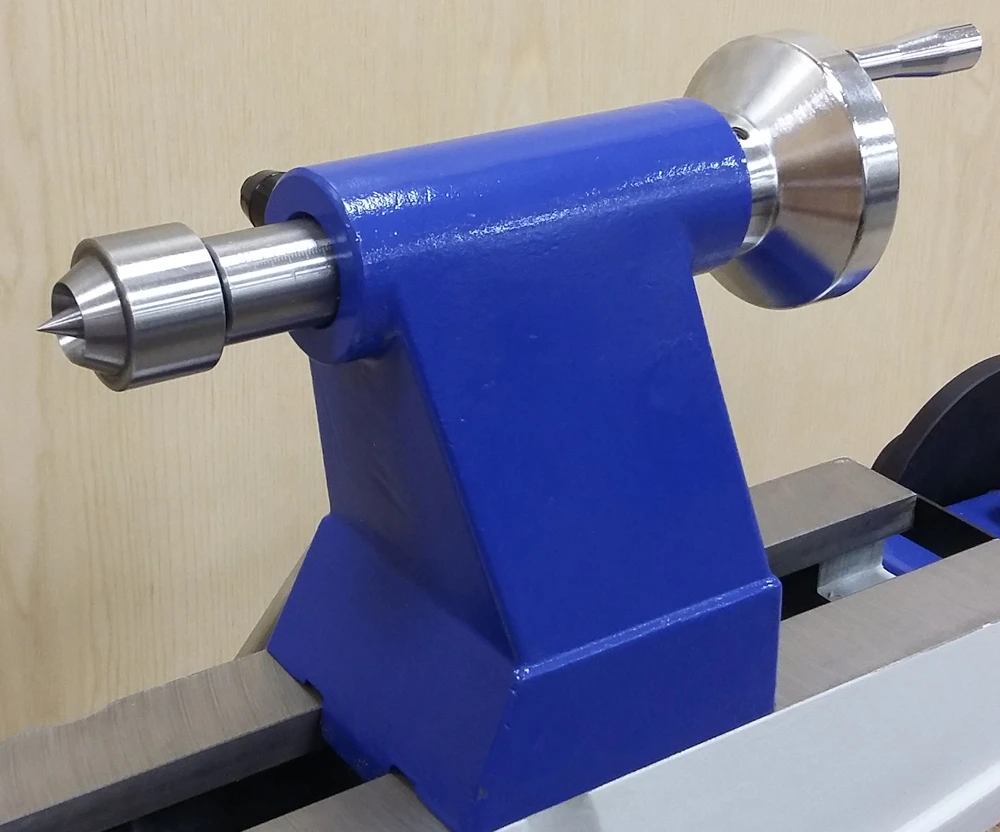

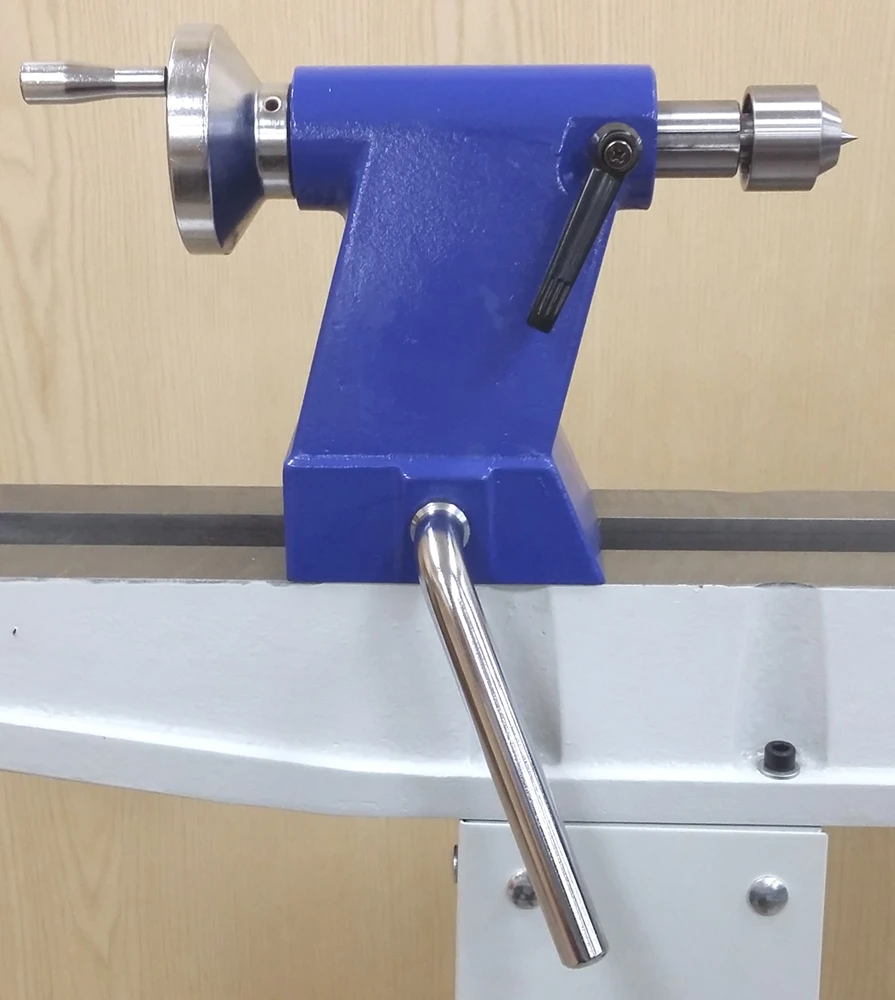

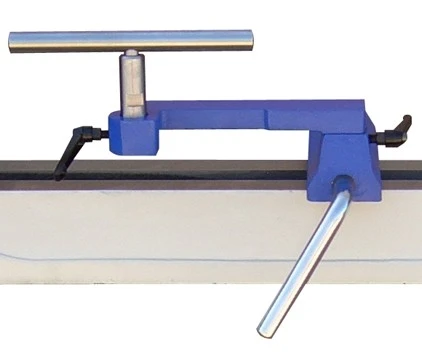

Spindles of up to 12″ diameter and 36″ in length can be precisely turned over the bed using the cam-lock sliding toolrest. The sliding tail stock also uses a cam-lock for quick adjustments. The rotating headstock design also allows for larger diameter work. Therefore bowl turning, of up to 15″ in diameter can be turned over the front of the machine. Obtaining the correct speed for cutting is no problem with the variable speed controller with 10 locator stops, which operates at the turn of a lever. When using the headstock rotated to the front, the extendable toolrest can be positioned on the left hand side using the extension bed supplied.

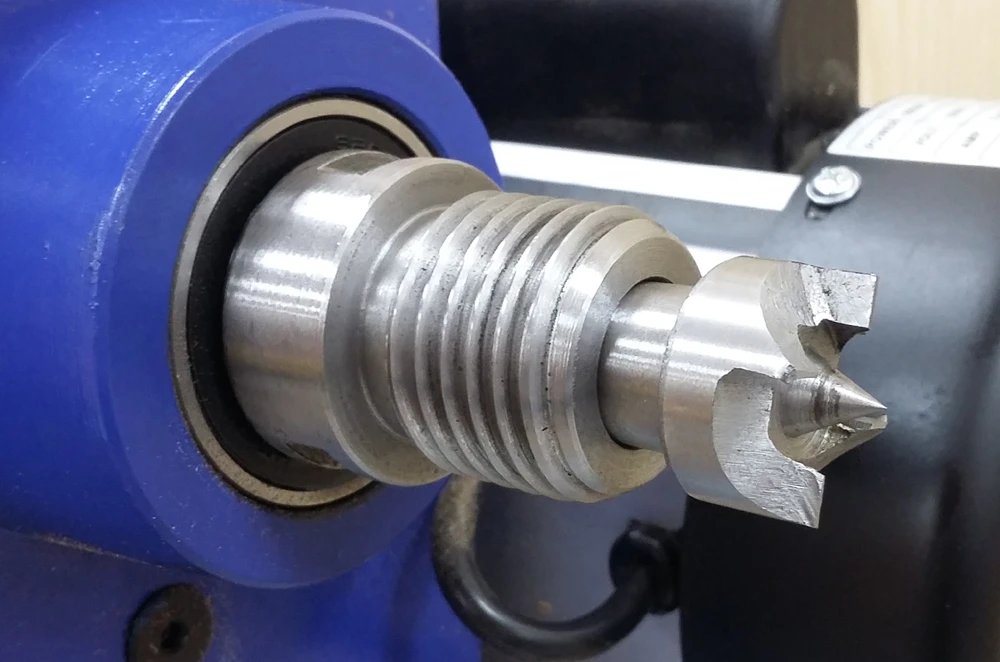

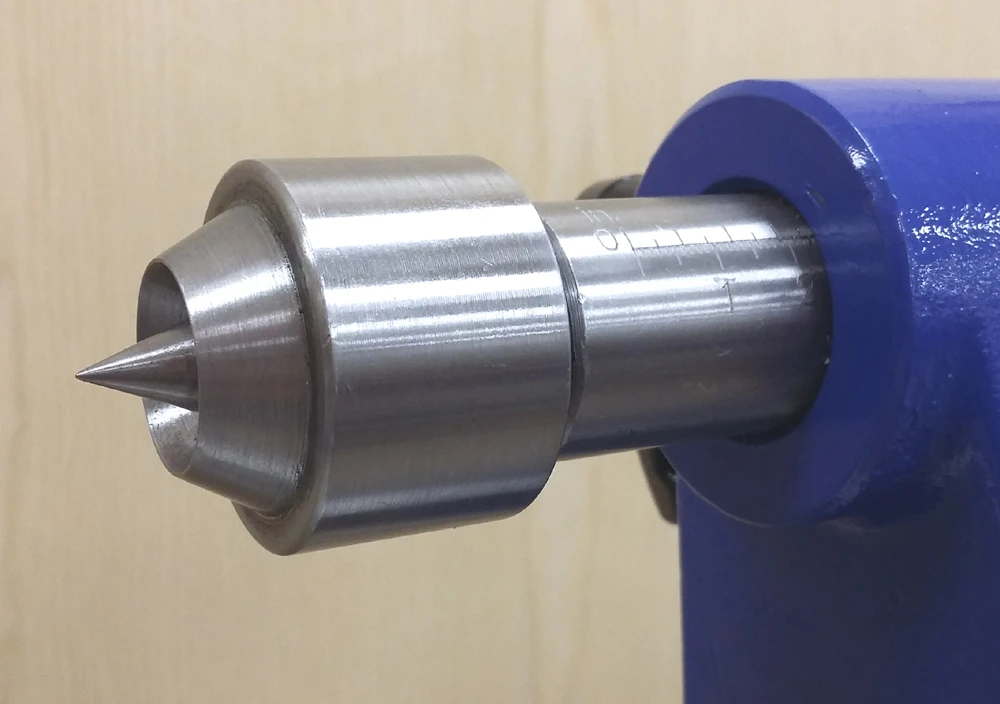

Supplied with hollow headstock and tailstock suitable for long hole boring, floorstand, NVR switch, 225mm long toolrest with 25mm shank, 4 prong drive centre 2MT, revolving tail centre 2MT, 6″ diameter faceplate, knock out bar, cable and plug.
The optional wheelbase is an excellent addition for anybody who needs to move this lathe around the workshop.
