Charnwood W792CF Dust Extractor Available In 240v & 415V – Poolewood

Charnwood W792CF Dust Extractor

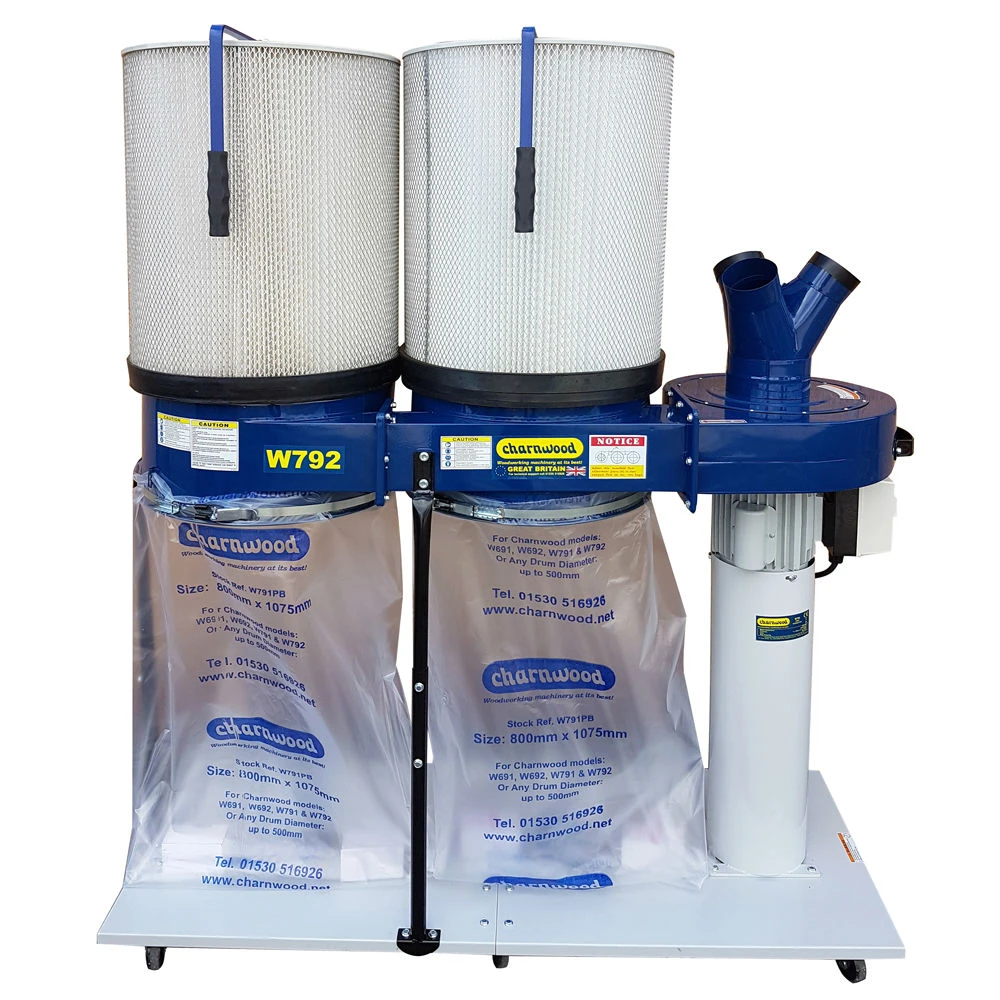

This is Charnwood W792CF Dust Extractor is the W792 supplied with 2 x CF2024 1 micron cartridge filter.

The Charnwood W792 Dust Extractor is biggest dust extractor in the Charnwood professional range. It has two large collection bags therefore allowing it to run for longer times between emptying. This is also a very popular machine with the professional workshops, as it allows continuous running all day and can operate very effectively with up to 3 machines at any one time. Please look at our Dust Extraction accessories, where we list many items to help design and instal your bespoke ducted system. We are always happy to help spec up the system with the corrects parts and accessories.

Please note the 3 phase 415V version has been discontinued.

The Key features of this machine are :



• Available in 240v only
• Quiet Induction Motor
• Up to 8 hours Continual Running
• Super Fine 2 micron Filter
• Transparent Collection Bag
• Wheels Included For Portability

The high volume of air moved also means this unit is therefore capable of extracting from up to three machines simultaneously or through a longer hose system than smaller machines. Hose systems can therefore include branches off to different dust producing machines around the workshop. The maximum recommended hose length between extractor and collection point is 10 metres. There is no limit to the total length of hose used in the network but any unused branches must be capped off or closed using a gate when not in use.

The fine filter cartridges make the unit suitable even for MDF dust.

Supplied with:

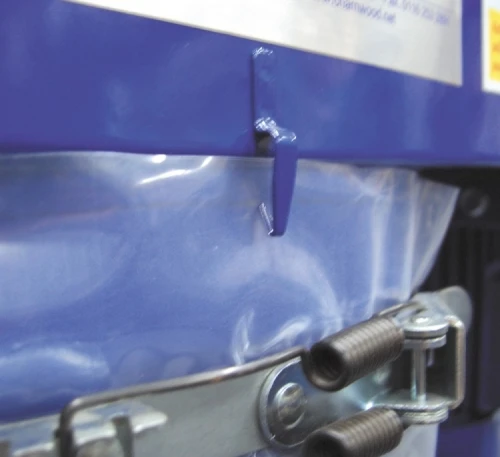

The Charnwood W792 Dust Extractor is also fitted with a steel fan. 3 way outlet. four rubber wheels.NVR switch and quick release metal straps on all bags. A 16 amp supply is required to run the 240v single phase version of this machine. Hose is not supplied as standard,  100mm diameter transparent hose is recommended. We also sell this by the metre.
