Charnwood W692CF Dust Extractor With 1 Micron Filters- Poolewood

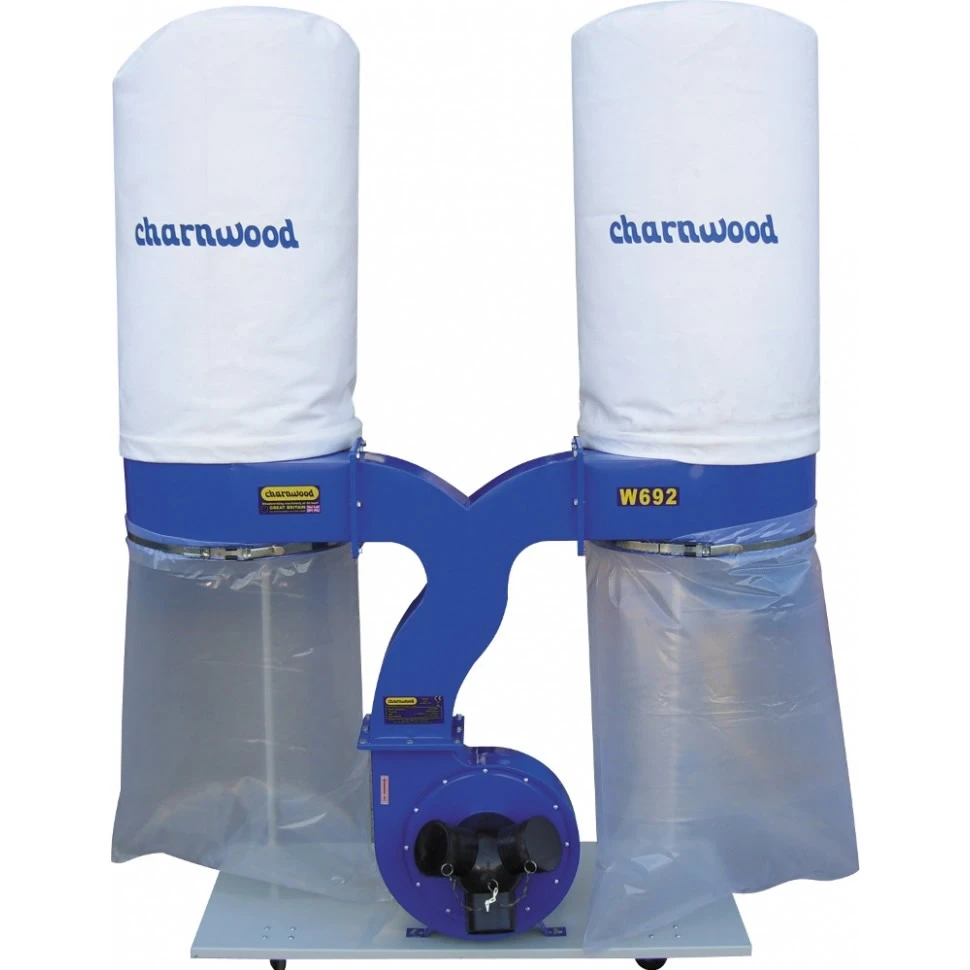

Charnwood W692CF Dust Extractor

The Charnwood W692CF Dust Extractor is the W629 with 1micron filters sold as a package deal. The W629 is largest extractor aimed at workshops where extraction is not continuously needed.

Key Features

• Powerful & Quiet 3hp Induction Motor
• 2 Inlets For Simultaneous Extraction

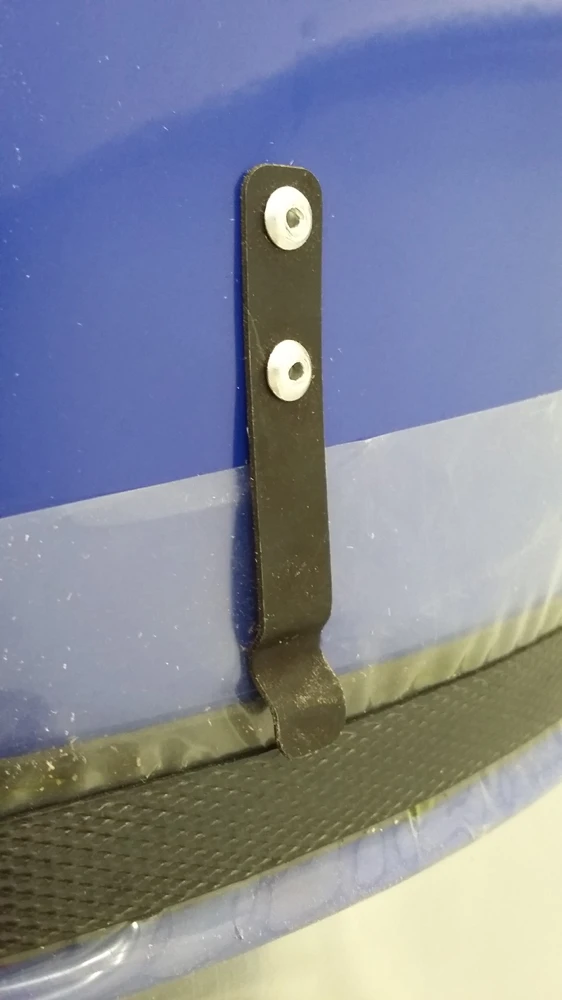

• Quick Action Metal Bag Straps
• Transparent Heavy Duty Collection Bag
• 5 Micron Filter Bag
• 16amp Connection Required (please note no plug is provided they can however, be purchased as an optional extra. Also these machines can be hard wired)

The Charnwood W692 Dust Extractor is a powerful machine.  Given its higher flow rate per hour therefore allowing a longer hose length to be attached. It can also enable a small system of branches and gates to be fitted around the workshop thus creating a ducted system.

The largest in this Charnwood range, the Charnwood W692 Dust Extractor is for users who occasionally need a very high air volume. The two collection bags are filled together so that emptying is required less frequently. It can also be used to collect from up to three machines simultaneously or attached to a system of branches and gates to be fitted around the workshop. Maximum recommended total hose length is 10 metres.

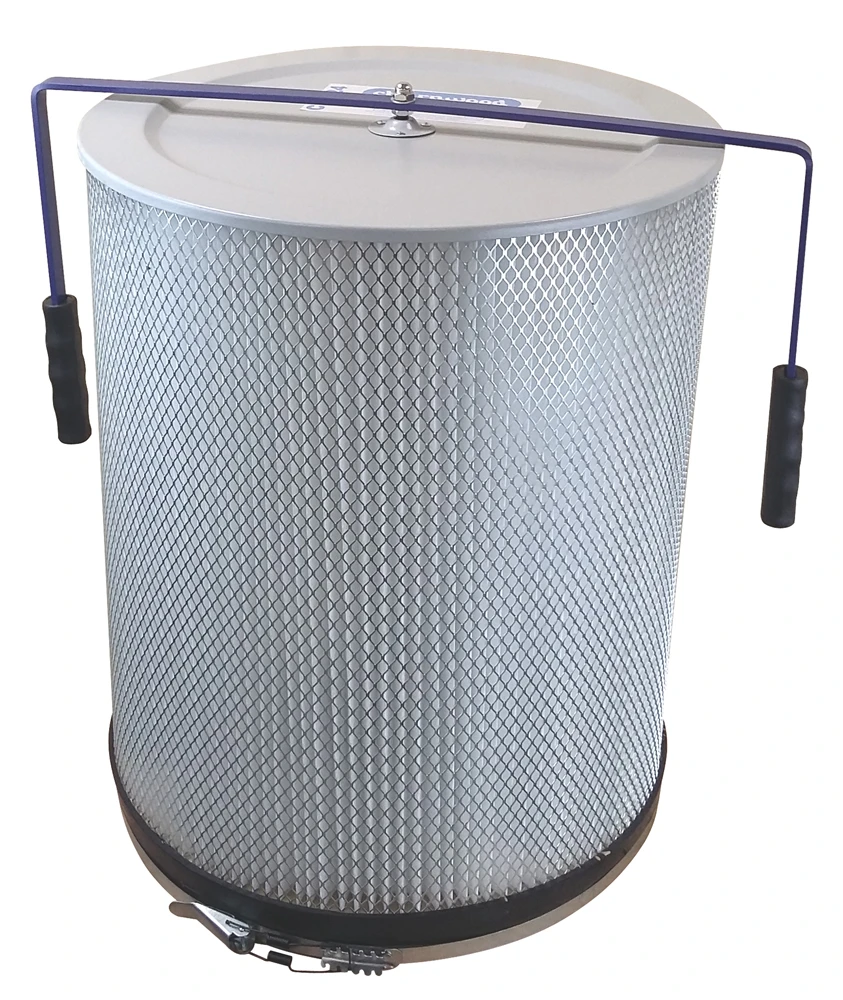

Supplied with 1 micron filter filters, transparent collection bags, durable steel fan, NVR switch, rubber wheels, quick release metal straps and 3 way inlet.

A 16amp fixed electric supply is required to run this machine.
Hose is not supplied as standard, our 100mm diameter transparent hose is recommended, sold by the metre.
This machine is intended for Light Trade use which means it has a maximum continuous running time of 2 hours, after which the motor must be rested and left to cool. If you need need a longer duty cycle than this please look at our professional heavy duty range of extractors.
