Charnwood W670 12″ Panel Saw with Sliding Beam

Charnwood W670 12″ Panel Saw with Sliding Beam. The Charnwood W670 is a trade rated panel saw, for woodworking and is ideal for the woodworking workshop. It requires a 16amp supply to operate. Everything about this Charnwood W670 is robust and strong and therefore it is is built for regular heavy usage.  It is also highly recommended that a dust extractor is used at all times with this saw to prevent the harmful build up of dust and chips. The hose kit supplied collects dust from the sawguard and takes it to the single 100mm diameter hose connection point at the side of the machine.

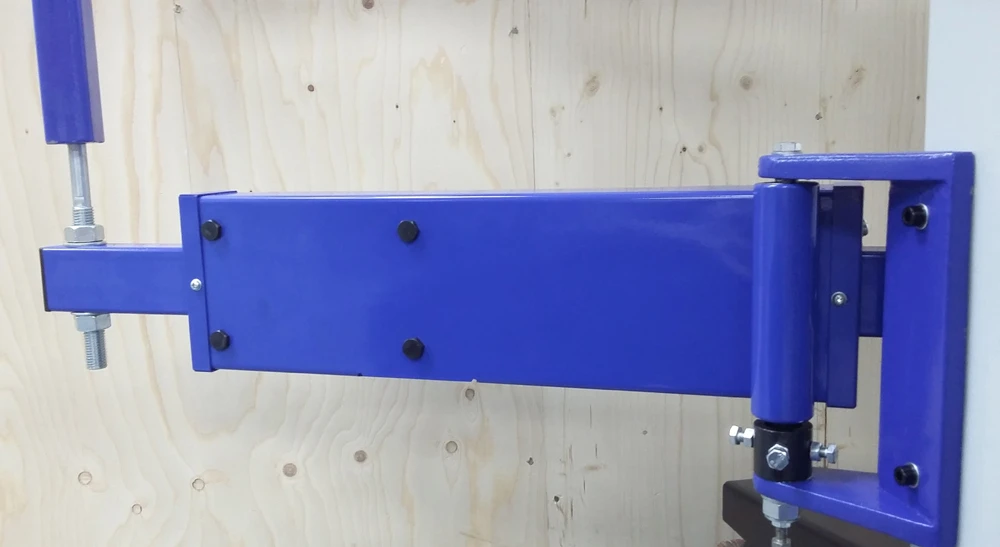

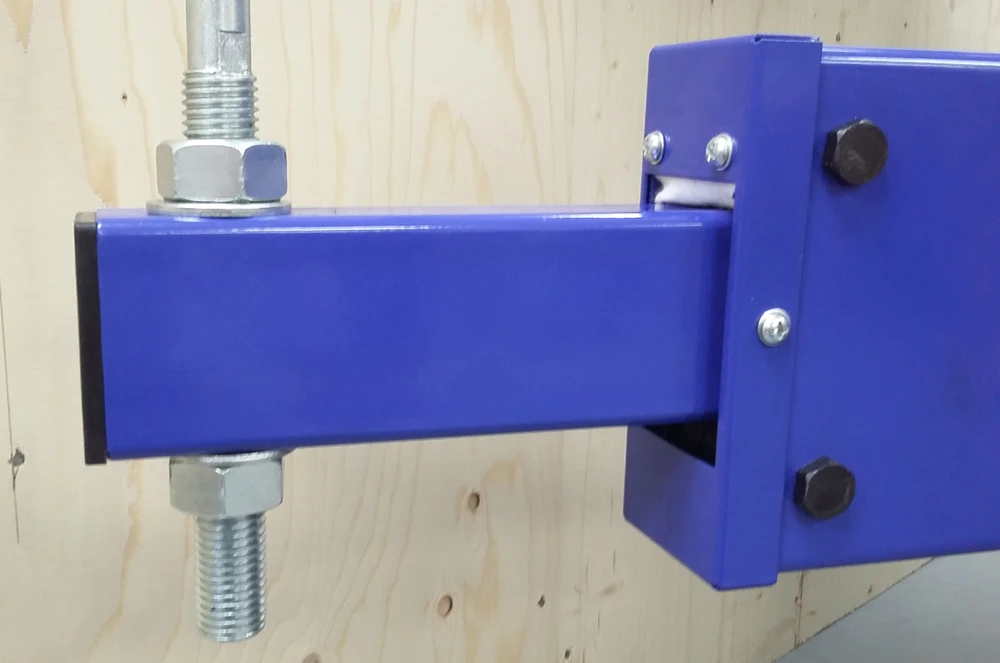

A trade rated panel saw capable of handling 8’ x 4’ panels. The sliding beam has a heavy duty construction with a telescopic support arm under the outrigger table, to allow heavier panels to be effortlessly moved.

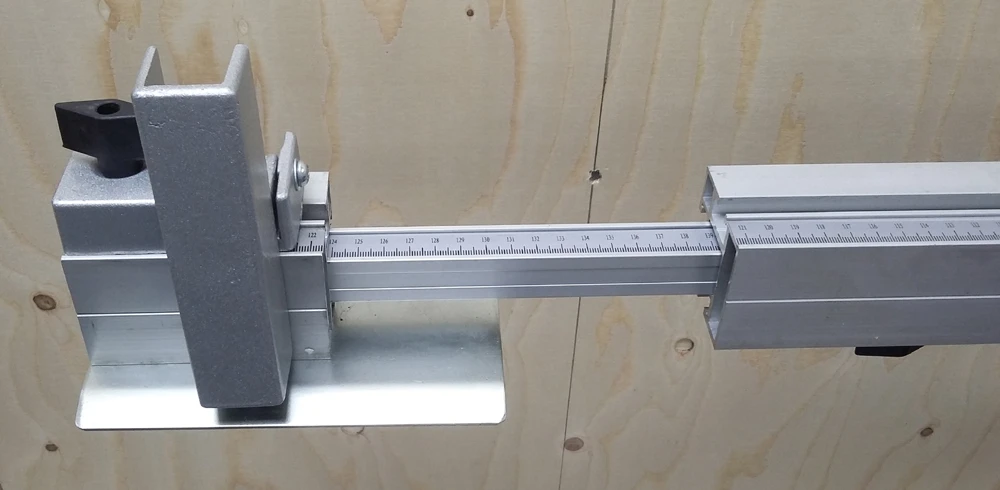

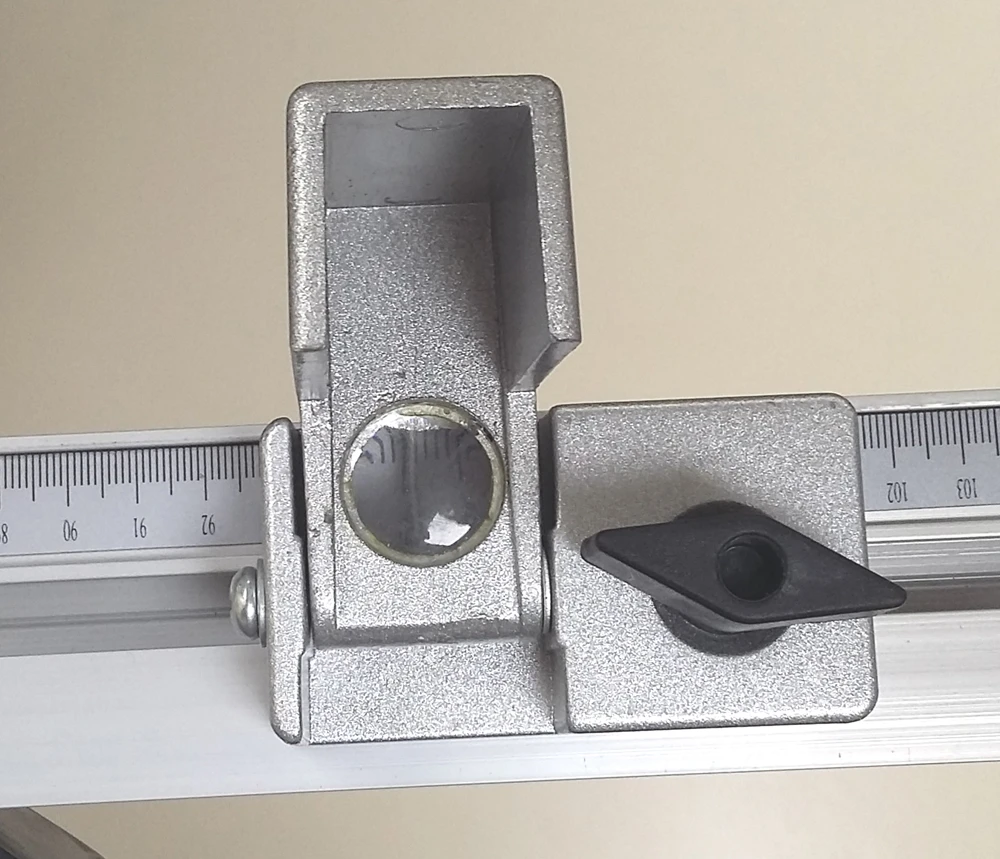

The back fence is 1200mm long and is extendable to 2100mm. There is a sliding production stop with a metric measuring scale. The fence can be set at any angle between 90 and 45 degrees.

For crosscutting solid wood there is also an auxiliary mitre fence. This is also adjustable 60 degrees each way and has a cam lock vertical work clamp.

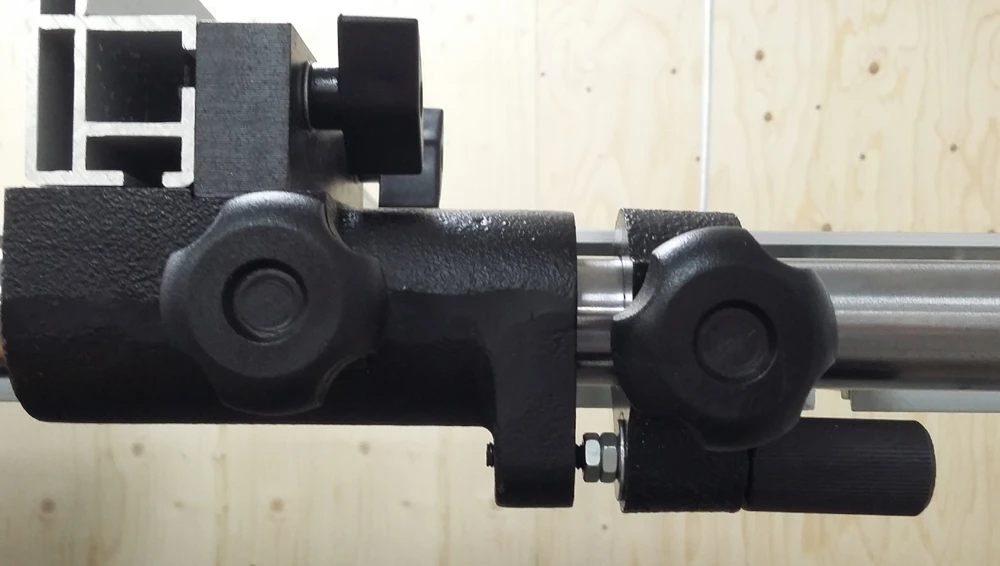

The rip fence runs on a solid steel bar. Thus it allows dimensions of up to 1225mm to be set. There is also a micro adjuster to allow the rip fence to be moved by small amounts.

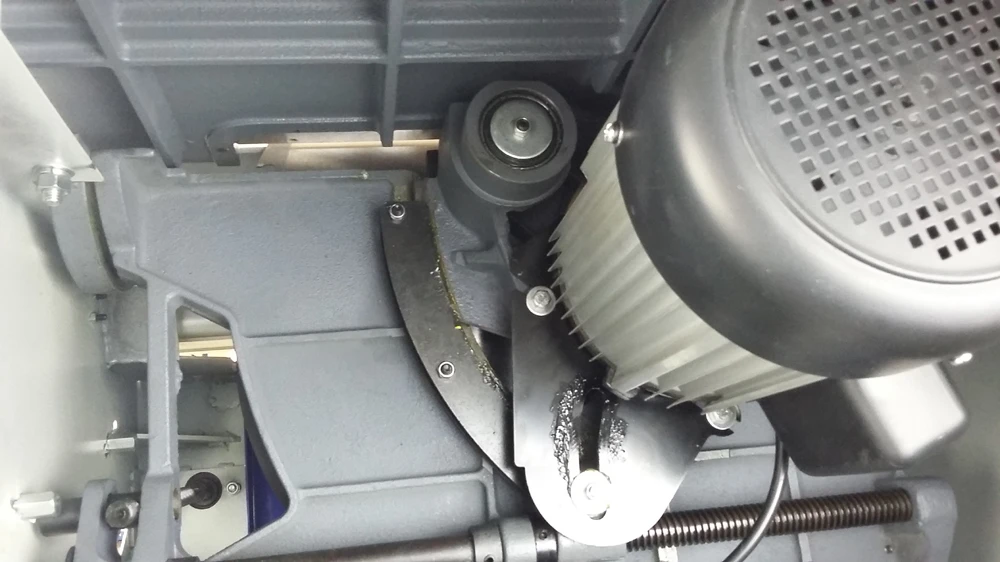

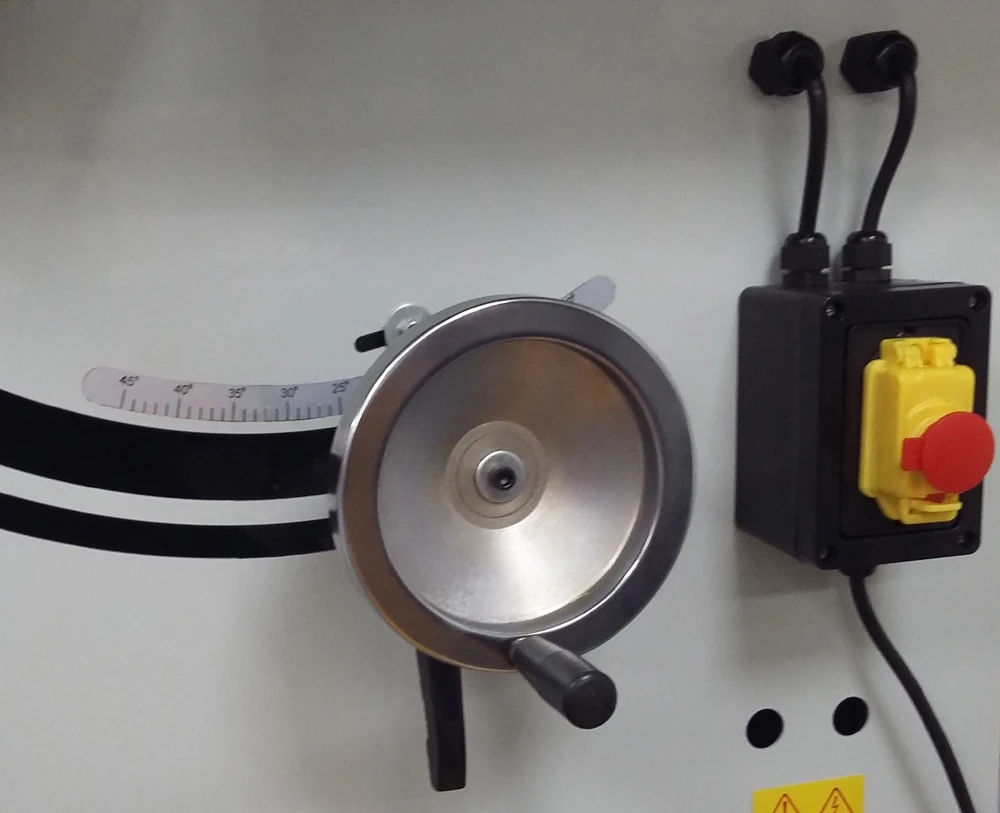

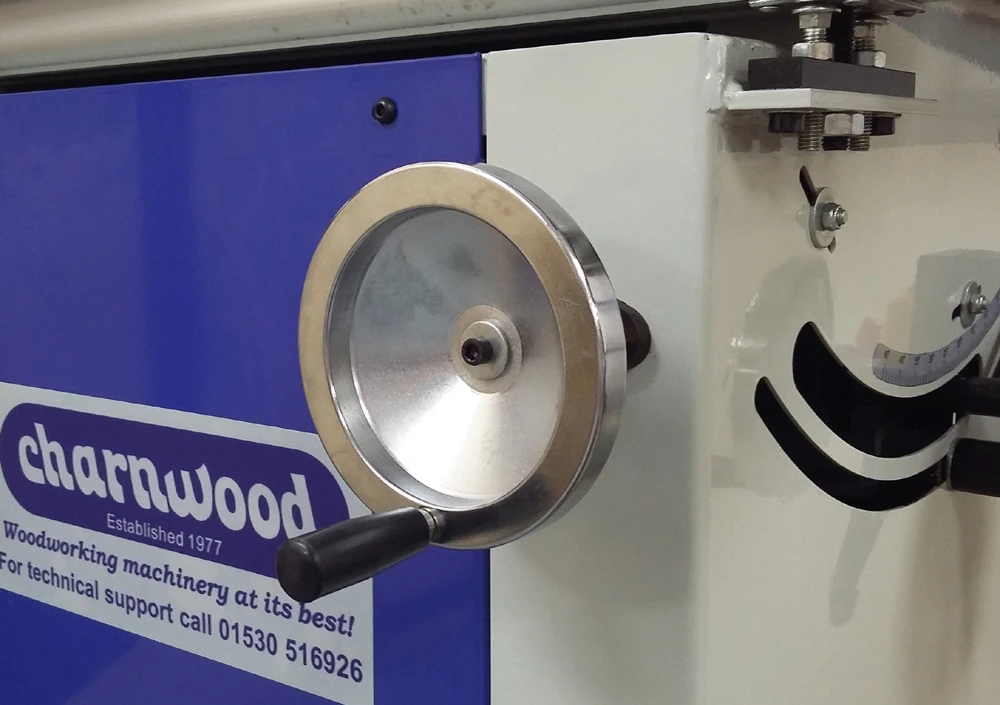

A 3hp Induction motor supplies the power for cutting up to 100mm depth. There are 2 separate hand wheels for controlling blade height and blade tilt.

Supplied with emergency stop button, 24 tooth TCT sawblade, sliding beam, rear extension table, right hand extension table, dust extraction outlet 100mm diameter, cable and 16 amp plug.



Charnwood W670 Specification
