Specification
| Main Table Size | 420mm x 635mm |
| Table Size (with Extensions) | 1000mm x 635mm |

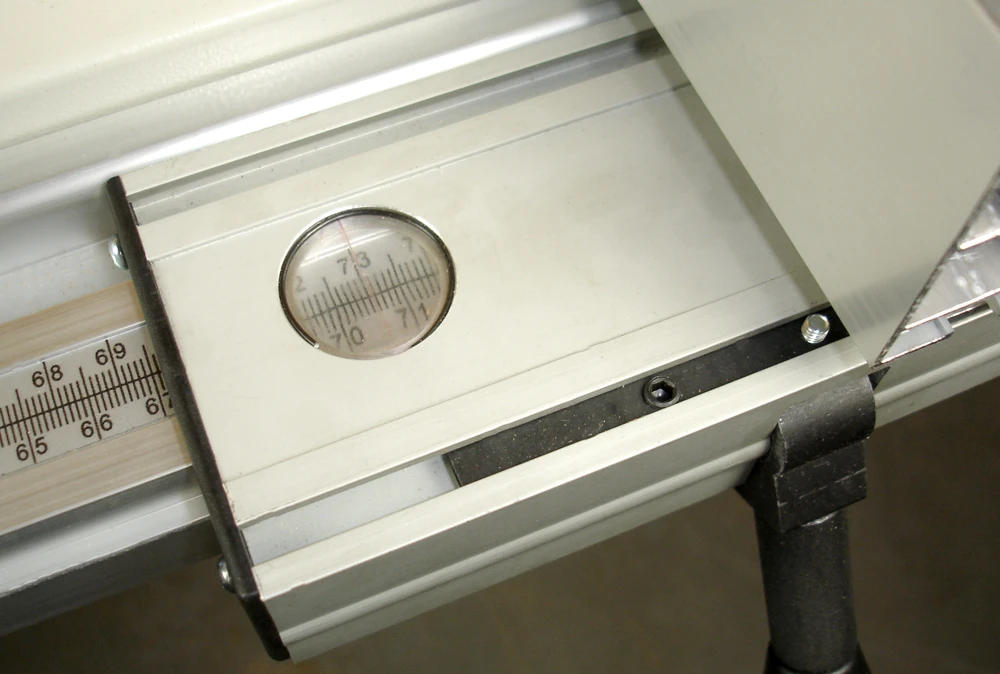

| Maximum Ripping Width Using Fence | 730mm |
| Crosscut Table Size | 400mm x 180mm |
| Maximum Crosscutting Width | 500mm (680mm using reverse table) |

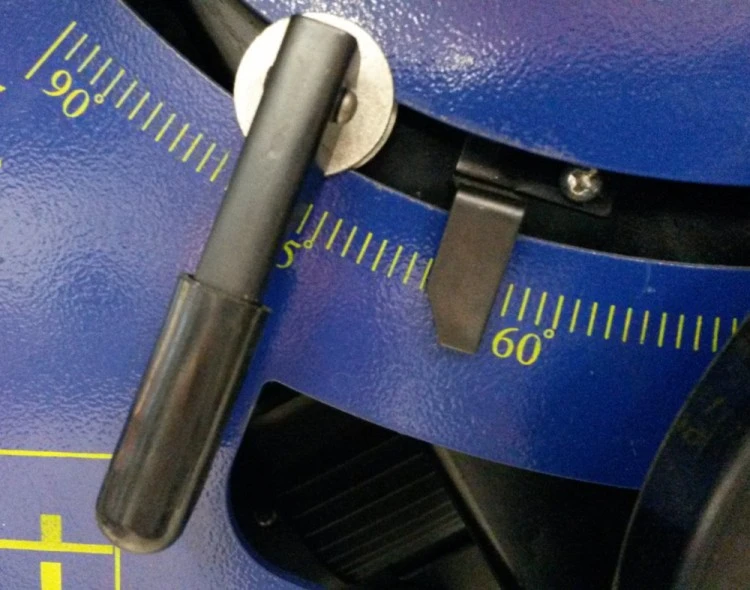

| Blade Tilt | 90 – 45 degrees |
| Cutting Depth at 90 degrees | 80mm |
| Cutting Depth at 45 degrees | 64mm |
| Blade Diameter | 250mm |
| Blade Bore | 30mm |
| Work Table Height | 845mm |

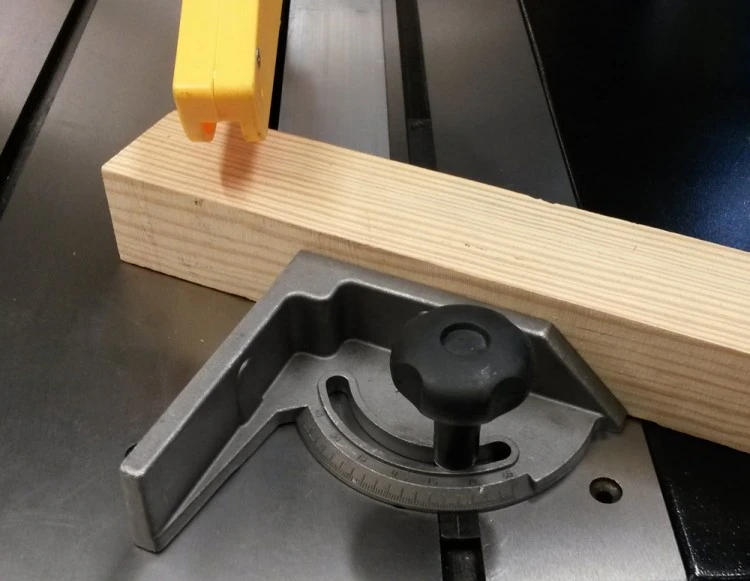

| Mitre Guide T-Slot Width | 15/19mm |
| Mitre Guide T-Slot Depth | 7mm |
| Motor (induction) Braked | 2200w (3hp) / 240v |
| No-Load Blade Speed | 4000 rpm |
| Minimum Blade Width (Kerf) | 3.0mm |
| Dimensions (WxDxH) | 1480mm x 1000mm x 1100mm |
| Weight | 110Kg |
| Rating | Light Trade |
| Warranty | 5 Year |

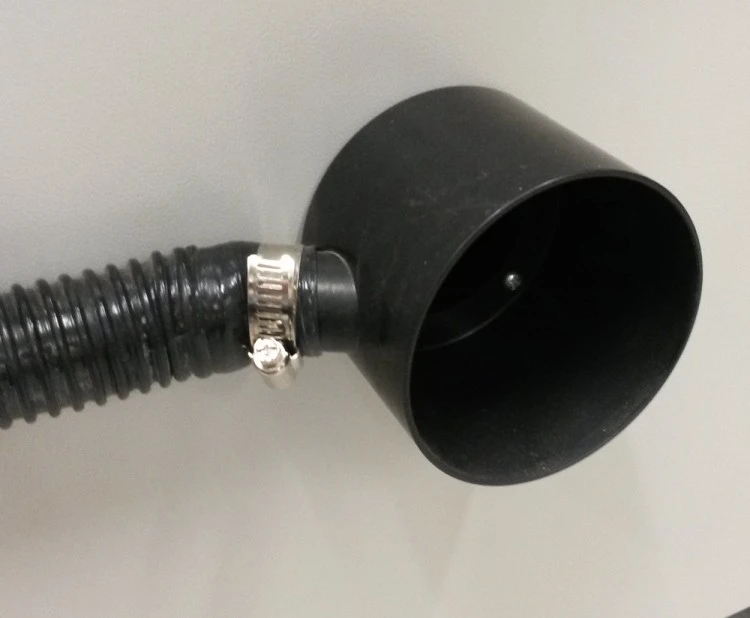

It is highly recommended that a dust extractor is used at all times with this saw to prevent the harmful build up of dust and chips. The hose kit supplied collects dust from the sawguard and takes it to the single 100mm diameter hose connection point at the back of the machine.
Please note: It is not possible to use a stacked dado set with this saw.
W629PSF Owners Manual.pdf
- No Compromise on Quality
- The home of quality products.
- Shop with confidence, we guarantee quality.
- Safe Transactions, Happy Customers

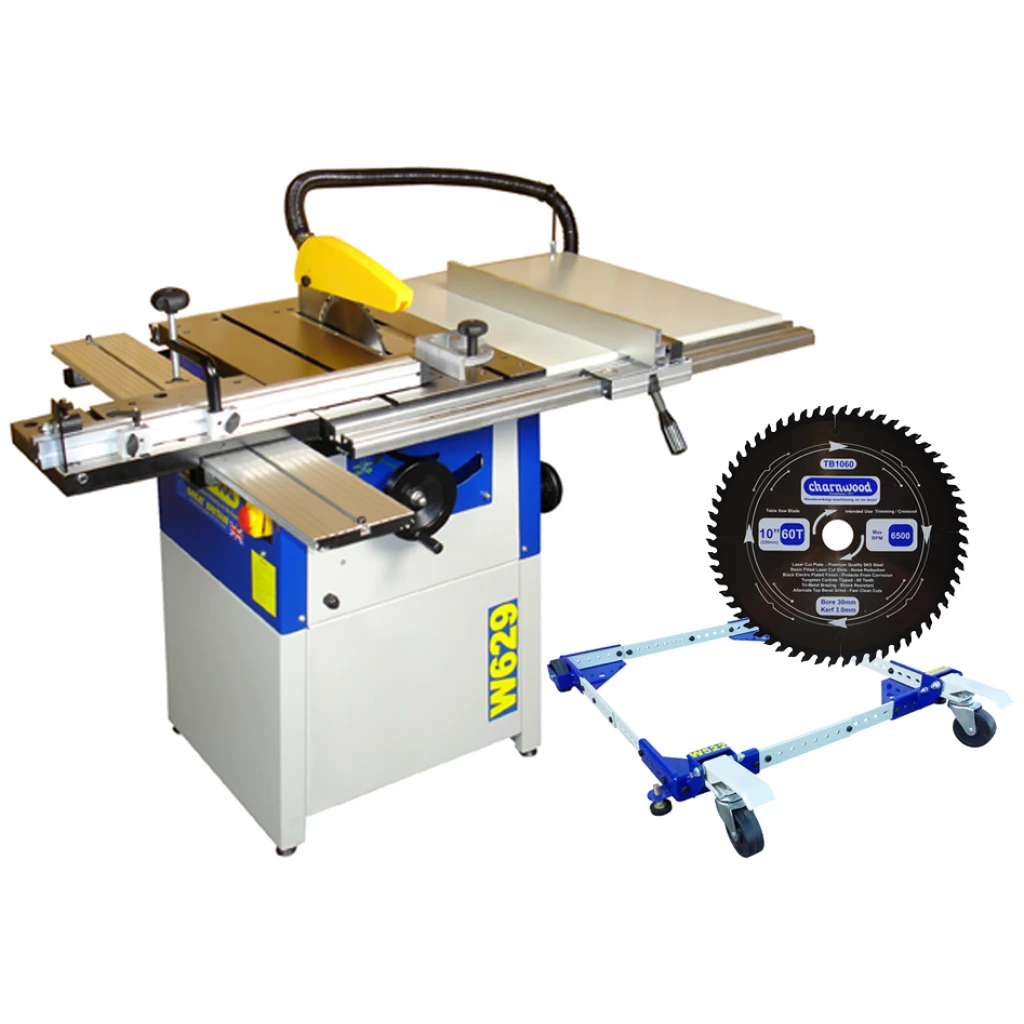

Charnwood W629P saw with W522 wheelbase & 60T blade – W629P
Charnwood W629P saw with W522 wheelbase & 60T blade – W629P Package Includes:
- W629 10″ Cast Iron Table Saw
- W522 Wheel Kit
- TB1060 60 Tooth TCT Low Noise Blade
About the W629
W629 10 inch Cast Iron Table Saw / Bench Saws is our best selling item and is perfect for any woodworking shop. Charnwood introduced the W629 in 2015 because of the success of the popular W619 8″ table saw. Consequently the W629 also utilises the same overall operating specification but possess an enhanced 3HP motor and cutting depth therefore providing the user with greater versatility and ability. The heavy weight of the the table saw makes it necessary for someone in attendance when it is delivered. Specifically built and specified for the home worker and small professional workshop W629 is consequently rated light trade. Furthermore maneuverability around the workshop a wheel base is also the perfect addition.

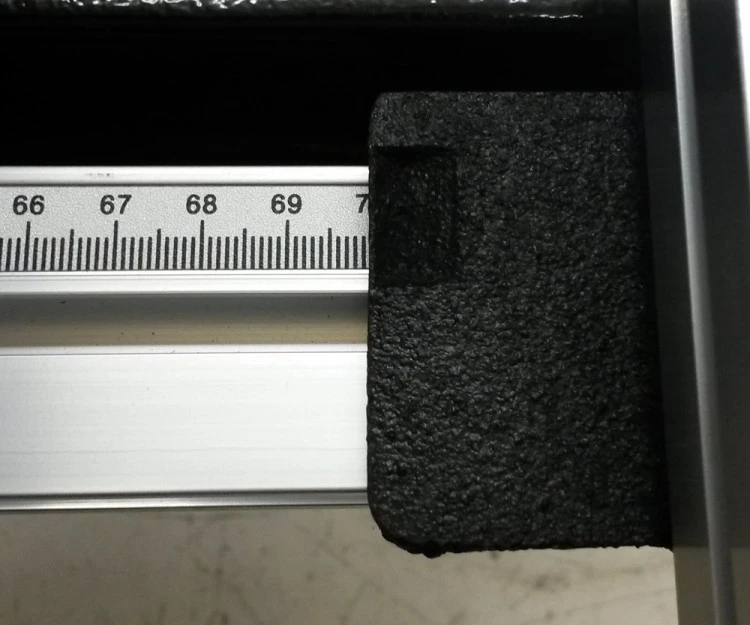

The Charnwood W629 10 inch Cast Iron Table Saw now also comes with an upgraded PSF quick action precision rip fence as standard. (The new rip fence is also available as an upgrade for Charnwood W629 purchased before Autumn 2017. The part reference is PSF.)
Professional workshop operators should also look at the W650. Built specifically with the professional in mind it has enhanced cast iron components.
Key Features of the Charnwood 10 inch Cast Iron Table Saw :
- Quiet Induction Motor
- Cast Iron Precision Ground Table
- Extension Tables as Standard Equipment
- Sliding Carriage as Standard Equipment
- Separate Handwheels for Blade Adjustment
- 100mm Dust Extraction Outlet
- Solid Floorstand Base Included
- Supplied with 36 tooth TCT saw blade
- adjustable feet
- cable and plug

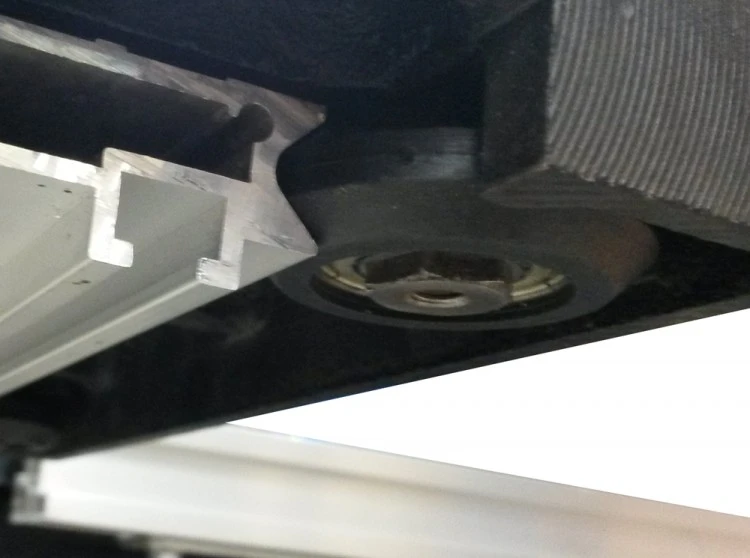

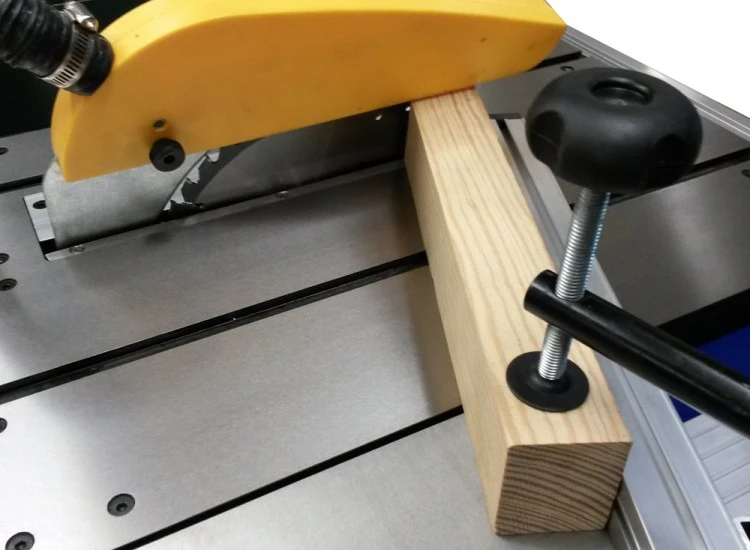

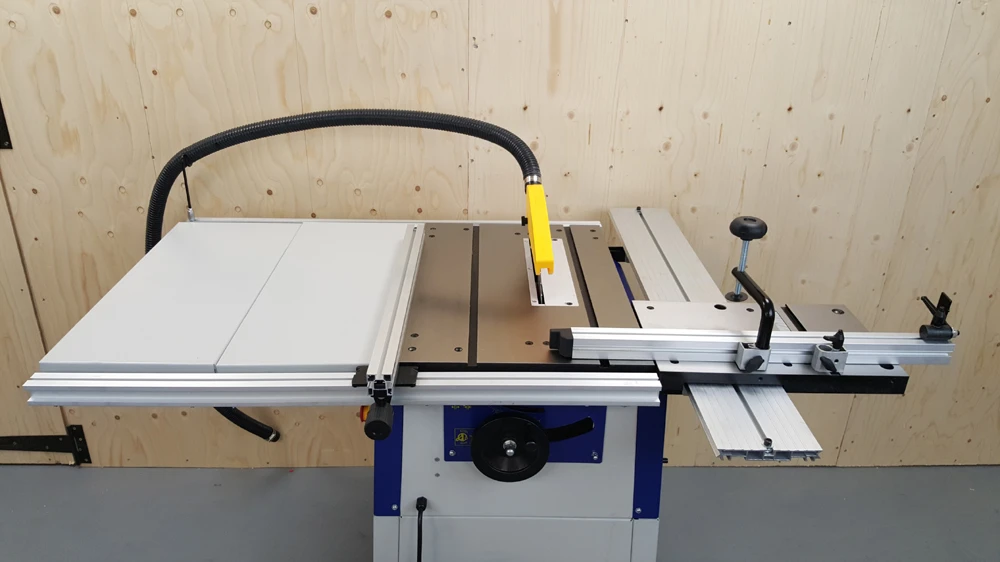

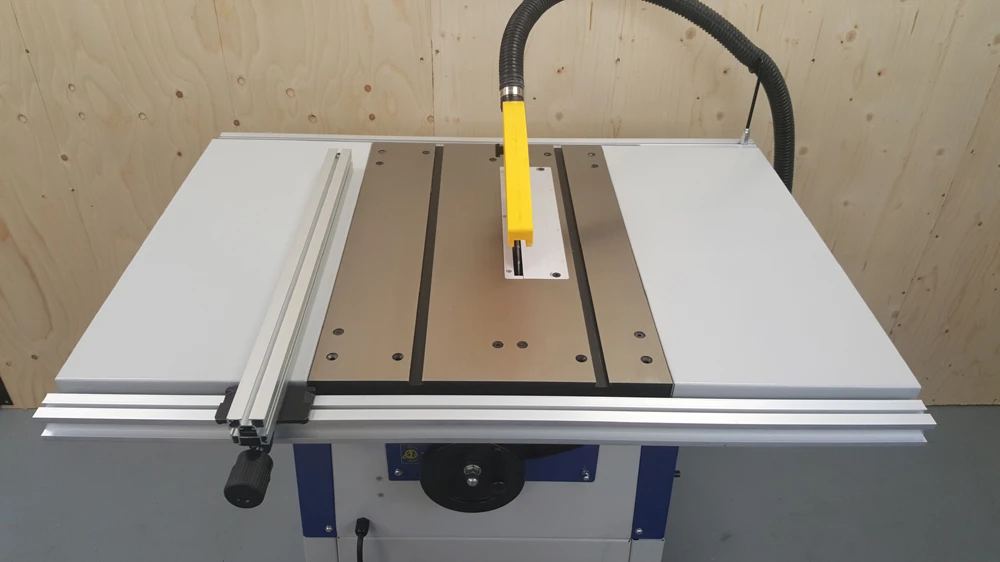

The main table is precision ground cast iron and also has 2 fabricated side extension tables to give impressive cutting capacities. The induction motor turns the blade via a drive belt which reduces noise and increases accuracy. Blade height and blade angle are controlled using 2 separate hand wheels. The sliding carriage, included as standard, is a joy to use with a cast iron bed travelling on 4 bearing guides. Any angle can be set on the long support fence. A screw clamp holds the work secure and a flip over length stop is fitted for repeat cuts.
What customer says
W522 Wheel Base
Convert your machines into portable units by adding this highly adaptable wheel base. There are two fixed wheels and two steering wheels allowing excellent manoeuvring across a relatively flat floor surface. Step on the two foot plates to lower the wheels for moving the machine, then raise the two foot plates to lower the base back onto the adjustable rubber feet.

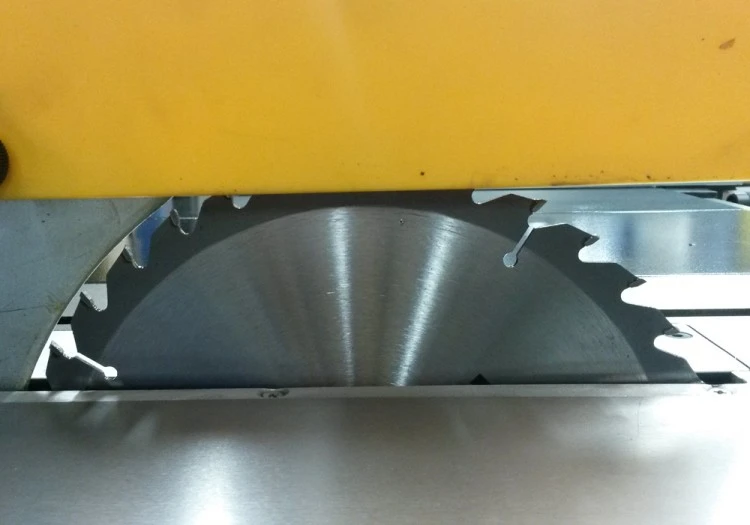

TB1060 Saw blade
High quality precision blade for professional users packed with the latest technology.
- Laser Cut Plate – Premium Quality SK5 Steel
- Resin Filled Laser Cut Slots – Noise Reduction
- Black Electro Plated Finish – Protects from Corrosion
- Tungsten Carbide Tipped – 40 Teeth
- Tri-Metal Brazing – Shock resistant
- Alternative Top Bevel Grind – Fast Clean Cuts
