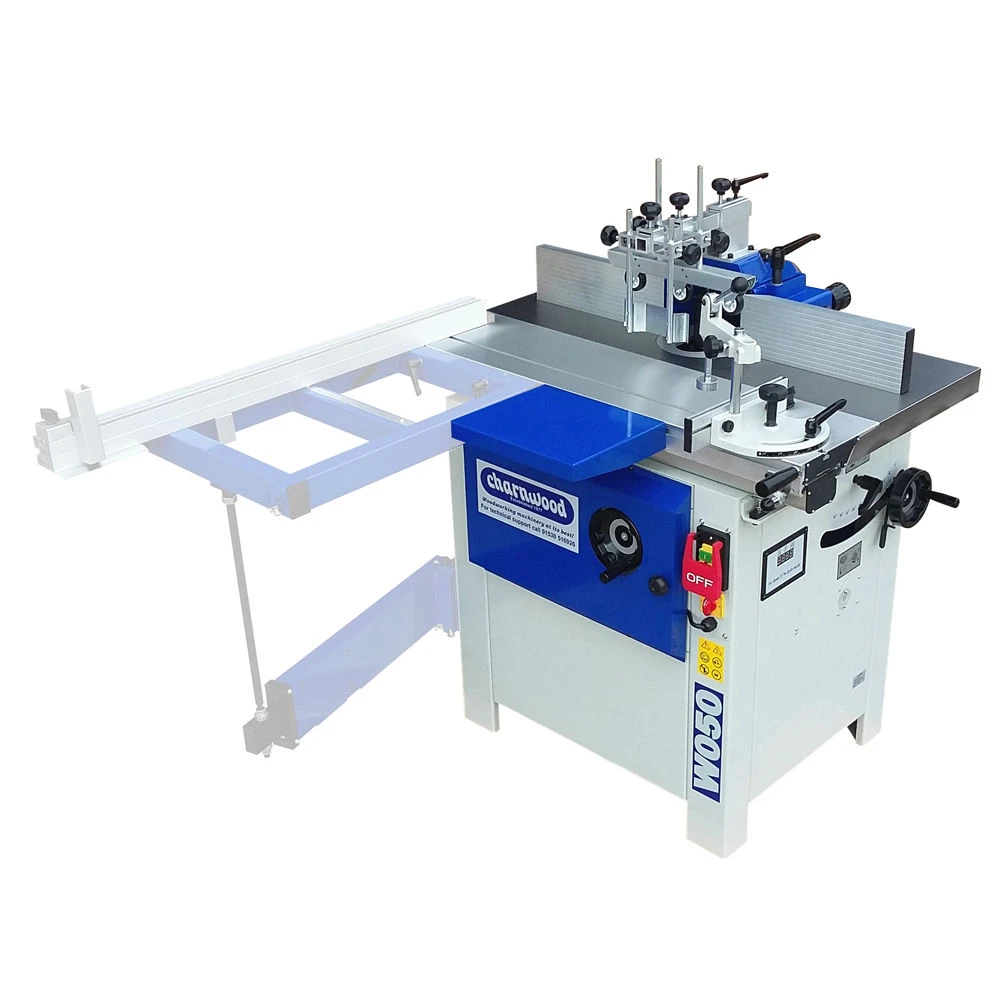

Charnwood W050 Tilt Arbor Spindle Moulder

The Charnwood W050 Tilt Arbor Spindle Moulder has the following key features.

• Induction Motor
• Four Speeds with Digital read-out
• Sliding Beam 48” Capacity
• Cast Iron Main Table
• 45° Backwards Tilting Spindle
• Independently Adjustable Fences
• Outrigger with Squaring Arm Included
• Reversible Spindle Direction

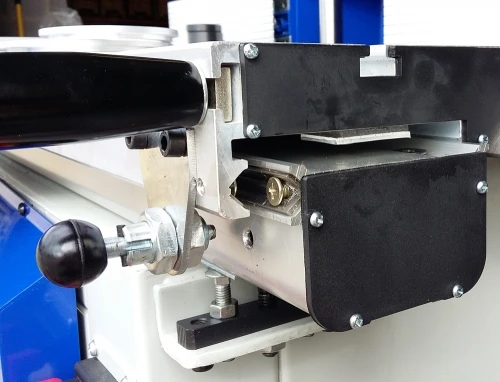

A large precision ground cast iron table forms the main table with a sliding beam in front. It also includes a mitre fence and work clamp as standard equipment.

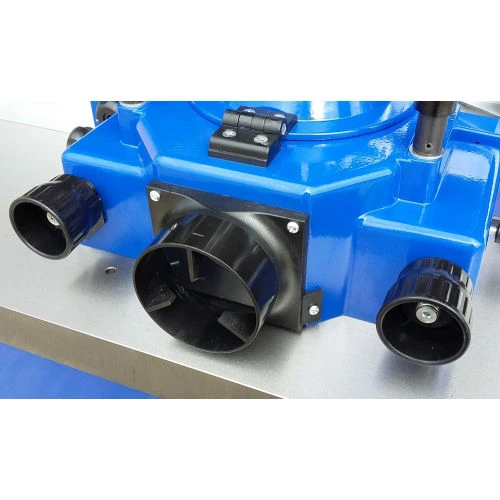

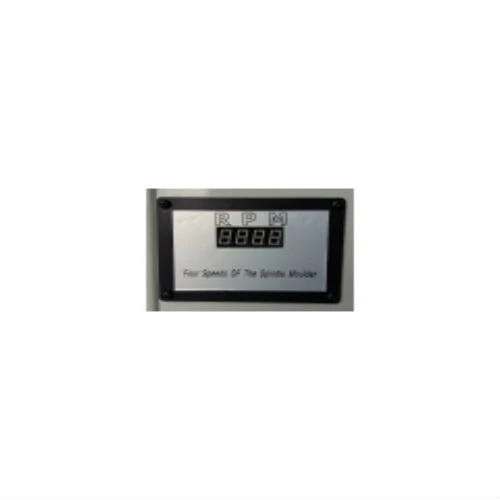

A mechanically braked motor offers ample power to use tooling up to 200mm in diameter with a choice of four speeds to allow a wide range of tooling to be used. A digital speed display informs the operator of the current setting. Further versatility is provided by the backwards tilt facility. The spindle hood is of cast alloy and is fitted with long, fully adjustable fences, a vertical hold down, front clamp and a 100mm dust outlet. A hinged lid allows for easy access when setting the tooling.

Supplied with set of spindle spacers, table inserts (80mm, 110mm & 150mm), cable and 16amp plug.

The package includes the outrigger table with telescopic support arm, and is ideal for those working with larger panels or longer lengths of timber. The squaring arm can be set to any angle and has a flip-over sliding length stop graduated in millimetres up to 1500mm.

The optional Ring Fence allows safe working when putting an edge moulding onto curved shaped pieces. It consists of a round fence to control the depth of cut, a transparent cutter guard, a lead in guide and a 100mm diameter extraction outlet.
