Charnwood VIPER2PACK Viper2 Scroll Chuck Package

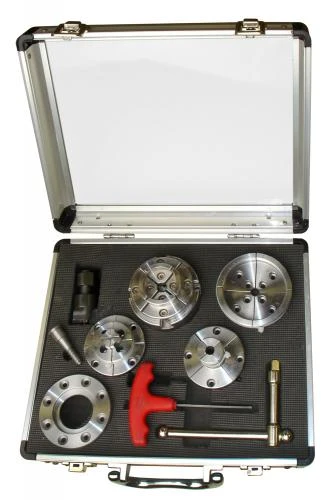

Charnwood VIPER2PACK Viper2 Scroll Chuck Package. The most comprehensive woodturners chuck package available. The package consists of:

• VIPER2 Geared Scroll Chuck with 1″ x 8tpi Thread
• Standard Dovetail Jaws
• Pin Jaws
• Stepped Jaws
• Wide Jaws
• Face Plate
• 4 Prong Drive centre
• Wood Screw
• T Handle Square Drive
• T Handle Hex Key
• Aluminium Storage Case

The Viper2 chuck is the smallest chuck from the Charnwood Viper range. A 2.75″ sized scroll chuck, with the jaws adjusted by a geared mechanism for simple one handed operation. Self centring, high precision design. Ideal for Mini sized lathes and upwards. The fully enclosed design prevents the build up of chips and dust inside the gear mechanism.

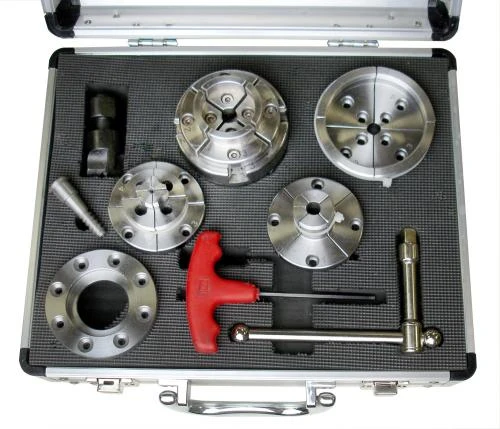

What is in the Charnwood Viper2Pack



The chuck fits directly onto lathes with headstock thread size 1″ x 8tpi. With optional adaptors available in 3/4″ x 16tpi and M33 x 3.5mm .

Standard dovetail jaws can grip the workpiece both internally or externally depending on the style and shape of the piece to be turned.

Pin jaws allow smaller pieces to held than the standard jaws. The inside is smooth and parallel, the outside is serrated for maximum grip.

Stepped jaws have a serrated edge both internally and externally. They give great flexibility by combining standard sized jaws and pin jaws.

Wide jaws have a serrated edge both internally and externally and can grip much larger pieces than the standard jaws.

Face Plate ring has a 65mm outside diameter and has a dovetail shaped inside which can be gripped by using the standard Viper2 jaws.

Drive Centre allows spindles to be turned without removing your chuck from the lathe.

Also included is a wood screw which clamps into the centre of the chuck for the initial mounting of bowl blanks.

T-Handle square drive for locking the jaws.

T-handled hex key for swapping the jaws.

The storage case also has a foam liner to keep your chuck and all the accessories safe and ready to use.
