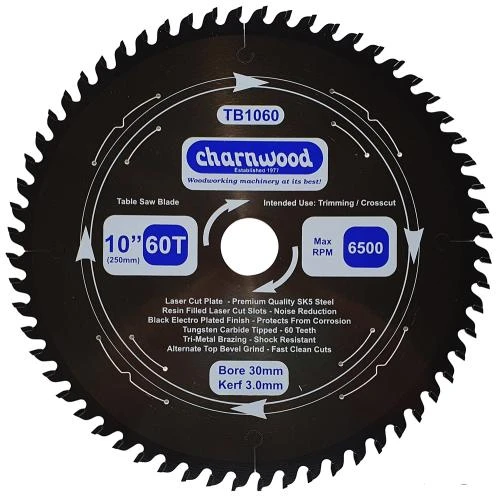

Charnwood TB1060 TCT Saw Blade 250mm | Poolewood Machinery

Tungsten Carbide Tipped (TCT) circular saw blade for table saws and bench saws. High quality precision blade for professional users packed with the latest technology.

• Laser Cut Plate – Premium Quality SK5 Steel
• Resin Filled Laser Cut Slots – Noise Reduction
• Black Electro Plated Finish – Protects from Corrosion
• Tungsten Carbide Tipped – 60 Teeth
• Tri-Metal Brazing – Shock resistant
• Alternative Top Bevel Grind – Fast Clean Cuts

The plate of the blade is manufactured using a premium grade of steel known as SK5. The plate is cut out by laser to ensure precision and accurate bore size.

The laser also cuts slots which allow the blade to expand during heat build up, keeping the blade true. The slots are then filled with a resin which reduces the noise level of the blade during a cut by up to 30%.

The blade is finished with a distinctive black electroplated coating. It prevents corrosion and makes it very easy to clean off any build up of resin and pitch.

Although you can cut any type of wood with any blade, for optimal performance, choose a number of teeth which best suits the majority of sawing you want to do.

TB1060 Trimming / Crosscut: Fine Finish, suitable for crosscutting in softwood, hardwood and exotic timber. Suitable for ripping and crosscutting in boards veneered on both sides, plywood, chipboard laminated on one side, MDF, particle board, hardboard and veneers.



 TB1060 SPECIFICATION

Diameter	250mm ( 10”)
Bore	30mm
Kerf (Carbide Tooth Width)	3.0mm
Plate Thickness	2.0mm
No. of TCT Teeth	60
Tooth Pattern	ATB
Max. RPM	6500
Intended Use	Trimming / Crosscut
Rating	Trade



Can be used with the following Charnwood table saws:
W614, W616, W629, W650, W660

NOT SUITABLE FOR RADIAL ARM OR MITRE SAWS.
