Charnwood NVR Safety Switch – W026

Charnwood NVR Safety Switch – W026 No Volt Release Switch for Powertools.

Key Features

• Suitable For Any Powertools Up To 2200w
• it is provided with an integral 3 Pin Socket

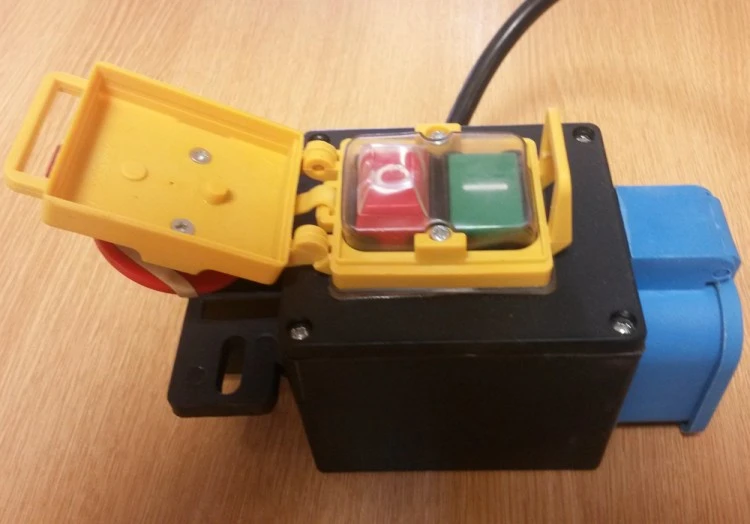

• Separate Start and Stop Buttons are also provided
• The Cover Acts As Emergency Stop
• Supplied With 2m Cable and Plug

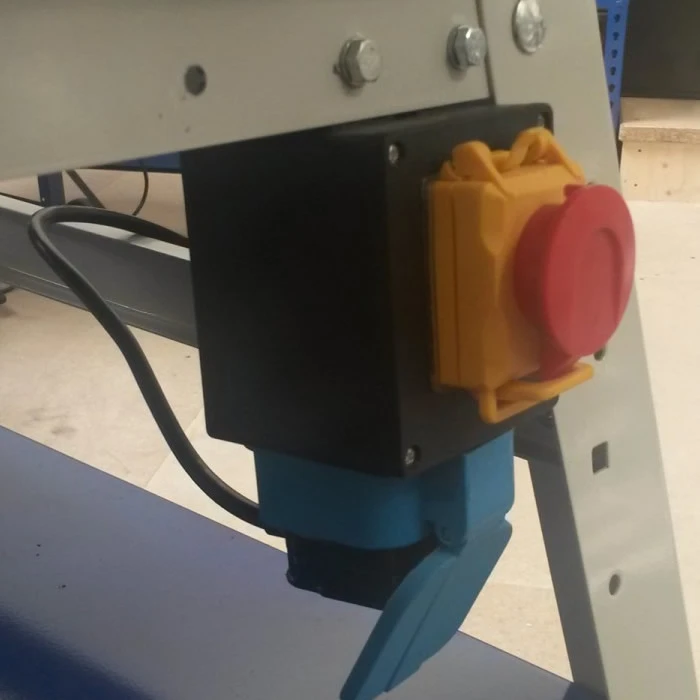

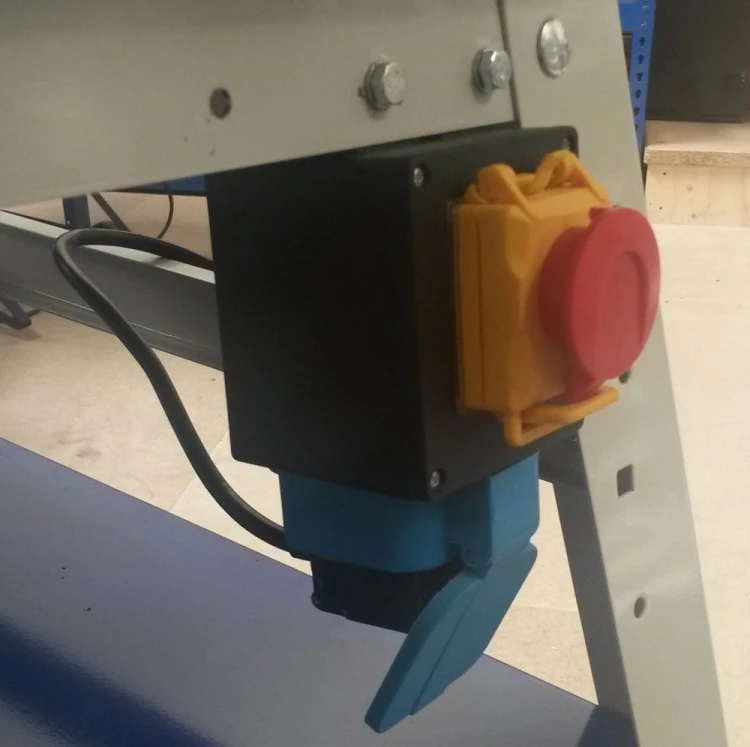

The Charnwood NVR Safety Switch – W026 can be mounted to the steel frame of any router table. It can also be mounted in any convenient location therefore avoiding the user having to reach under the table to turn the router on and off. The switch also provides a handy emergency stop button.

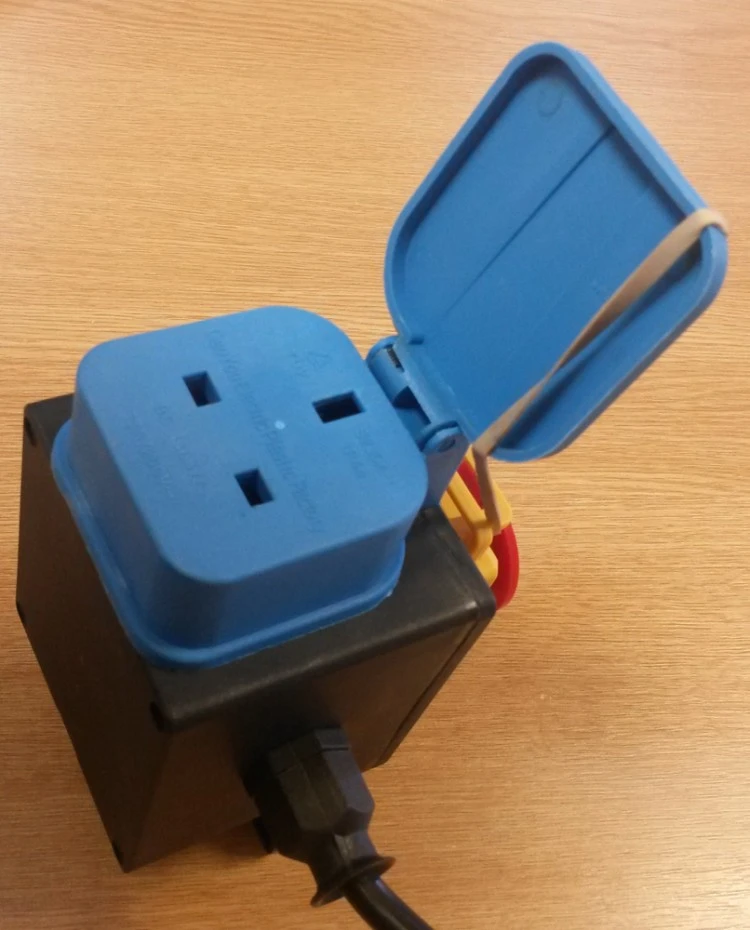

It also has is an integral socket built into the underside of the casing. Therefore simply plug your powertool into the socket and connect the plug to your electric supply. It also has 2 slotted fixing points thus allow the switch to be used with any router table, commercial or home made.

In order to use the Charnwood NVR Safety Switch – W026  with a router you also need to be able to lock the router switch on for hands free operation. If your router has a trigger type switch which cannot be locked on it will be necessary to contact the manufacturer/distributor to obtain a fastening clip. It is also possible for some routers to be rewired to bypass the router switch and thus use this NVR switch instead.

Mounting bracket hole centres 45mm – 70mm
Fixing bolts supplied M6 x 45mm

Comes with

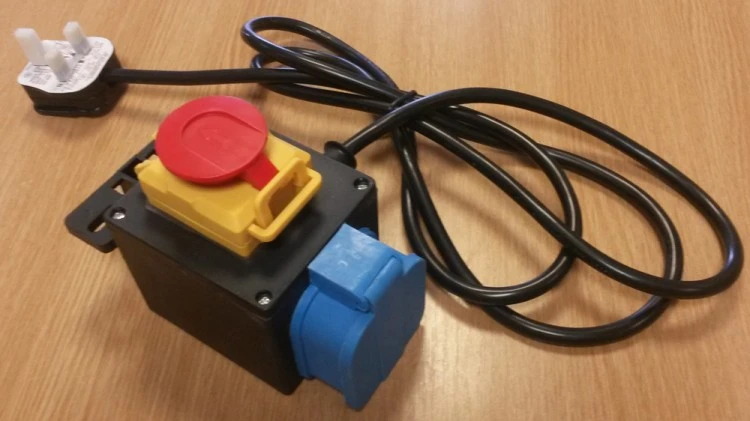

Supplied with integral socket, separate start and stop buttons, 2m cable, plug and fixing bolts. For use with any power tools up to 2200watts.
