Charnwood BS410 10” Woodworking Bandsaw

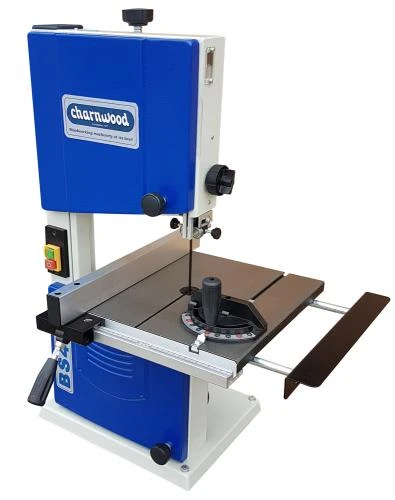

Charnwood BS410 10” Woodworking Bandsaw A bench top woodworking bandsaw with a 4” cutting capacity.



• Precision Ground Cast Iron Work Table
• Quick Action Locking Rip Fence
• Supplied with High Quality British Made Blade
• Quiet Induction Motor
• Crosscutting Mitre Guide Included
• 4” Cutting Depth Capacity
• 10” Cutting Width (Throat)
• Quick Action Blade Tension Setting
• Primarily used for Woodworking
• Finished off with a durable powder coated paint finish.



Key Features



A small sized woodworking bandsaw with a durable precision ground cast iron tilting table. It also comes with a stop for returning to 90 degrees, after a bevel cut, and T shaped mitre fence slot. When working with larger pieces there is also a sliding table extension support adding 100mm to the table width.

The quick release fence locks securely onto the front rail of the table.  Therefore providing a rigid straight guide for ripping. A magnifier is included to aid accurate setting of the fence along the scale, marked out in mm. The fence can be fitted on either side of the blade.

The sliding mitre fence is adjustable 60 degrees in each direction, for crosscutting wood at any angle.

The rack & pinion blade guard design is adjusted by using a dial on the side of the machine. The blade is then guided by two side facing bearings and a rear thrust bearing attached to the end of the guard. The side bearings are mounted on an eccentric cam. Therefore allowing faster setting, and can also be adjusted without using any tools. The same guide set up is repeated below the table giving maximum blade control and  also keeping the blade true when a straight cut is required.

Replacing a worn blade, or switching to the blade you keep for curved work, has also been sped up by adding a quick release tension lever. The lever removes all tension from the blade, therefore the user to quickly remove it from the bandsaw. When the new blade is in position, return the lever to add the tension.

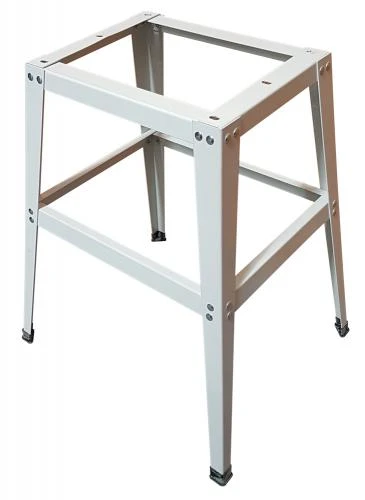

NOTE: An optional floor stand is also available for this bandsaw BS410



Supplied With:



Supplied with rip fence, mitre fence adjustable 60 degrees each way, 3/8″ high quality British made blade, NVR switch, 100mm diameter extraction outlet, push stick, 2m cable and UK 3 pin plug.

It also has a safety feature, only usually found on larger bandsaws This is the addition of micro switches on the doors to prevent accidental startup when changing a blade.



Fixing holes are provided for mounting onto a bench or onto the optional floor stand.

This Bandsaw is fitted with a High Quality, British manufactured blade with precision ground teeth for incredible cutting results.

The primary use of this bandsaw is for woodworking and the blade supplied is suitable for cutting both hard and soft woods. It is also possible to use this bandsaw for cutting non ferrous metal, but only with the correct blade fitted. (Not supplied)
