Charnwood BG6 Bench Grinder

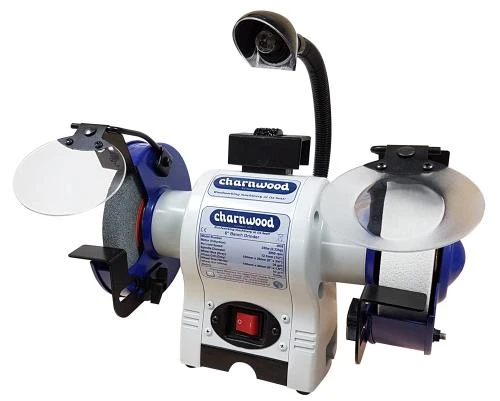

Charnwood BG6 Bench Grinder with 6″ diameter wheels, can be used for all grinding, sharpening and shaping tasks around the workshop.

• 550w Quiet Induction Motor
• 20mm Wide Coarse Grey Stone
• 40mm Wide Fine White Stone
• Spark Guards are also adjustable
• Adjustable Eye Shields
• The Tool Rest is adjustable
• Integral Mains Powered Work Light
• Built-In Coolant Tray
• Wheel Dressing Tool

Charnwood have developed this model particularly for woodturners by fitting it with a 40mm wide fine white stone grinding wheel. The extra width allows virtually all turning tools to be sharpened. The white stone helps to prevent heat build up. It is therefore used for sharpening heat sensitive tools such as High Speed Steel (HSS).  The other end of the grinder is fitted with a coarse Aluminium Oxide grey stone for fast removal of material. This is therefore Perfect if you get a chipped chisel tip and need to remove a lot of material.



Other Features of the Charnwood BG6 Bench Grinder



The grinder is driven by a smooth and quiet induction motor with ample power for all sharpening and grinding operations. Also an integral work light on a flexible shaft ensures that the work area is well lit at all times. Each wheel is fitted with a spark guard. This can be adjusted as the stone wears down therefore maintaining maximum safety. A one piece steel tool rest is also similarly adjustable and can be quickly removed should you wish to fit a polishing wheel. Also when doing close up work, one of the eye shields doubles as a 3 times magnifier.

The grinder sits on 4 rubber feet to provide a stable platform. It can also be secured to a work bench using the 2 mounting points provided.The inclusion of the wheel dressing tool allows the stones to be reshaped and squared off as they wear down, giving a long and productive life span.

Supplied with spark guards, eye shields (1 with magnifier), tool rests, coolant tray, wheel dresser, 1.75m cable and UK 3 pin plug.

This product is also available in an 8″ version with 550w motor.
