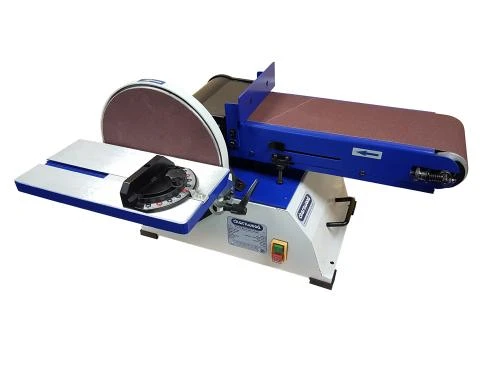

BD610 Belt & Disc Sander, 6″ x 10″

Charnwood BD610 Belt & Disc Sander, 6″ x 10″. A heavy duty workshop sander, with the traditional combination of belt and disc. These are driven via belt by a quiet 1hp induction motor.

The large diameter disc is fitted with a sturdy aluminium table which is secured on both sides. Radiused guides also allow the table to tilt to 45 degrees and be accurately locked at any angle. The table also has a T slot for the mitre guide, which is adjustable to 60 degrees each way.

A sanding belt of this size would most commonly be used in the horizontal position. However it can be moved into the vertical position when required. The belt has a back stop fence with a removable plate. Thus allowing the user to make their own plate to suit any application they have.The open end of the sanding belt can be used for finishing curved shapes and edges.

When the time comes to replace the sanding belt there is a quick release tension lever and fine tracking adjustment to balance the new belt.If you need to move this machine off the work bench, the design also incorporates a pair of carry handles.

A single dust collection outlet gives efficient extraction. This is from both the disc and belt, when connected to a suitable vacuum or extractor.

The sander sits on 4 rubber feet or can also be secured to a work bench using the 4 mounting points provided.

Supplied with mitre guide, 1 x 80 grit sanding belt, 1 x 80 grit self adhesive sanding disc, 1.75m power cable and UK 3 pin plug.



SPECIAL OFFER – FREE ACCESSORIES (whilst stocks last)

Unlock the benefits of Hook & Loop sanding discs. For a limited time we are giving away with each machine, worth £20.00:

• Hook & Loop Conversion Pad VB300
• 60 grit ProNet sanding disc
• 80 grit ProNet sanding disc
• 120 grit ProNet sanding disc
• 150 grit ProNet sanding disc

These are in addition to the standard equipment.
