Charnwood B300P 12” Premium Woodworking Bandsaw Package Deal

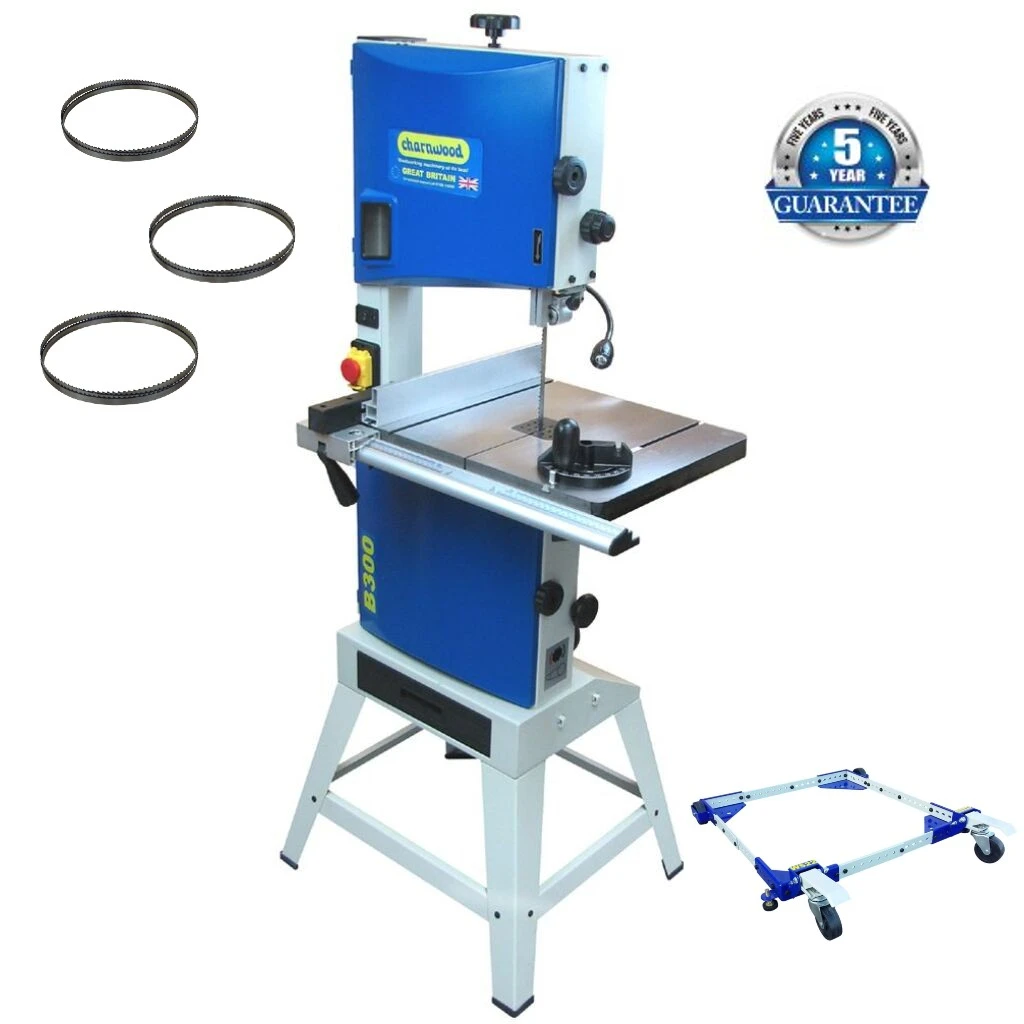

The Charnwood B300P 12” Premium Woodworking Bandsaw Package Deal comprises:

• B300 Bandsaw
• BB15 Woodpecker Blade 22400mm x 6mm(1/4″)x 6tpi
• BB17 Woodpecker Blade 2240mmx10mm (3/8″) x 4tpi
• BB18 Woodpecker Blade 2240mm x 16mm(5/8″) x 4tpi
• W522 Wheel Base

Charnwood B300 12″ Premium Bandsaw is the middle machine making up the Charnwood Premium Bandsaw Range The range is manufactured to a slightly higher specification and is aimed at the discerning home workshop and professional user. Premium Grade 12″ Woodworking Bandsaw. IT share the features of the B250 but is larger and heavier and thus able to deal with larger object pieces. Its key features are:-

• 6″ Cutting Depth Capacity
• 12″ Cutting Width (Throat)
• Supplied with High Quality British Made Blade
• Precision Ground Cast Iron Work Table
• Quick Action Locking On Rip Fence
• Crosscutting Mitre Guide Included
• Quiet Induction Motor
• Mains Powered LED work Light
• Integral Dust Collection Tray
• Includes Floorstand
• Primarily used for Woodworking



Key Features

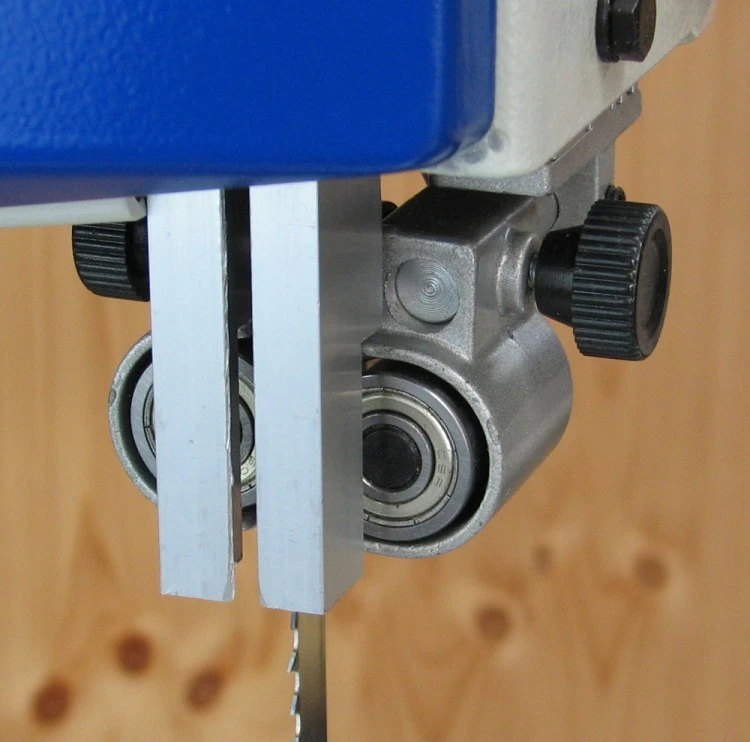

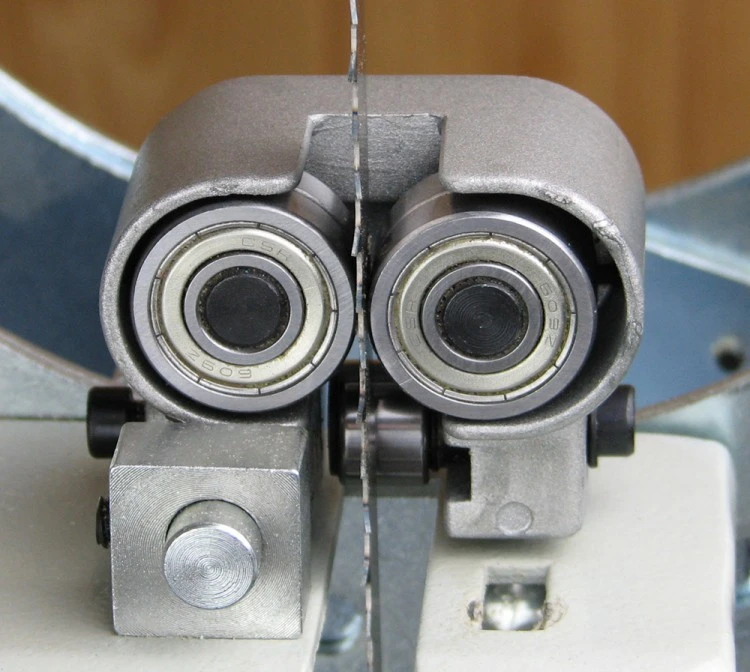

A floorstanding woodworking bandsaw with a cutting capacity of 150mm (6″), big enough for most workshops. The power is delivered by a quiet induction motor with a belt drive to the bandsaw wheel. A two speed pulley allows the correct blade speed to be selected, depending on the hardness of the material being cut. The key to straight and accurate cutting on a bandsaw is to have a good set of blade guides. The B300 has three sealed bearings on the blade guard. Two mounted side-on to the blade to control blade twist and keep it true. The rear bearing takes the thrust of the back of the blade allowing it to run freely. The same setup is also repeated beneath the table.

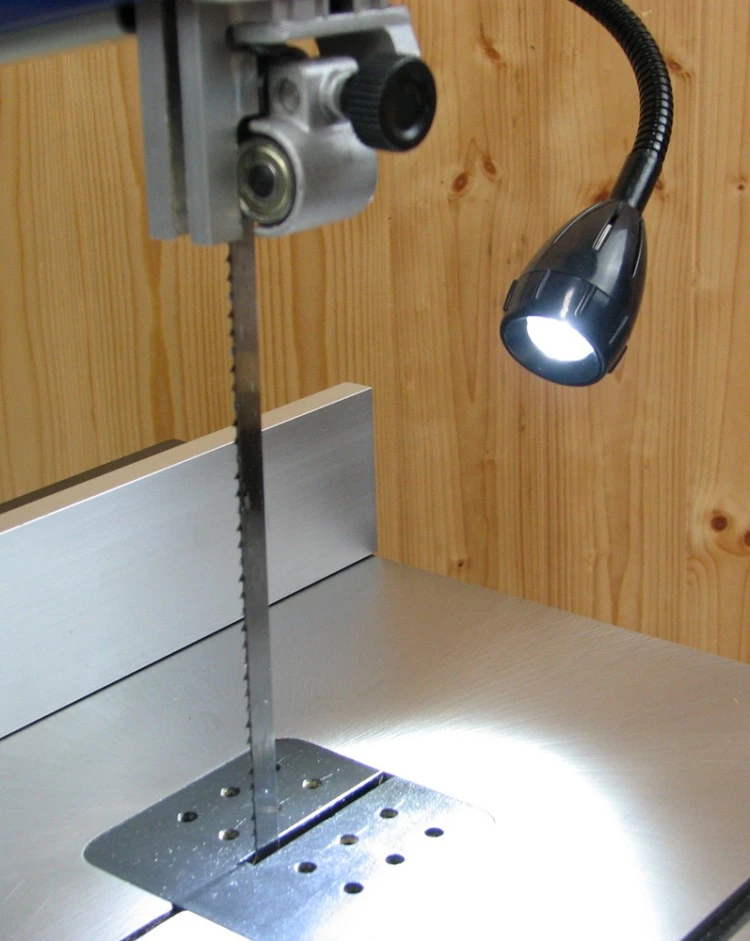

The cast iron table also tilts from 90 degrees to 45 degrees, on a rack & pinion, and has a positive stop at both of those positions. Any angle in between can be read off the scale and also locked in. For rip cuts the guide fence can be situated on either side of the blade and can be locked into position with a single press of the lever and has a clear marker to set against the metric scale. The fence itself can be fitted in two ways. When cutting thicker material the full face height of 60mm is used. When cutting thin and narrow strips the fence is fitted with the small face, against the blade to allow clearance around the guides. The bandsaw is fitted with an LED work light on a flexible stem, so that the work area will always be well lit.

The two doors are fitted with safety locks which cut power to the motor when the doors are open for blade changing or cleaning.



Blade Tensioning



Tensioning the blade is  correctly is also made simple thanks to the features on this premium model. A blade tension lever quickly sets the tension. Therefore after a blade change fine tuning can be carried out with the aid of a tension indicator and scale. The required tension varies according to blade width. A window in the top door allows the operator to confirm blade tension is correct and therefore make an adjustment when necessary.



Supplied With



Supplied with 1/2″ x 4tpi blade, rip fence, mitre fence, work light, floorstand, cable and plug.

This Bandsaw is fitted with a High Quality, British manufactured blade with precision ground teeth for incredible cutting results.



Dust Extraction

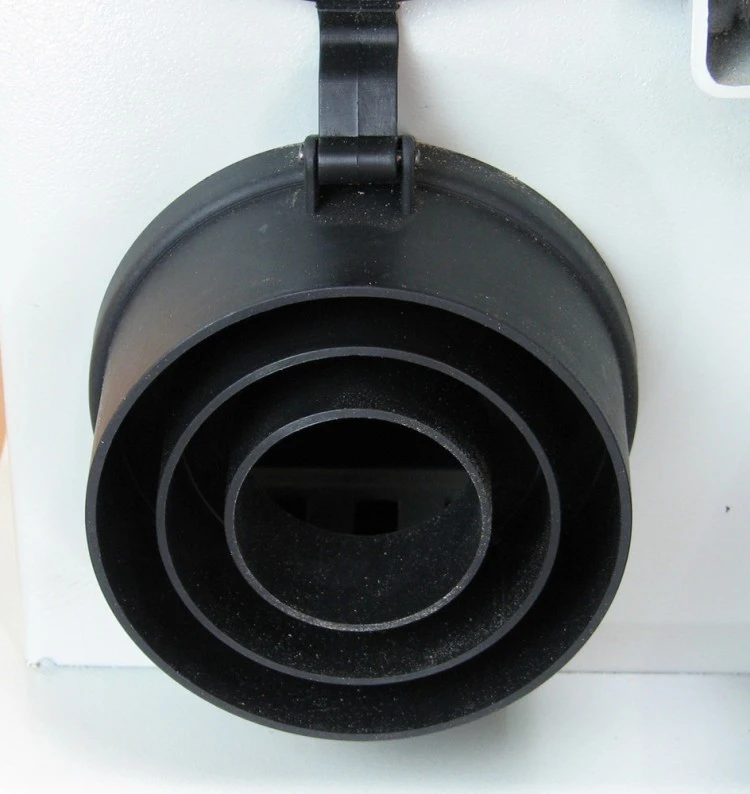

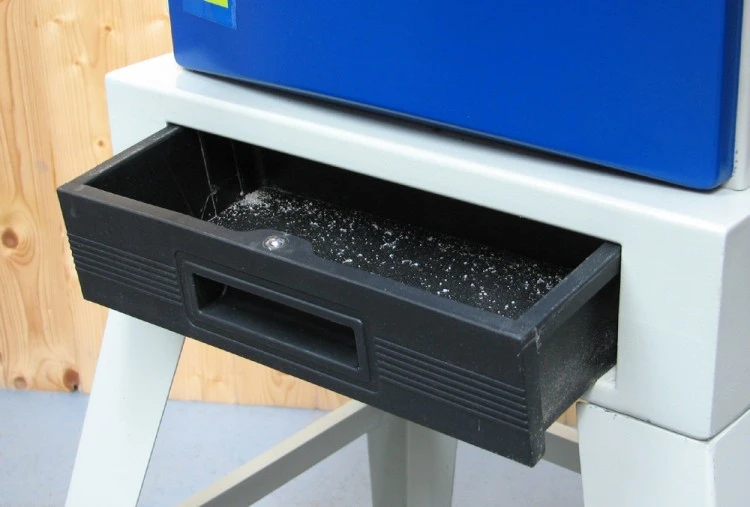

A dust extractor is also always recommended when using a bandsaw. The dust collection outlet has 3 rings which allow it to accept 3 sizes of hose, 50mm, 75mm & 100mm diameter making it also compatible with any type of extraction system. If extraction is not being used however, the bandsaw is fitted with an integral dust collection draw. Dust falling into the base of the machine will be collected here, allowing it to be quickly and easily emptied.



The primary use of this bandsaw is for woodworking and the blade supplied is suitable for cutting both hard and soft woods. The blade supplied can also cut Non-ferrous metals, Plastic and Acrylic. It is possible to use this bandsaw for cutting other materials, but only with a suitable blade fitted.
