Charnwood 1420V Specification
| Max. spindle length (without centres) | 500mm (20″) |
| Max. spindle length (with centres fitted) | 430mm (17″) |
| Distance over bed (Max. bowl diameter) | 350mm (14″) |
| Distance over tool rest (Max. spindle diameter) | 250mm (10″) |
| Tool rest length | 150mm (6″) |
| Tool rest stem diameter | 25mm |
| Motor (DC carbon brush) | 750w (1hp), 240v |
| Speed range | Low 250 – 1400rpm |
| Medium 400 – 2650rpm | |
| High 600 – 4300rpm | |
| Spindle thread size | M33 x 3.5 |
| Spindle tapers | MT2 |
| No. of indexing positions | 24 (every 15 degrees) |
| Hollow headstock diameter | 10mm |
| Hollow tailstock diameter | 8mm |
| Dimensions (WxDxH) | 950 x 370 x 500mm |
| Weight | 57kg |
| Rating | Hobby |
| Warranty | 5 year |
| EAN Barcode number | 5060486045891 |
Optional Floor stand Available.
- No Compromise on Quality
- The home of quality products.
- Shop with confidence, we guarantee quality.
- Safe Transactions, Happy Customers
Charnwood 1420V Heavy Duty Bench Lathe 14″ x 20″
The Charnwood 1420V Heavy Duty Bench Lathe is heavy duty bench lathe. It has been developed from the Charnwood best selling W824 midi Lathe.
Key Features
- Electronic Variable Speed Control
- Digital Speed Read Out
- Reverse Direction
- Powerful & Quiet 750w (1hp) Motor
- High Quality Drive and Tail Centres
- Cam Action Tool Rest Banjo
- Steel Tool Rest Bar
- Built In 24 Position Indexing
- Hollow head and tail stock
About Charnwood 1420V Heavy Duty Bench Lathe 14″ x 17″
With full cast iron construction and a bed width of 130mm, this bench lathe is incredibly stable and ready to tackle bowls up to 14″ in diameter.
The headstock spindle has an M33 x 3.5 thread, ready to accept most scroll chucks and accessories. The lathe is supplied with a 4 prong drive centre with a spring loaded central point and 2MT fitting. The headstock spindle is hollow for removing the centre using a knockout bar. A chrome finished hand wheel is provided for rotating the spindle by hand to check how the job is going.

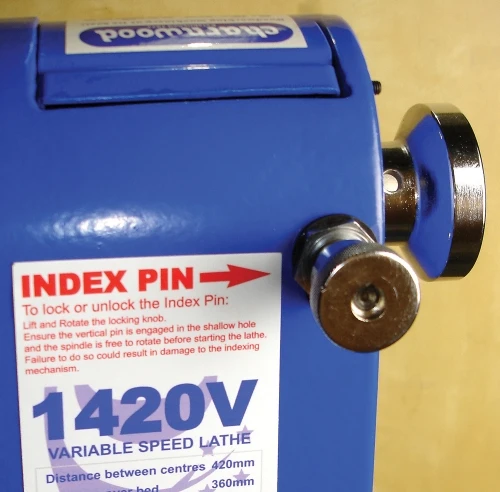

For decorating and finishing the headstock is also fitted with a 24 position indexing system to lock the spindle at intervals of 15 degrees around the circumference.
The tool rest banjo and the tailstock both slide effortlessly along the bed and are instantly locked in place with a large cam action lever with a soft foam grip.

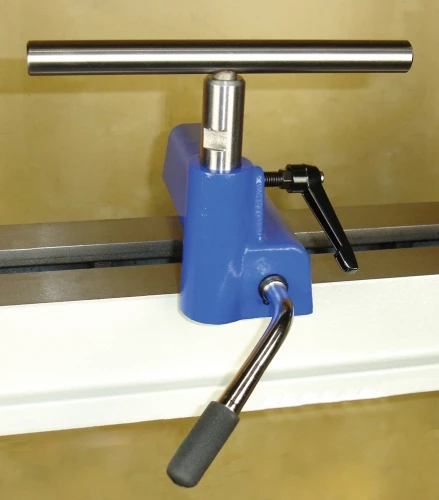

The tool rest is made from a hardened steel round bar 150mm (6″) in length. Optional lengths and shapes are available. The height is set using a metal ratchet handle.
The tailstock is fitted with one our 2MT heavy duty revolving centres with a 60 degree point. The quill is advanced via a chromed hand wheel with a travel length of 80mm, which is very useful when drilling down the middle of a blank. There is an engraved scale to measure the depth when drilling, the quill also has automatic ejection of centres when wound back to zero.

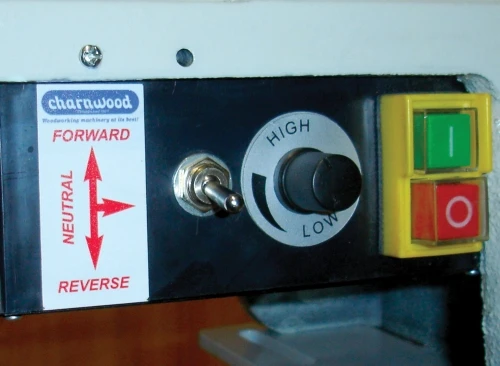

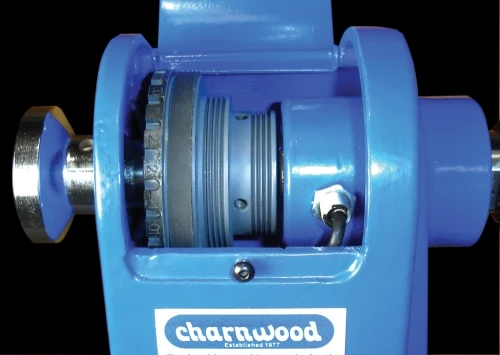

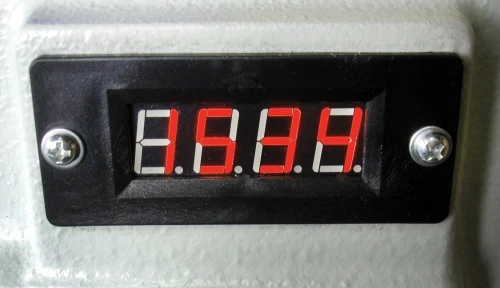

A powerful yet quiet DC motor turns the spindle, controlled by an electronic system to govern the speed. In low speed range the spindle can be run as low as 250rpm, still with enough torque to get the job done. The actual spindle speed is shown on a bright digital display. There are 3 speed ranges to choose from, quickly set by changing the drive belt onto a different pulley set. The spindle can also be run in reverse to allow better sanding on both bowls and spindles.
Supplied with 4 prong drive centre, revolving tail centre, 100mm diameter face plate, knock out bar, adjustable rubber feet, 1.9m power cable and UK 3 pin plug.
The Charnwood 1420V Heavy Duty Bench Lathe Supplied With:-
drive centre, tail centre, 100mm diameter faceplate, knock out bar, adjustable rubber feet, cable and plug.
